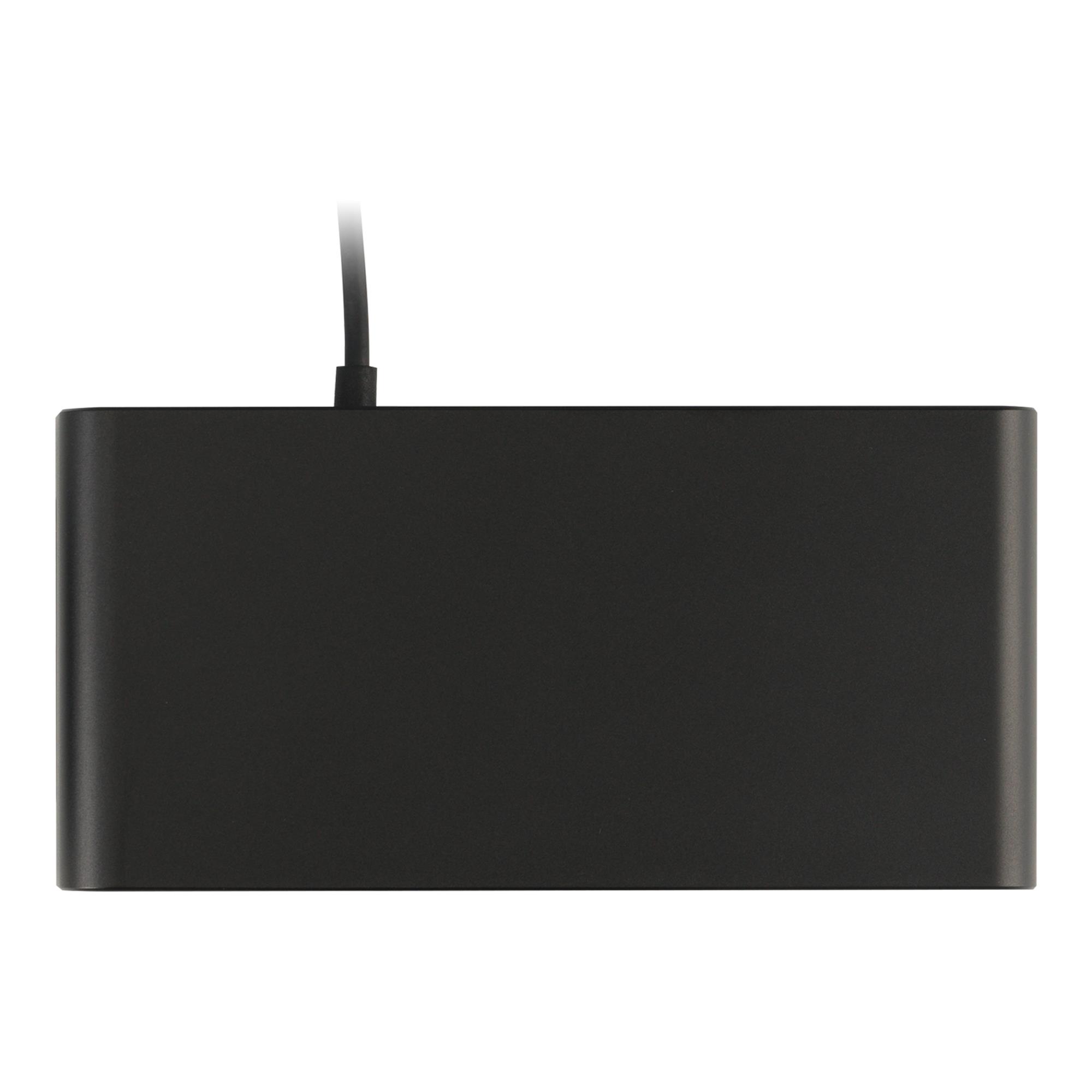

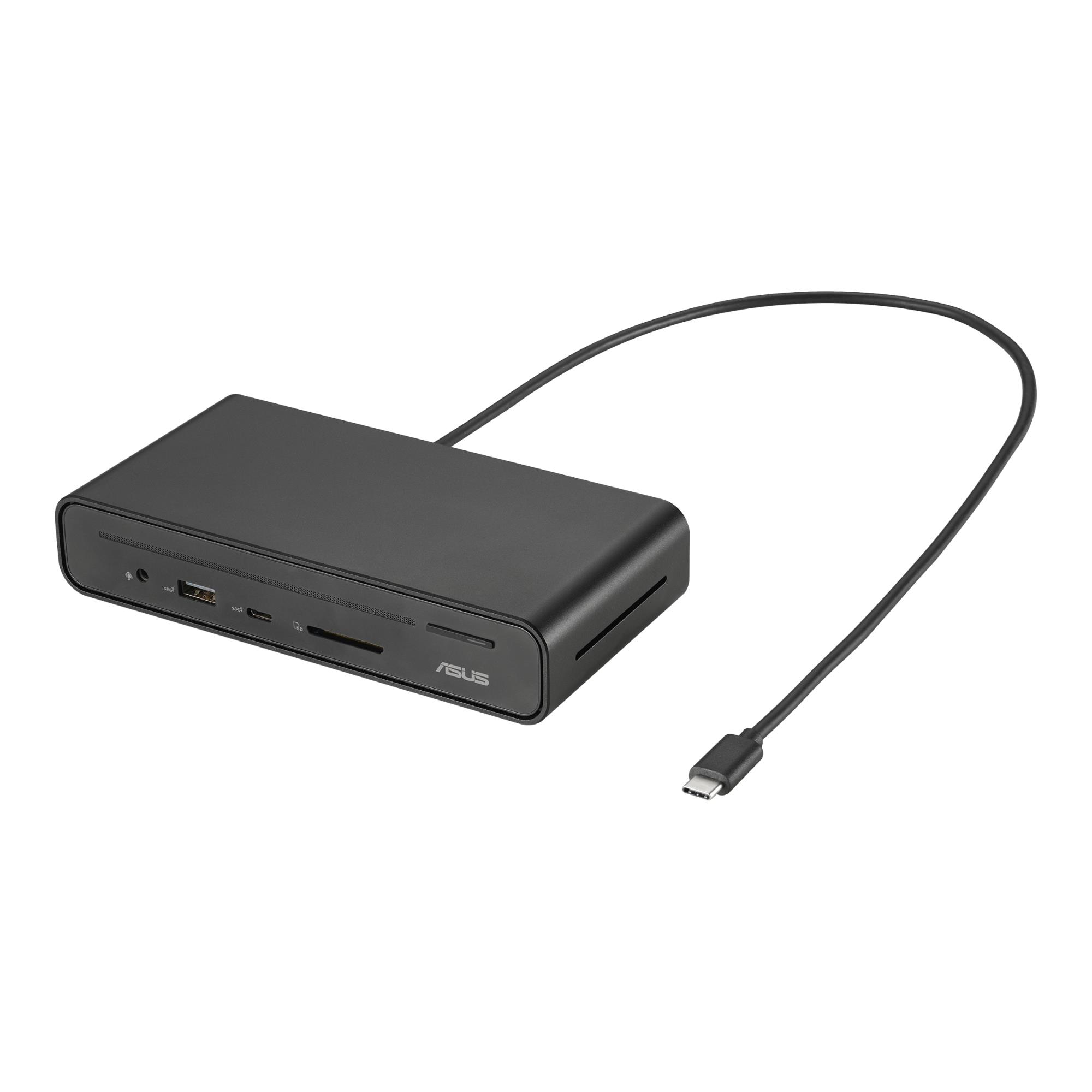

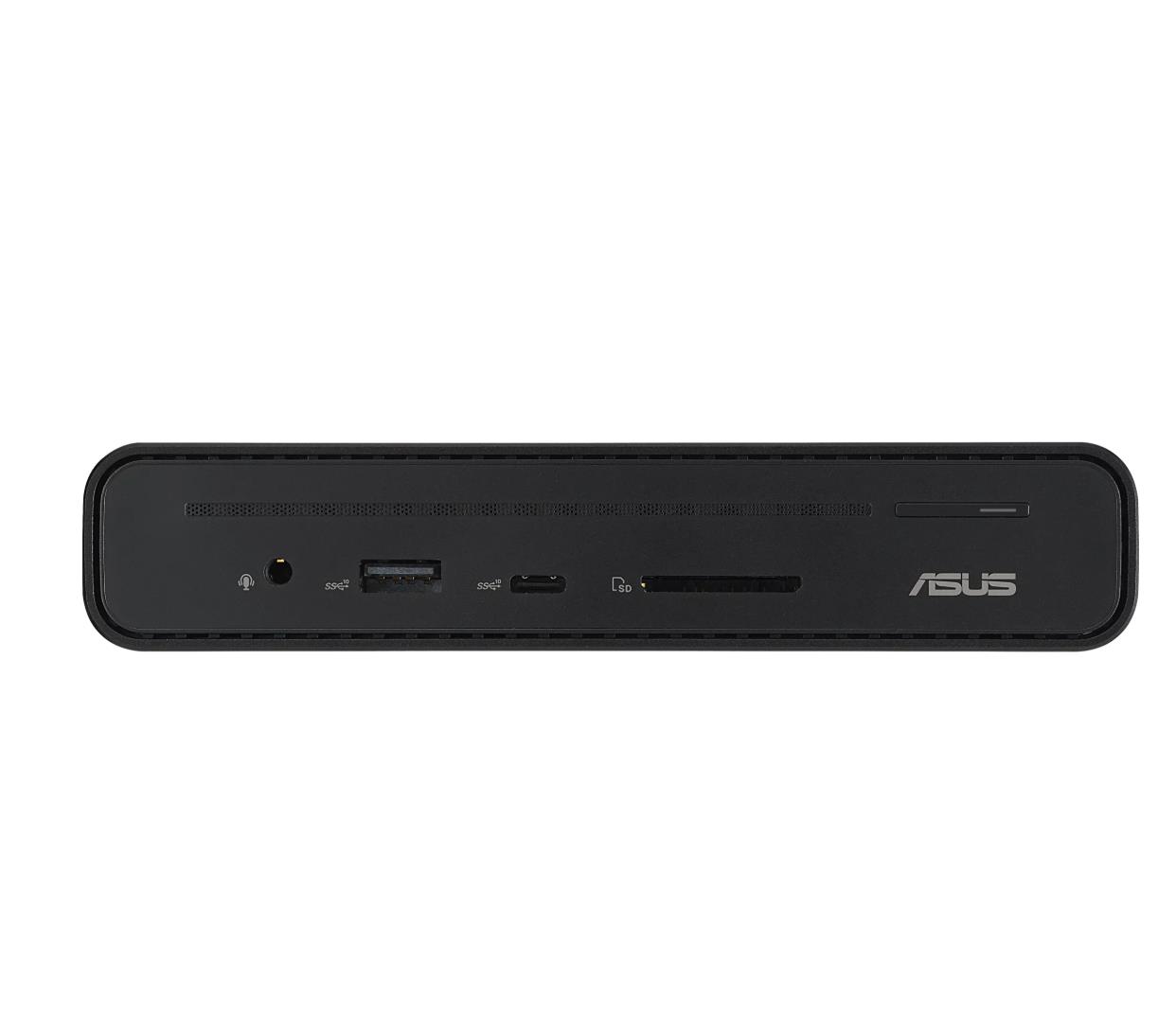

NB ACC DOCK DC300 TRIPLE DISPL/USB-C 90XB08CN-BDS010 ASUS

Long Description: ASUS Triple Display USB-C Dock DC300. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: DC, USB, Power supply: 150 W, Output voltage: 20 V. Windows operating systems supported: Windows 10

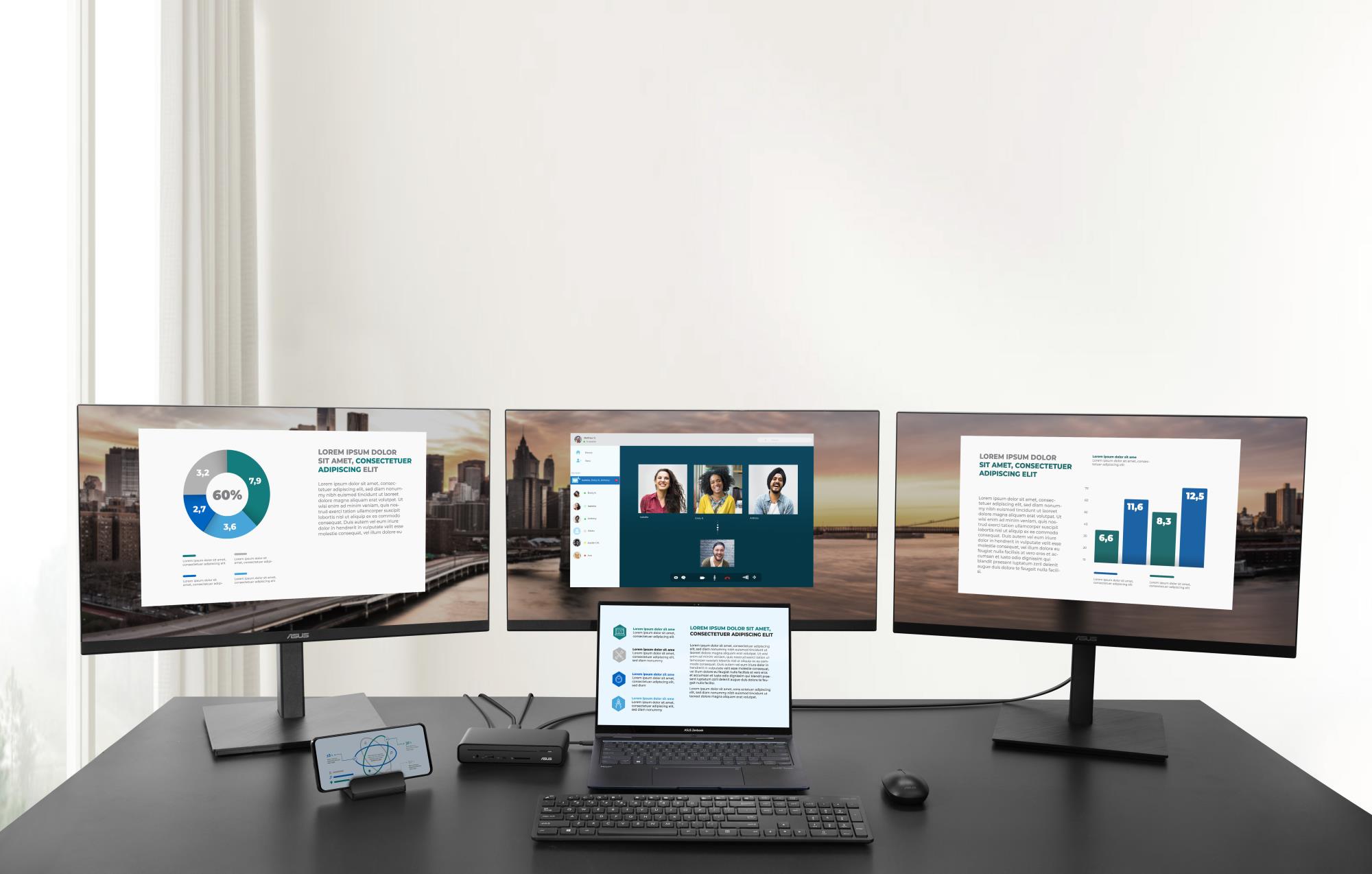

Disclaimer: ASUS Triple Display USB-C Dock DC300 support varies by the processor and graphics capabilities of the connected laptop. Please check specifications for full details.<br>Video output may vary by input signal. ASUS Triple Display USB-C Dock DC300 supports up to one 4K display for a laptop which supports DSC (Display Stream Compression). When the DSC (Display Stream Compression) standard of your device and monitor supports a compression ratio of 3:1, the dock supports a resolution of up to 4K@60Hz in dual display mode (USB-C® + HDMI™ 2.0 or USB-C® + DisplayPort 1.4) and supports up to 4K@30Hz in triple display mode.<br>ASUS Triple Display USB-C Dock DC300 is compatible with certain ASUS laptops as well as non-ASUS laptops. It works with laptops that support the industry-standard USB-C Alternate Mode or Thunderbolt protocols via the Type-C port.<br>Chart depicts expected transfer time for 4 GB of data. Real-world performance may vary.<br>ASUS Triple Display USB-C Dock DC300 supports additional features, such as MAC address passthrough, WOL, multiple display support and mirrored power button, on many ASUS laptops and displays. Some features may not be available on certain ASUS laptops, ASUS Chromebook, or non-ASUS laptops. Please find tech spec for compatible device.

Ethernet LAN: Yes

Ethernet LAN (RJ-45) ports: 1

Card reader integrated: Yes

Compatible memory cards: SD

Maximum digital resolution: 3840 x 2160 pixels

Maximum refresh rate: 60 Hz

Number of displays supported: 3

Cable lock slot: Yes

Cable lock slot type: Kensington

Power source type: DC,USB

Ethernet LAN data rates: 10/100/1000 Mbit/s

Product colour: Black

Power supply: 150 W

Output current: 7.5 A

Output voltage: 20 V

Connectivity technology: Docking

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2

USB Power Delivery (USB PD): Yes

USB Power Delivery up to: 90 W

HDMI ports quantity: 1

HDMI version: 2.0

Width: 160 mm

DisplayPorts quantity: 1

DisplayPort version: 1.4

Depth: 80 mm

Combo headphone/mic port: Yes

Warranty card: Yes

Quantity per pack: 1 pc(s)

Height: 32 mm

Windows operating systems supported: Windows 10

Weight: 514 g

DC-in jack: Yes

USB Type-C DisplayPort Alternate Mode: Yes

Mac operating systems supported: Yes

AC adapter included: Yes

Manual: Yes

Housing material: Metal/Plastic

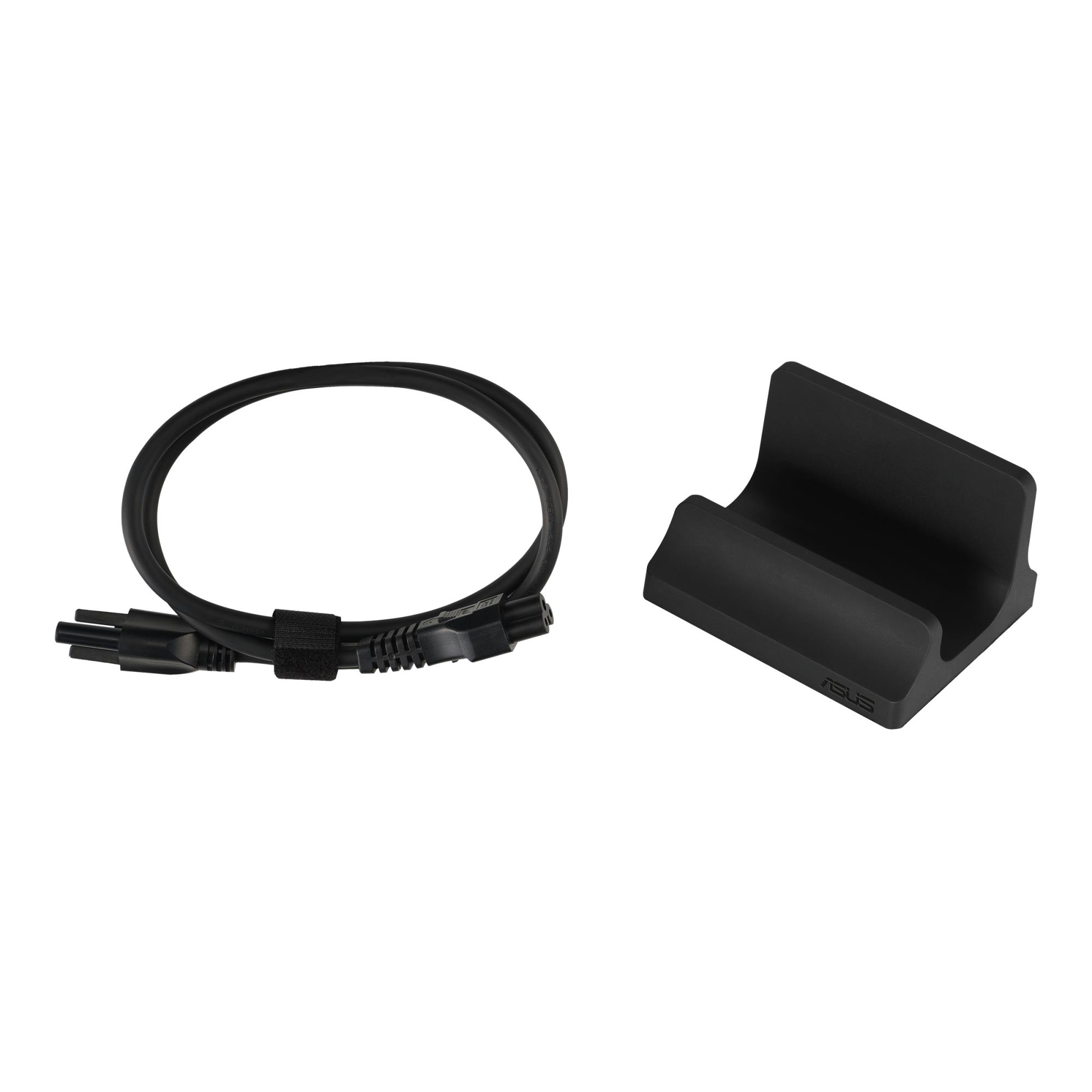

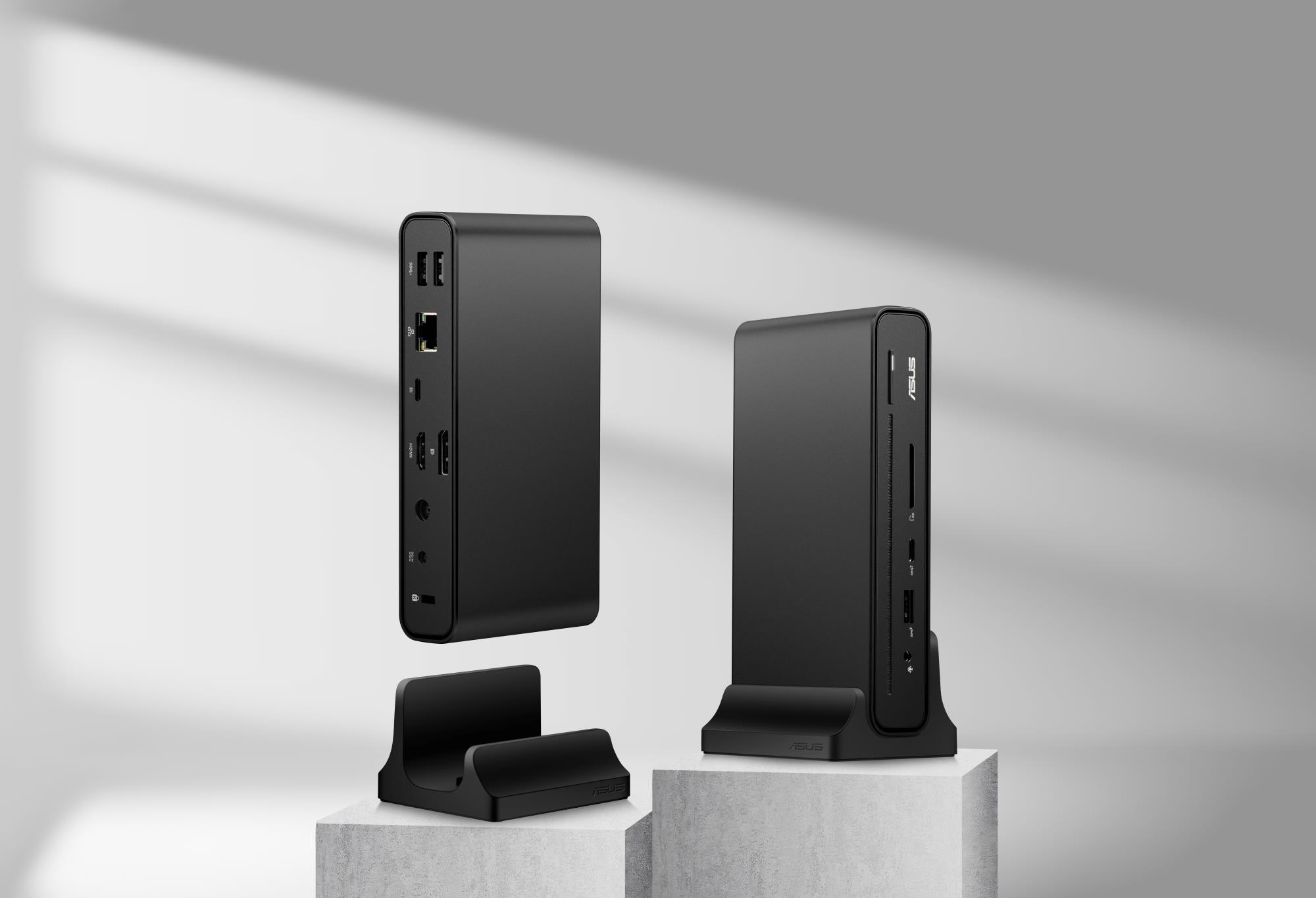

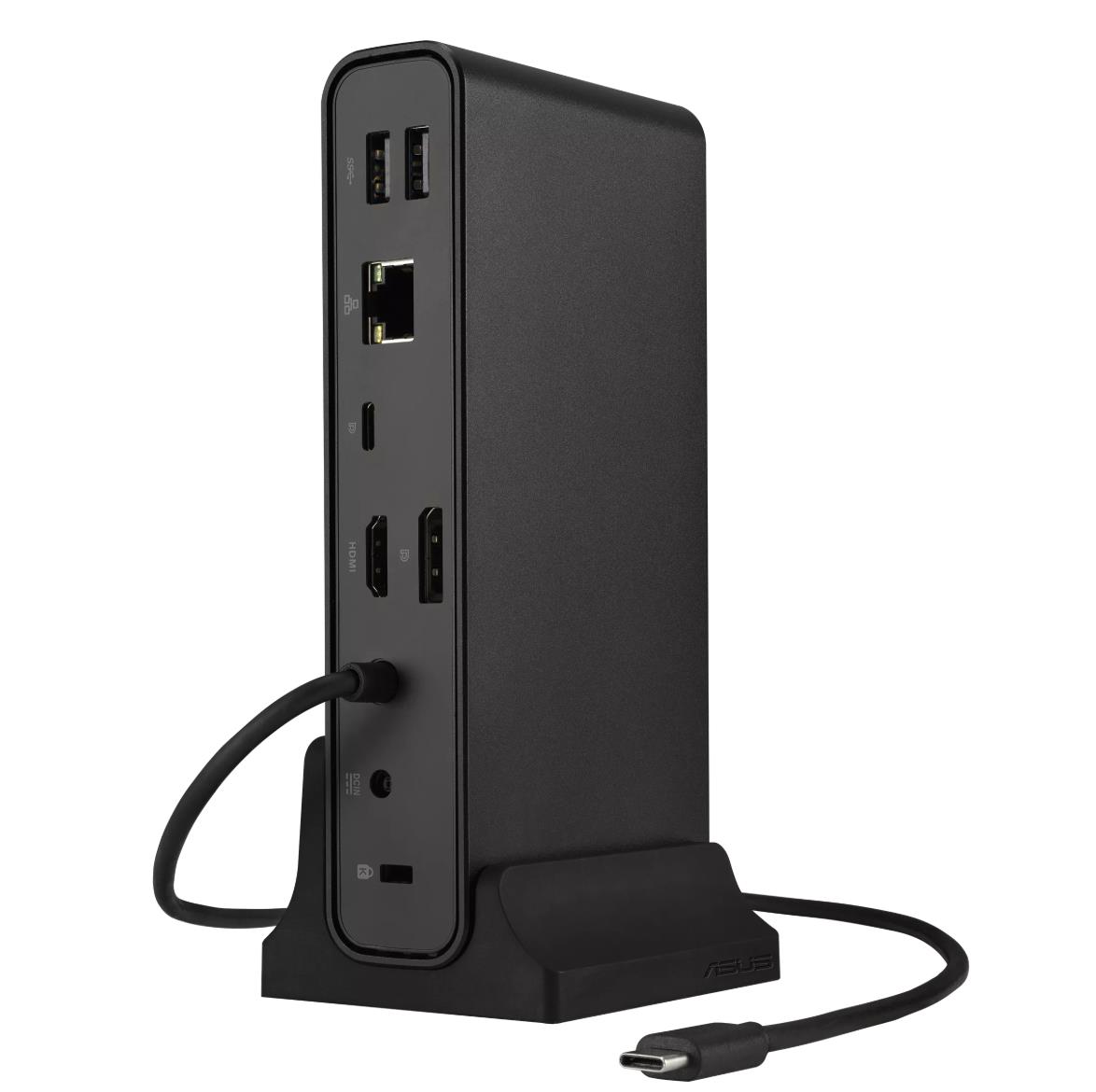

Stand included: Yes

Units per Pallet: 0

Unit Calculated Volume: 0.003663 cubm

Unit Calculated Weight: 1.48 kg
