MONITOR ACC DESK MOUNT 17-35"/DS70S-950WH2 NEOMOUNTS
SKU: DS70S-950WH2
€ 386.50
Pieejams : 2 gab.
2xNumber of displays supported
Maximum weight capacity (per display) 18 kg
Maximum weight capacity 18 kg
Maximum screen size 88.9 cm (35")
Mounting type Desk
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 100 x 100 mm
Height adjustment Yes
Tilt adjustment Yes
Swivelling Yes
Rotating Yes
Colour White
Weight 6.98 kg
-

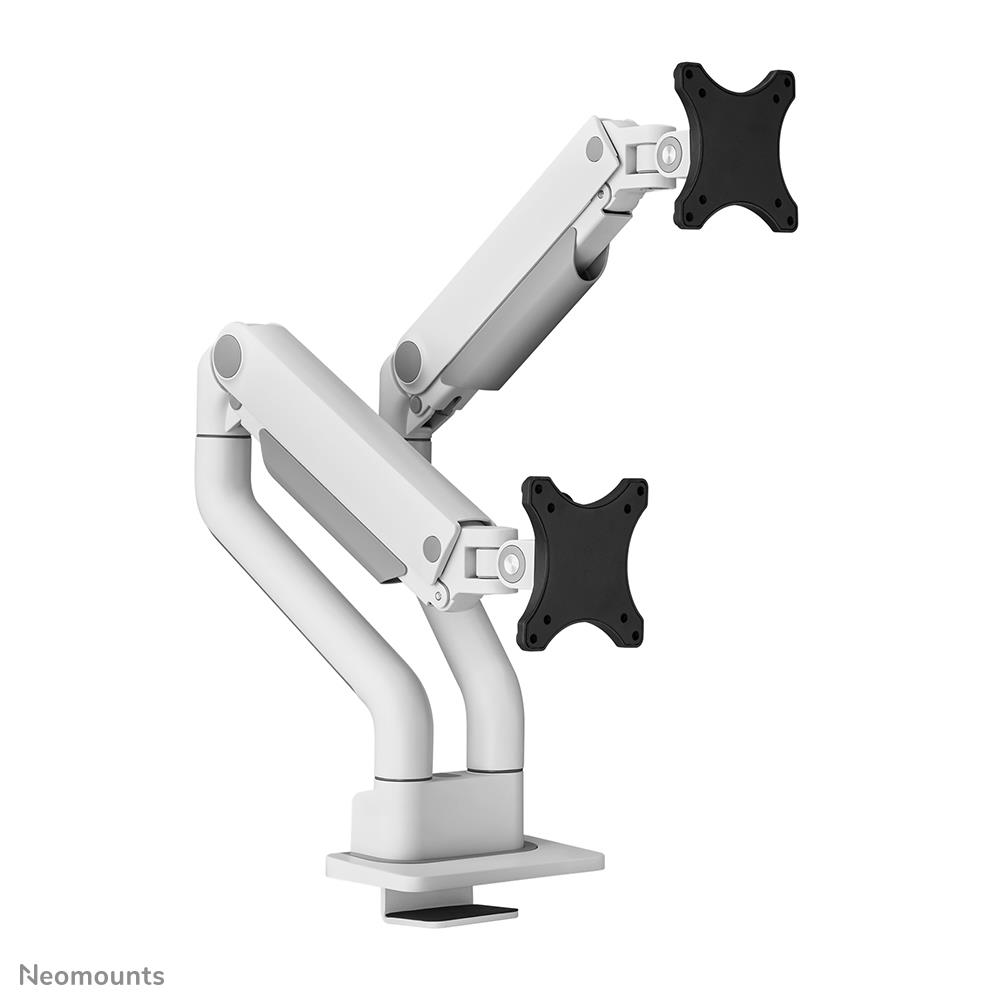

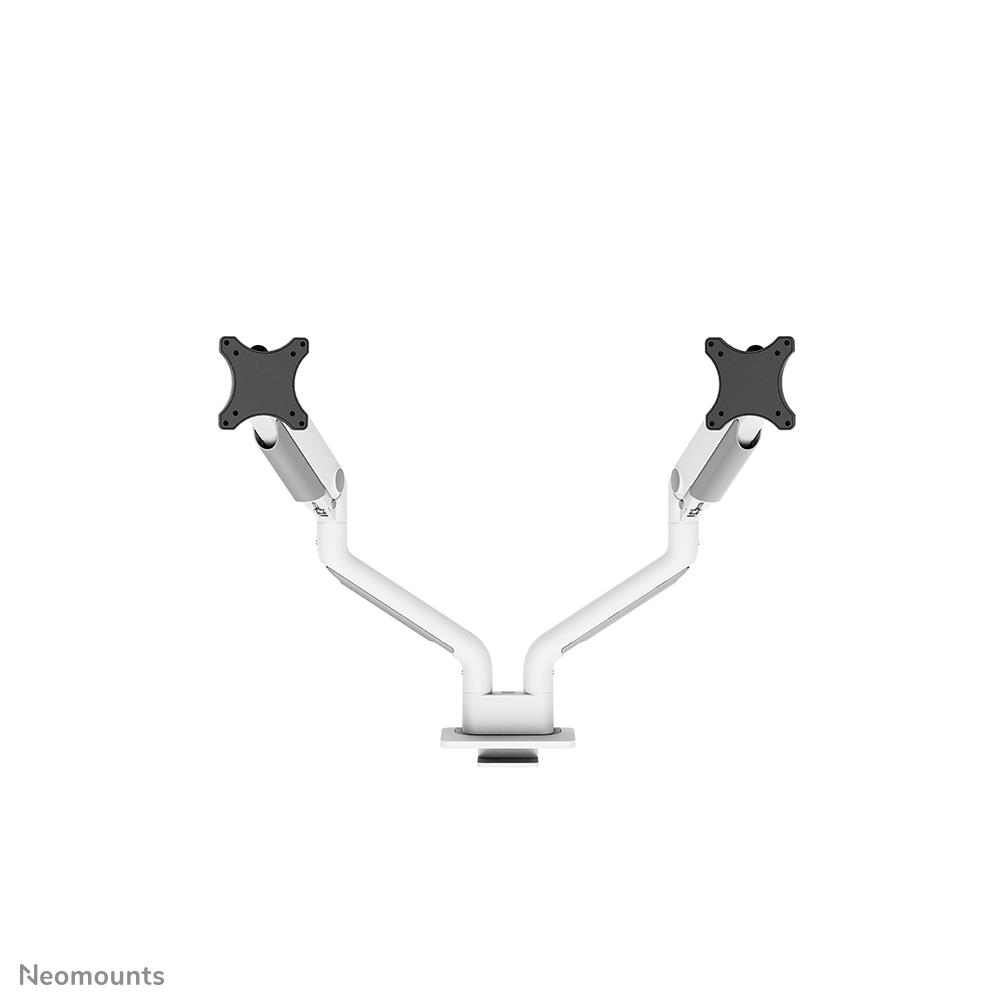

Summary: Neomounts DS70S-950WH2 Monitor arm 17-35" - gas spring - Topfix - 180°-stop. Mounting: Clamp/Grommet, Maximum weight capacity: 18 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 88.9 cm (35"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Swivel angle range: -90 - 90°, Tilt angle range: -90 - 90°. Product colour: White
-
Category Code: MAS
-
Unit Box Height: 0.15
-
Unit Box Length: 0.49
-
Unit Box Width: 0.245
-
Number of displays supported: 2
-
Maximum weight capacity (per display): 18 kg
-
Maximum weight capacity: 18 kg
-
Maximum weight capacity (per curved/ultra-wide display): 15 kg
-
Minimum screen size: 17 "
-
Maximum screen size: 35 "
-

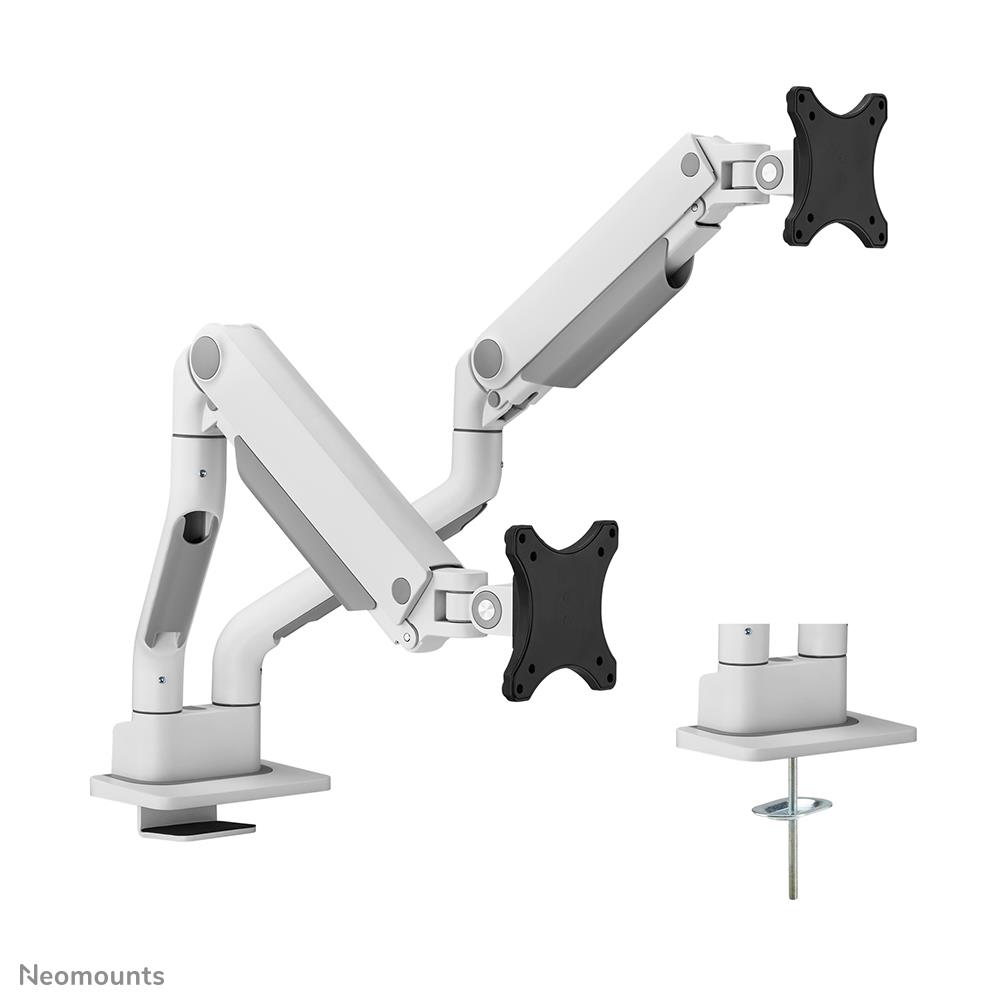

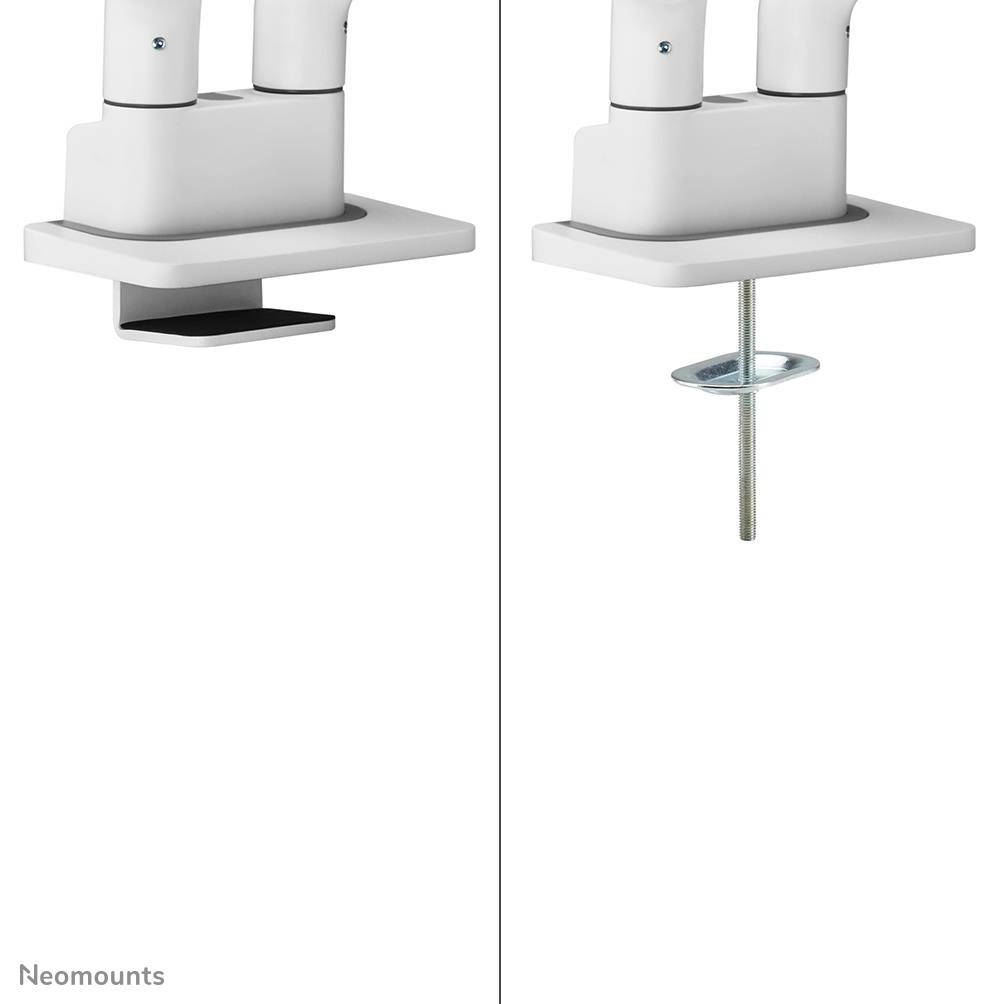

Mounting: Clamp/Grommet
-
Mounting type: Desk
-
Minimum VESA mount: 75 x 75 mm
-
Maximum VESA mount: 100 x 100 mm
-

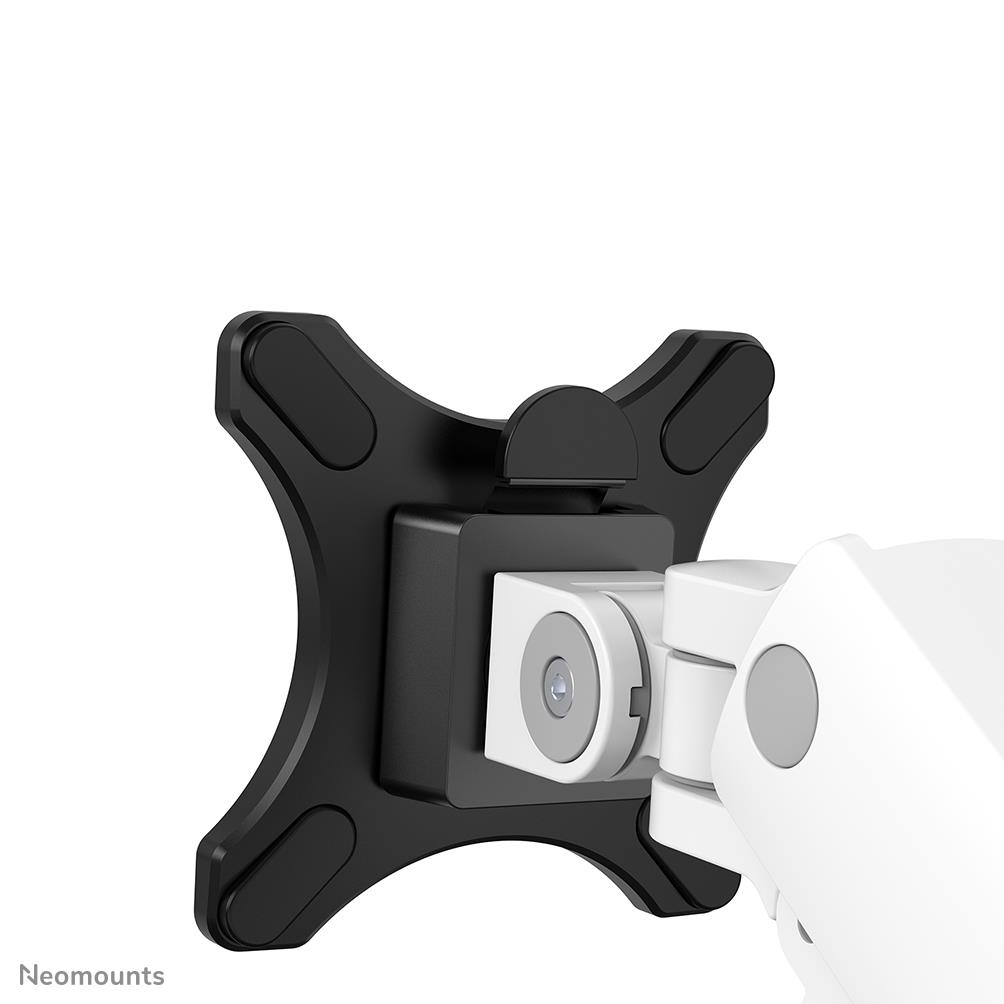

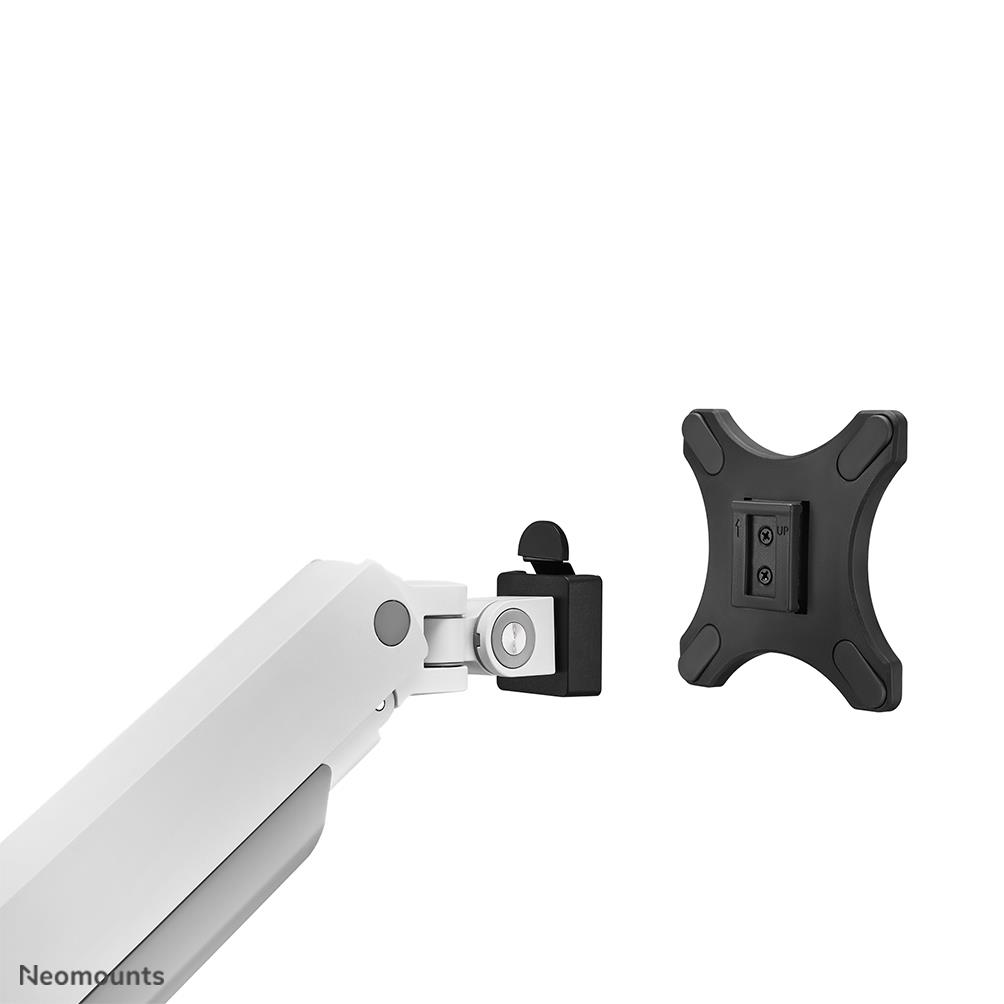

Panel mounting interface: 100 x 100/75 x 75 mm
-
Desk thickness (min): 10 mm
-
Desk thickness (max): 55 mm
-
Clamp mount desk thickness (max): 50 mm
-
Grommet mount desk thickness (max): 55 mm
-
Distance to the wall (min): 119 mm
-
Distance to the wall (max): 656 mm
-
Height adjustment: Yes
-
Height adjustment type: Gas spring
-

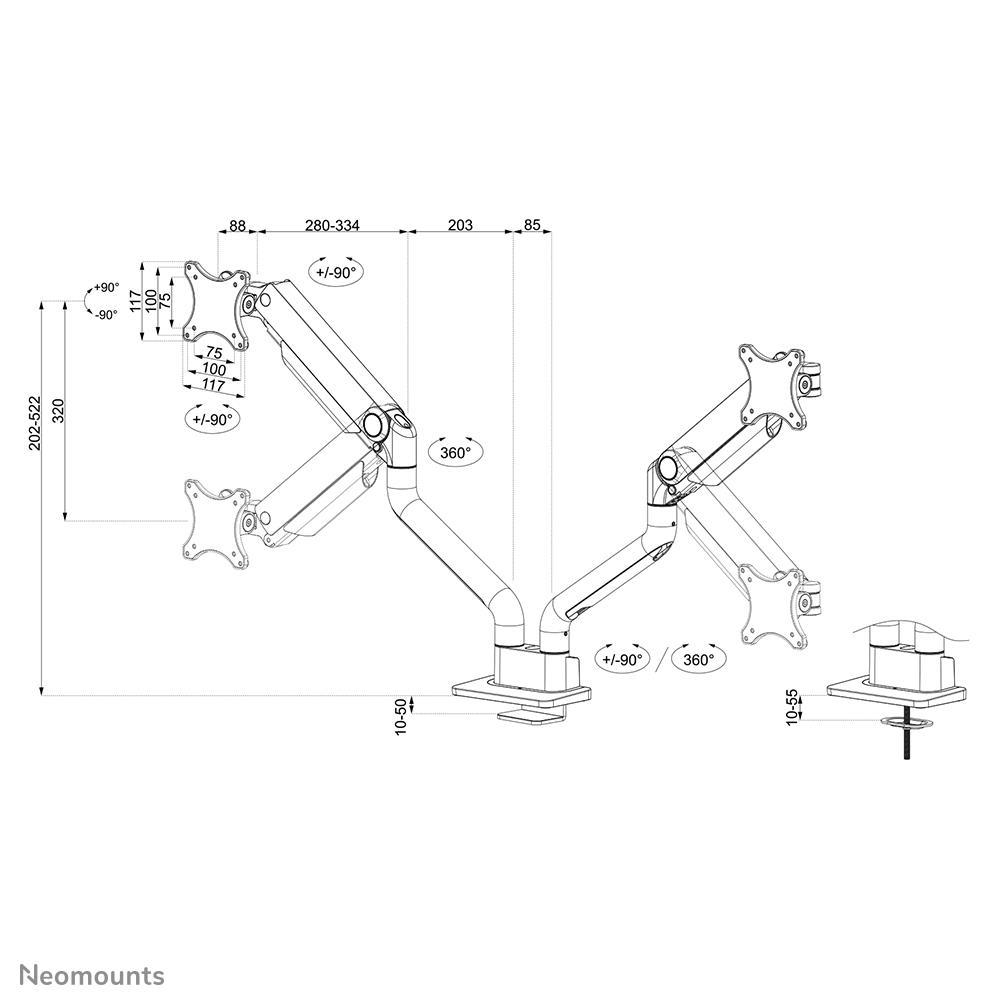

Height adjustment range: 202 - 522 mm
-
Adjustable depth: Yes
-
Depth adjustment range: 88 - 625 mm
-
Width adjustment: 1159 mm
-
Tilt adjustment: Yes
-
Tilt angle range: -90 - 90 °
-
Swivelling: Yes
-
Swivel angle range: -90 - 90 °
-
Rotating: Yes
-
Angle of rotation: 360 °
-
Pivot angle: -180 - 180 °
-
Number of arms: 2
-
Cable management: Yes
-
Housing material: Aluminium
-
Product colour: White
-
Easy to install: Yes
-
Width: 186 mm
-
Depth: 656 mm
-
Height: 579 mm
-
Weight: 6980 g
-
Package width: 410 mm
-
Package depth: 124 mm
-
Package height: 496 mm
-
Package net weight: 7900 g
-
Package weight: 7900 g
-
Package type: Box
-
Minimum weight: 1 kg
-
Warranty period: 10 year(s)
-
Width adjustment range: 0 - 1159 mm
-
Master (outer) case width: 260 mm
-
Master (outer) case length: 320 mm
-
Master (outer) case height: 505 mm
-
Master (outer) case gross weight: 16300 g
-
Products per master (outer) case: 2 pc(s)
-
Country of origin: China
-
Harmonized System (HS) code: 7616991099
-
Master (outer) case net weight: 14000 g
-
Products per pallet (EU): 48 pc(s)
-
Unit Calculated Weight: 8.05 kg
-
Product Net Weight: 7.5 kg
-
Unit Calculated Volume: 0.02122 cubm
-
Shipping Box Weight: 16.1 kg
-
Unit Width: 24.5 cm
-
Shipping Box Height: 32 cm
-
Unit Depth: 49 cm
-
Shipping Box Depth: 51 cm
-
Unit Height: 15 cm
-
Shipping Box Width: 26 cm
-
Name: MONITOR ACC DESK MOUNT 17-35"/DS70S-950WH2 NEOMOUNTS
