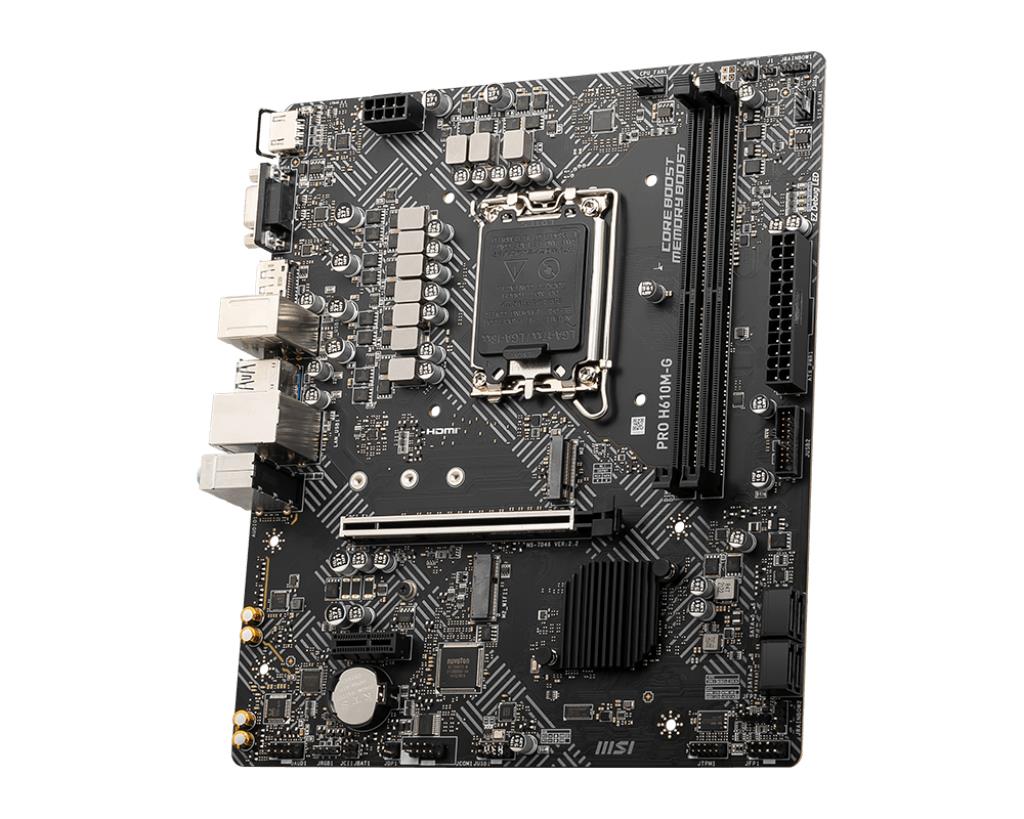

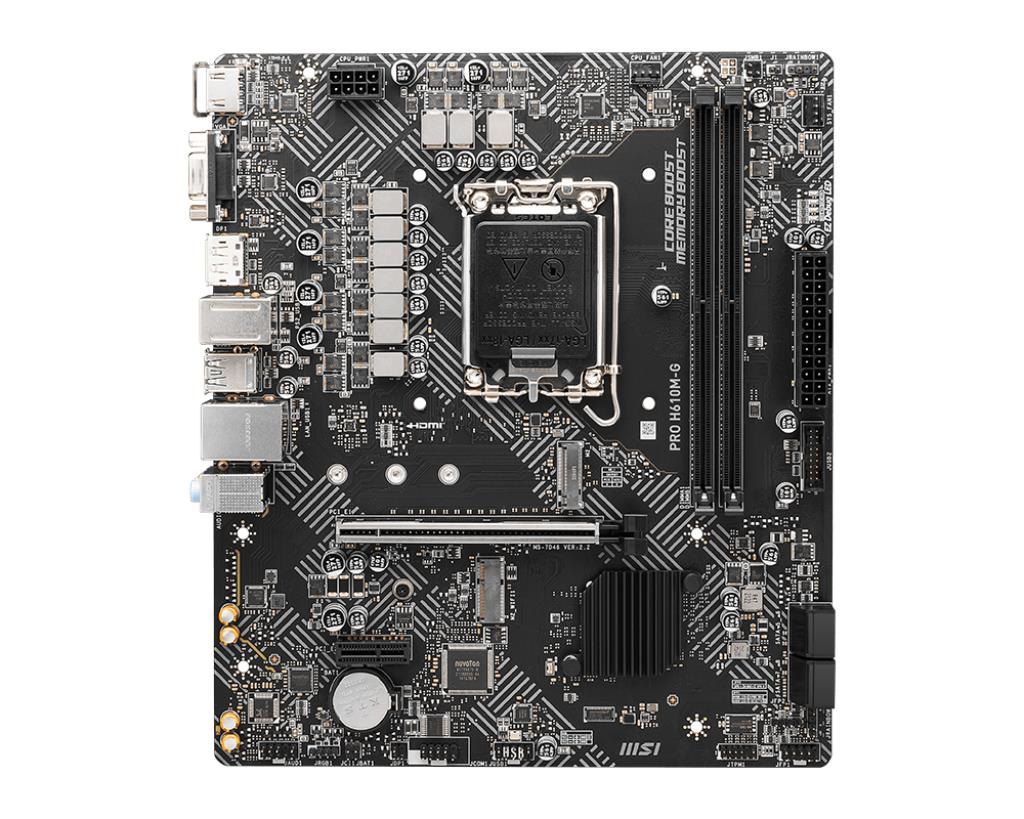

Mainboard|MSI|PRO H610M-G|Intel H610|LGA 1700|micro ATX|RAM DDR5-SDRAM|2xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber of M.2 (M) slots|PROH610M-G
SKU: PRO H610M-G
€ 98.71
Pieejams : 30 gab.
Intel H610
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel® Core™ i9
Supported memory types DDR5-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4xUSB 2.0 ports quantity
2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
-
Summary: MSI PRO H610M-G. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.26
-
Unit Box Width: 0.26
-
Audio chip: Realtek ALC897
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Motherboard chipset: Intel H610
-
Motherboard chipset family: Intel
-
Motherboard form factor: Micro ATX
-
Product colour: Black
-
Windows operating systems supported: Windows 10/Windows 11
-
Compatible processor series: Intel® Core™ i9
-
Processor manufacturer: Intel
-
Processor socket: LGA 1700
-
Supported processor sockets: LGA 1700
-
ECC сompatibility: Non-ECC
-
Maximum internal memory: 96 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 2
-
Supported memory clock speed (max): 5600 MHz
-
Supported memory clock speeds: 5600 MHz
-
Supported memory types: DDR5-SDRAM
-
Supported storage drive interfaces: M.2,SATA III
-
Supported storage drive types: SSD
-
On-board graphics card: No
-
Parallel processing technology support: Not supported
-
12V power connector: Yes
-
ATX Power connector (24-pin): Yes
-
CPU fan connector: Yes
-
Front panel audio connector: Yes
-
Number of SATA III connectors: 4
-
TPM connector: Yes
-
USB 2.0 connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-
DisplayPort version: 1.4
-
DisplayPorts quantity: 1
-
Ethernet LAN (RJ-45) ports: 1
-
HDMI ports quantity: 1
-
HDMI version: 2.1
-
USB 2.0 ports quantity: 4
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
-
VGA (D-Sub) ports quantity: 1
-
Ethernet interface type: Gigabit Ethernet
-
Ethernet LAN: Yes
-
Wi-Fi: No
-
Number of M.2 (M) slots: 1
-
PCI Express x1 slots: 1
-
PCI Express x16 slots: 1
-
ACPI version: 6.4
-
BIOS memory size: 256 Mbit
-
BIOS type: UEFI AMI
-
System Management BIOS (SMBIOS) version: 3.4
-
Depth: 243.84 mm
-
Width: 211 mm
-
Cables included: SATA
-
Drivers included: Yes
-
Model: PRO H610M-G
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.003718 cubm
-
Unit Calculated Weight: 0.73 kg
