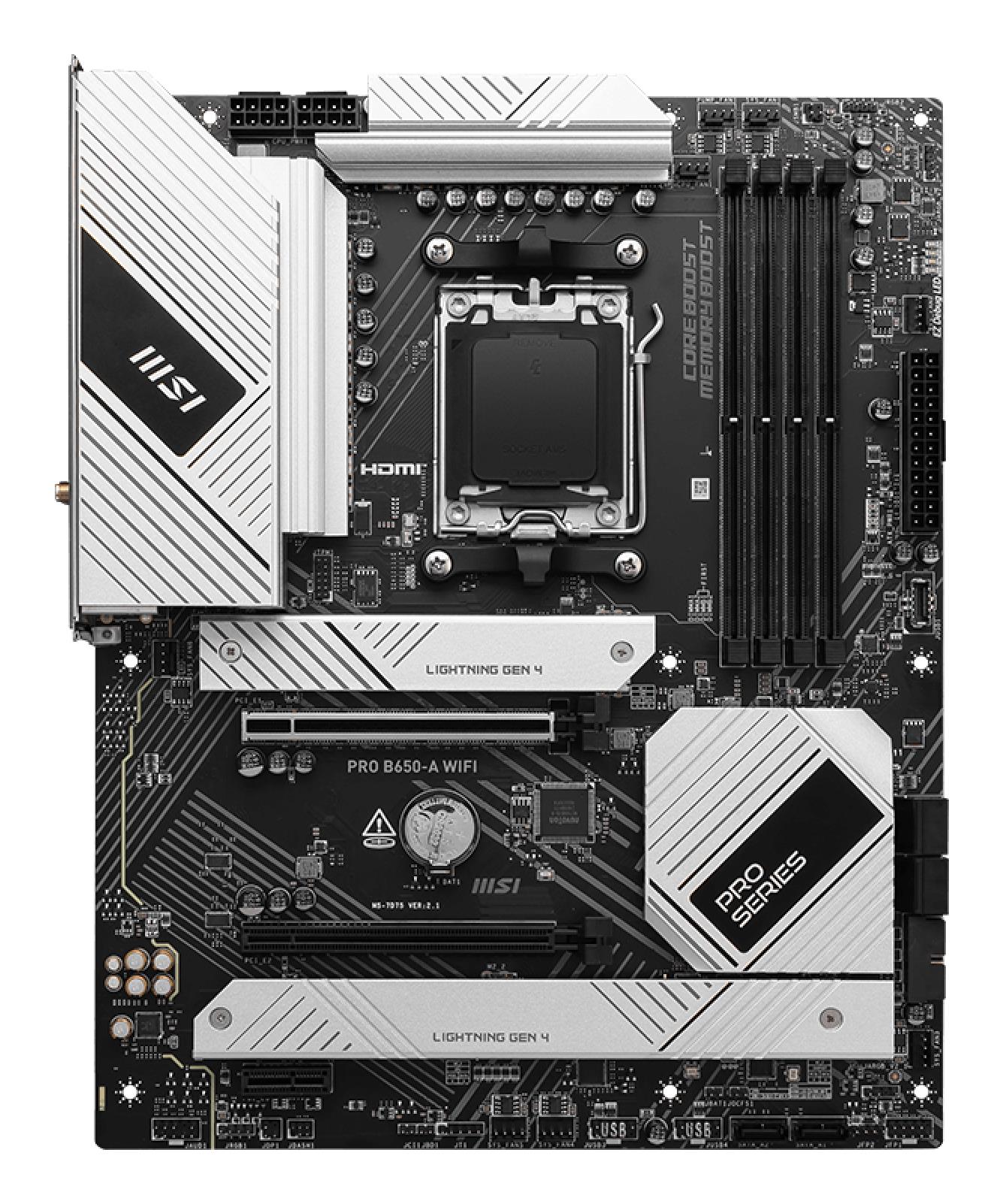

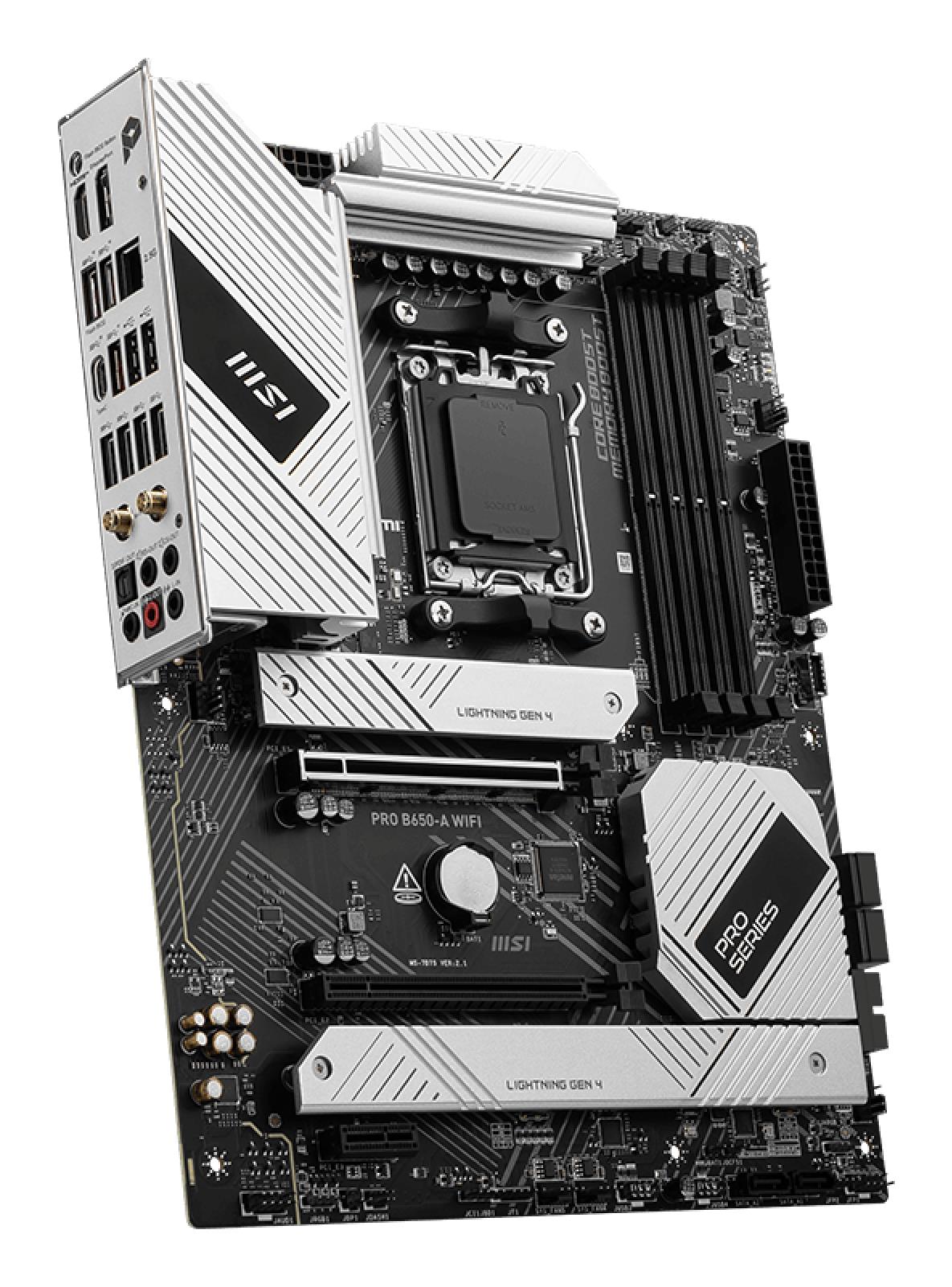

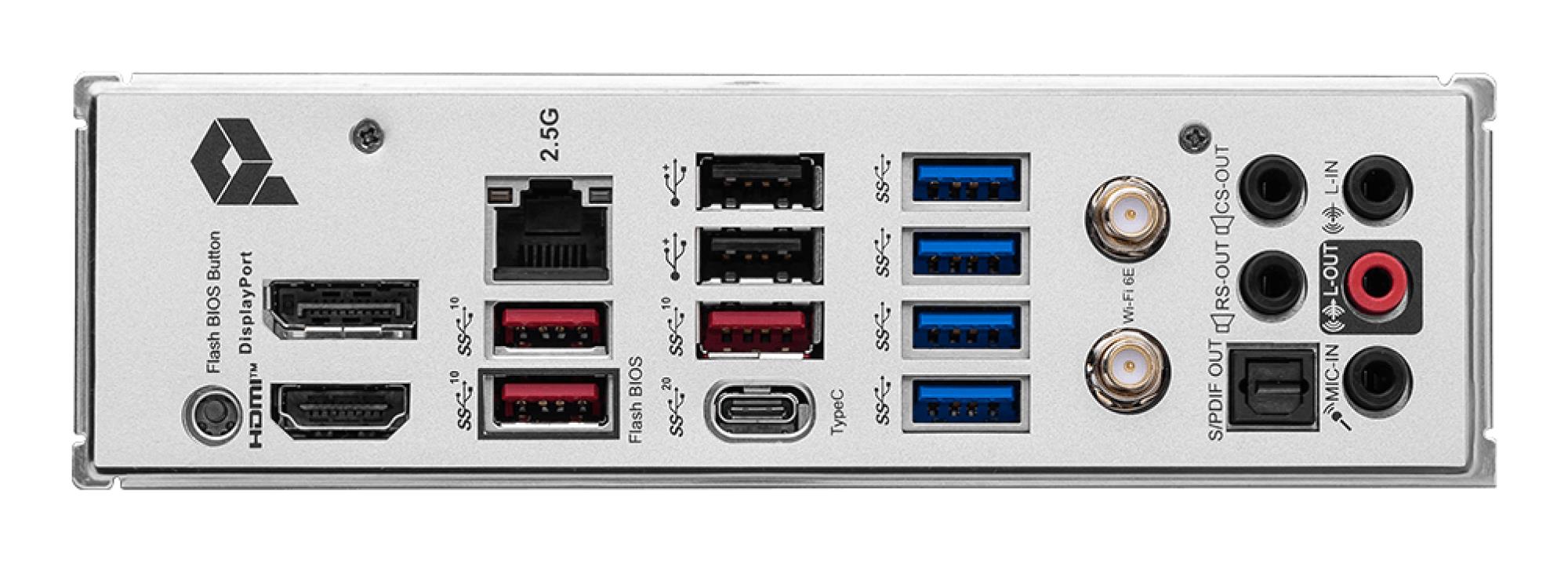

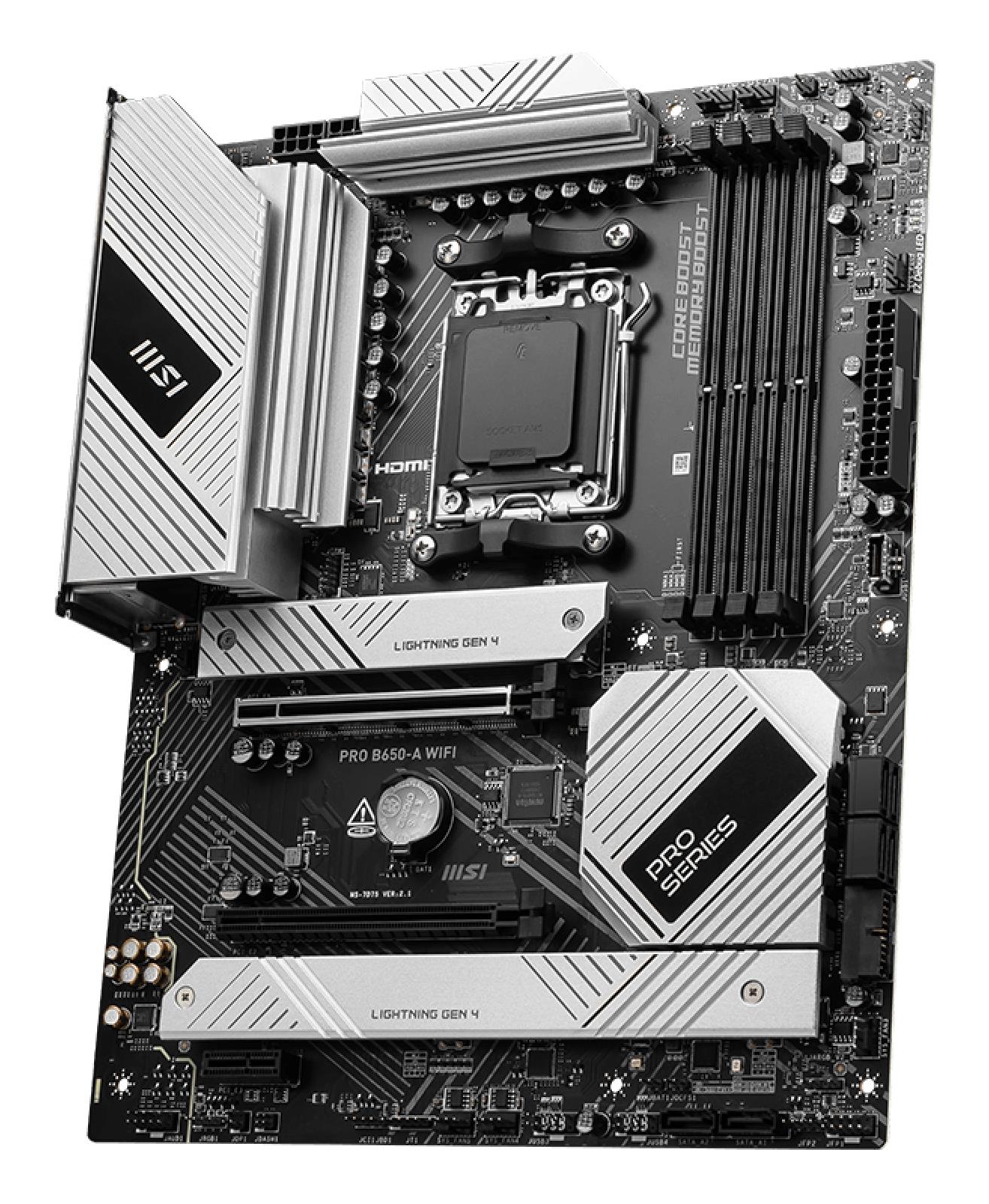

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|PROB650-AWIFI
SKU: PRO B650-A WIFI
€ 167.16
Pieejams : 17 gab.
AMD B650
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Supported storage drive interfaces M.2,PCI Express
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
-
Category Code: MBA
-
Unit Box Height: 0.07
-
Unit Box Length: 0.345
-
Unit Box Width: 0.27
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 2x: 1
-
PCI-Express 4.0 16x: 1
-
M.2: 3
-
HDMI: 1
-
DisplayPort: 1
-
USB 2.0: 2
-
USB 3.2: 7
-
USB-C: 1
-
Optical S/PDIF: 1
-
RJ45: 1
-
Audio port: 3
-
SATA: Yes
-
Bluetooth: Yes
-
WiFi: Yes
-
Model: PRO B650-A WIFI
-
Chipset: AMD B650
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC4080
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
-
TPM: Header
-
Unit Calculated Volume: 0.008375 cubm
-
Product Net Weight: 0.8 kg
-
Unit Calculated Weight: 2 kg
-
Manufacturer: MSI
