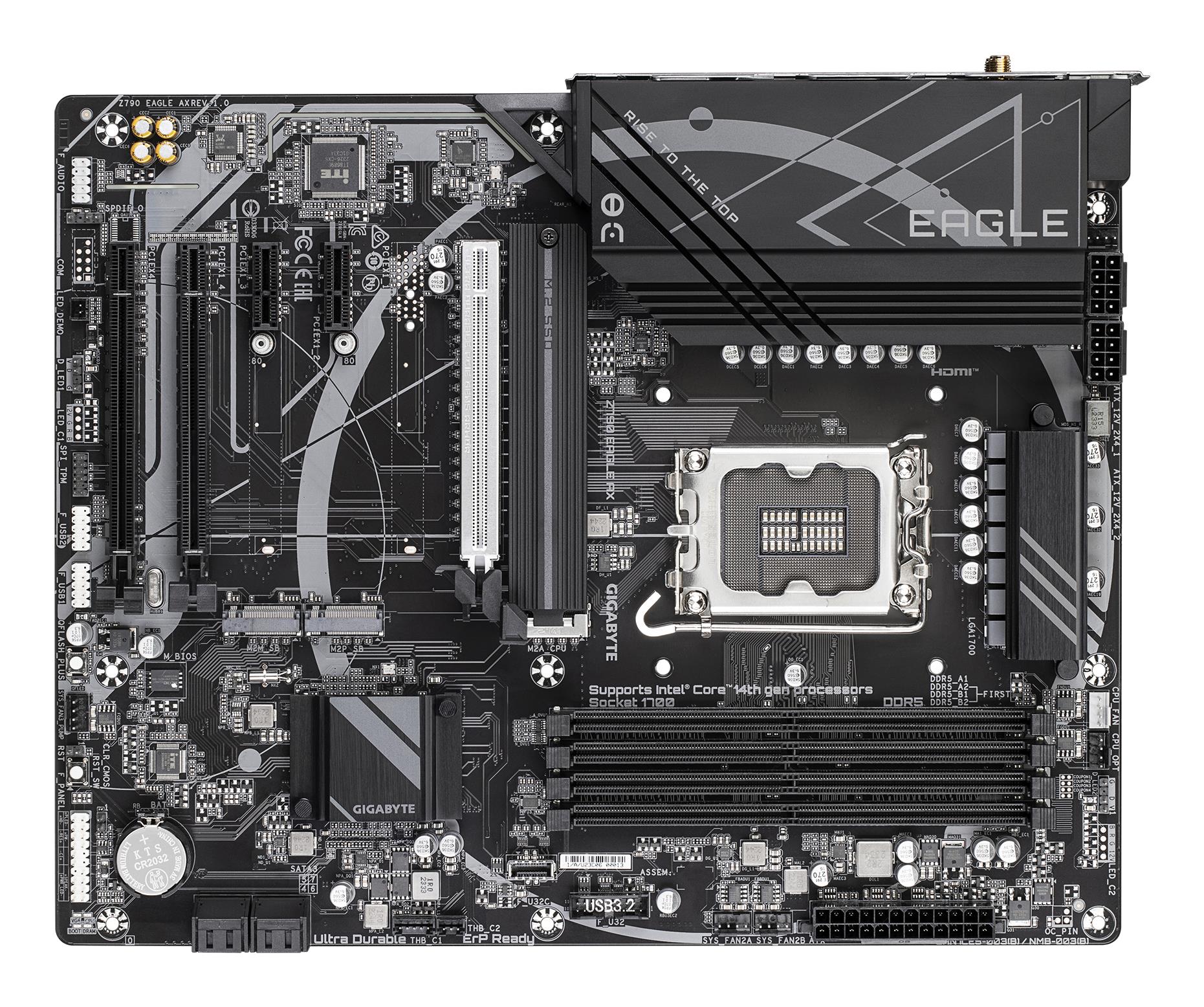

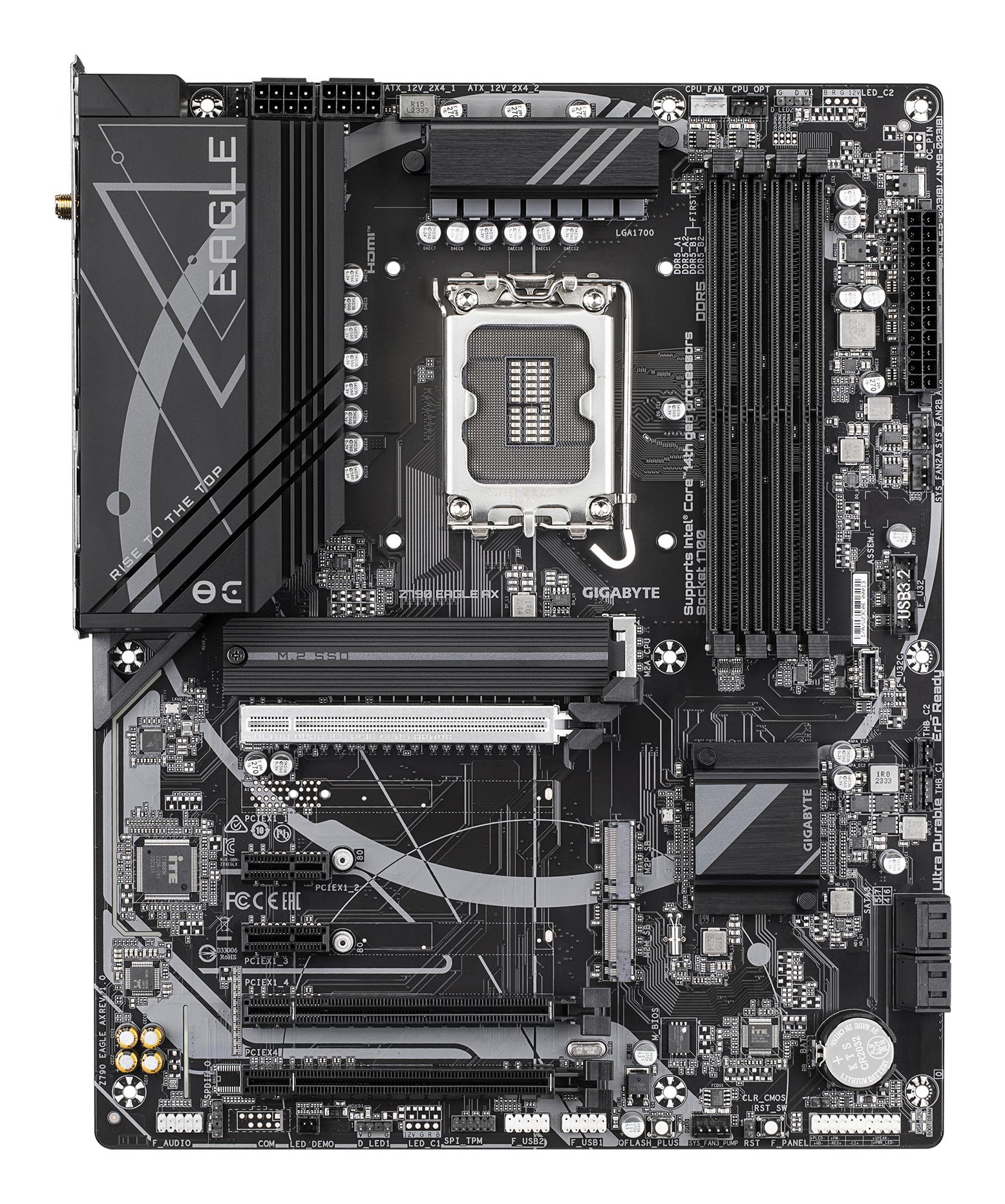

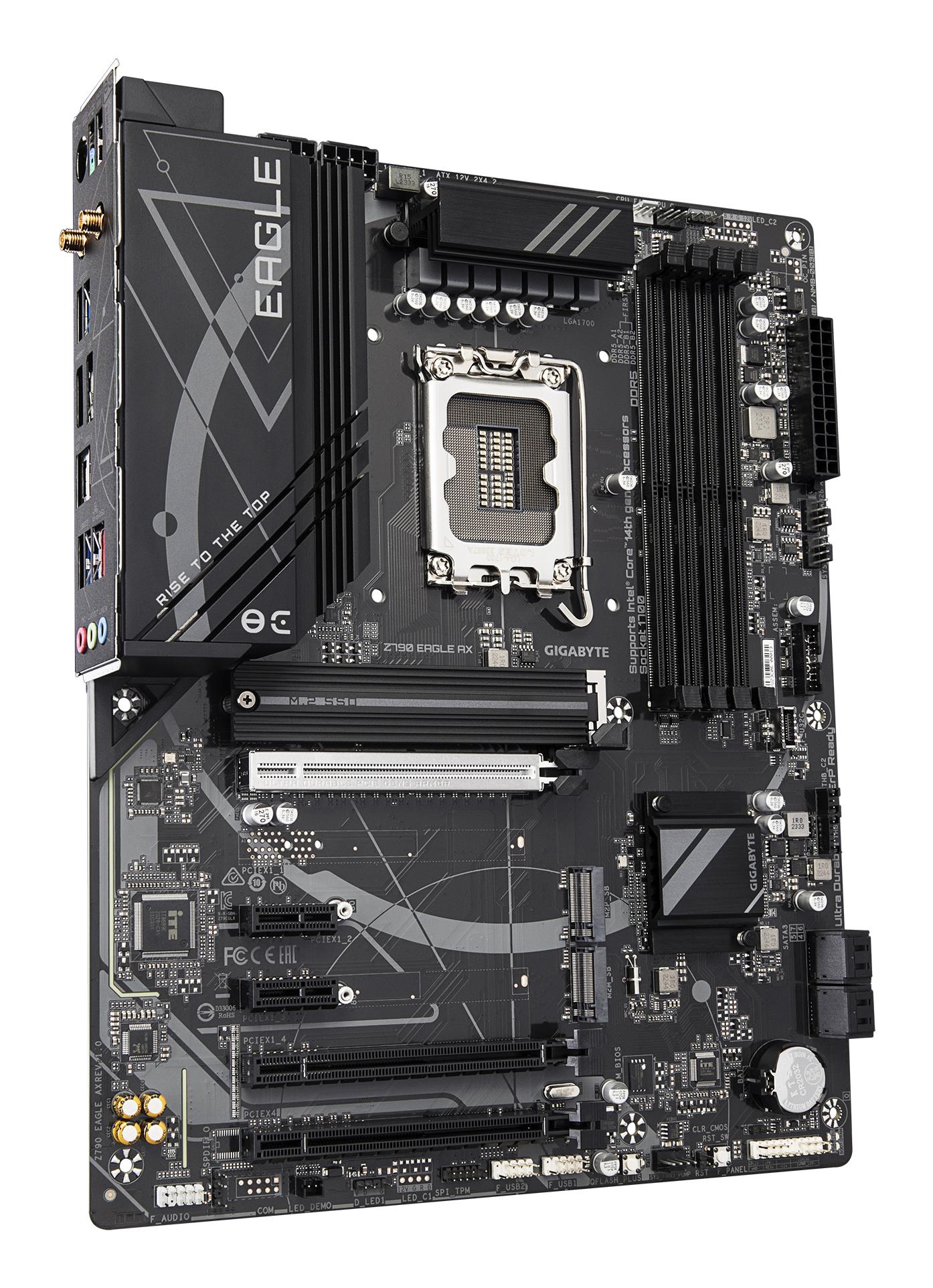

Mainboard|GIGABYTE|Intel Z790|LGA1700|ATX|Memory DDR5|Memory slots 4|Z790EAGLEAX1.1

Summary: GIGABYTE Z790 EAGLE AX Motherboard - Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C

Category Code: MBI

Unit Box Height: 0.08

Unit Box Length: 0.27

Unit Box Width: 0.34

Compatible processor series: Intel Celeron/Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9/Intel Pentium Gold

Maximum internal memory supported by processor: 192 GB

Maximum number of SMP processors: 1

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC ?ompatibility: ECC & non-ECC

Maximum internal memory: 192 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 7600 MHz

Supported memory clock speeds: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 MHz

Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0/1/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

Discrete graphics support: Yes

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

On-board graphics card: No

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of EATX power connectors: 2

Number of SATA III connectors: 4

RGB LED pin header: Yes

Thunderbolt headers: 2

Total number of SATA connectors: 4

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

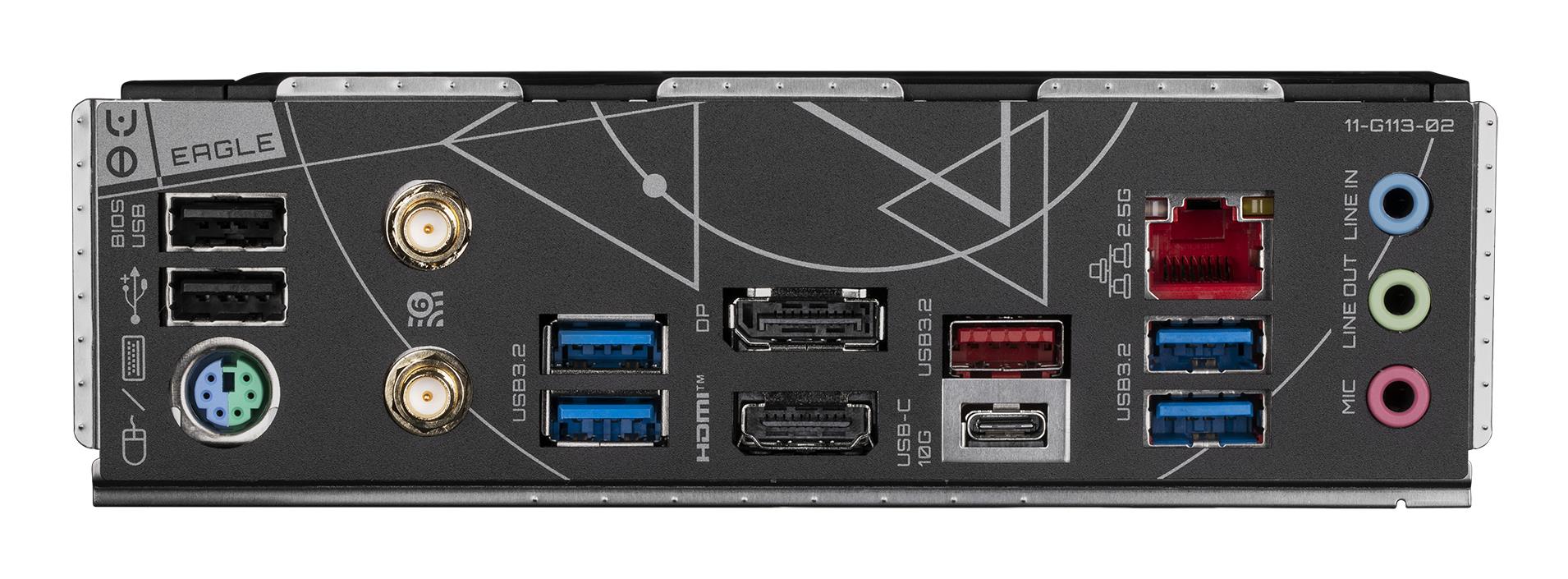

DisplayPort version: 1.2

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Microphone in: Yes

PS/2 ports quantity: 1

S/PDIF out port: Yes

USB 2.0 ports quantity: 2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

USB 3.2 Gen 2x2 Type-C ports quantity: 1

USB connector type: USB Type-A/USB Type-C

WiFi-AP antenna jack: 2

Bluetooth: Yes

Bluetooth version: 5.3

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

WLAN controller model: Intel Wi-Fi 6E AX211

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: Intel Z790 Express

Motherboard chipset family: Intel

Motherboard form factor: ATX

PC health monitoring: FAN/Temperature/Voltage/Water cooling

Power source type: ATX

Product colour: Brown

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Number of M.2 (M) slots: 3

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 3.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

PCI Express x16 (Gen 5.x) slots: 1

ACPI version: 5.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS button: Yes

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Country of origin: China

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 270 mm

Package height: 80 mm

Package weight: 1807.5 g

Package width: 335 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Antenna included: Yes

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Cables included: SATA

Warranty period: 3 year(s)

Model: Z790 EAGLE AX 1.1

Units per Pallet: 0

Unit Calculated Volume: 0.009969 cubm

Product Net Weight: 0.7 kg

Unit Calculated Weight: 1.88 kg
