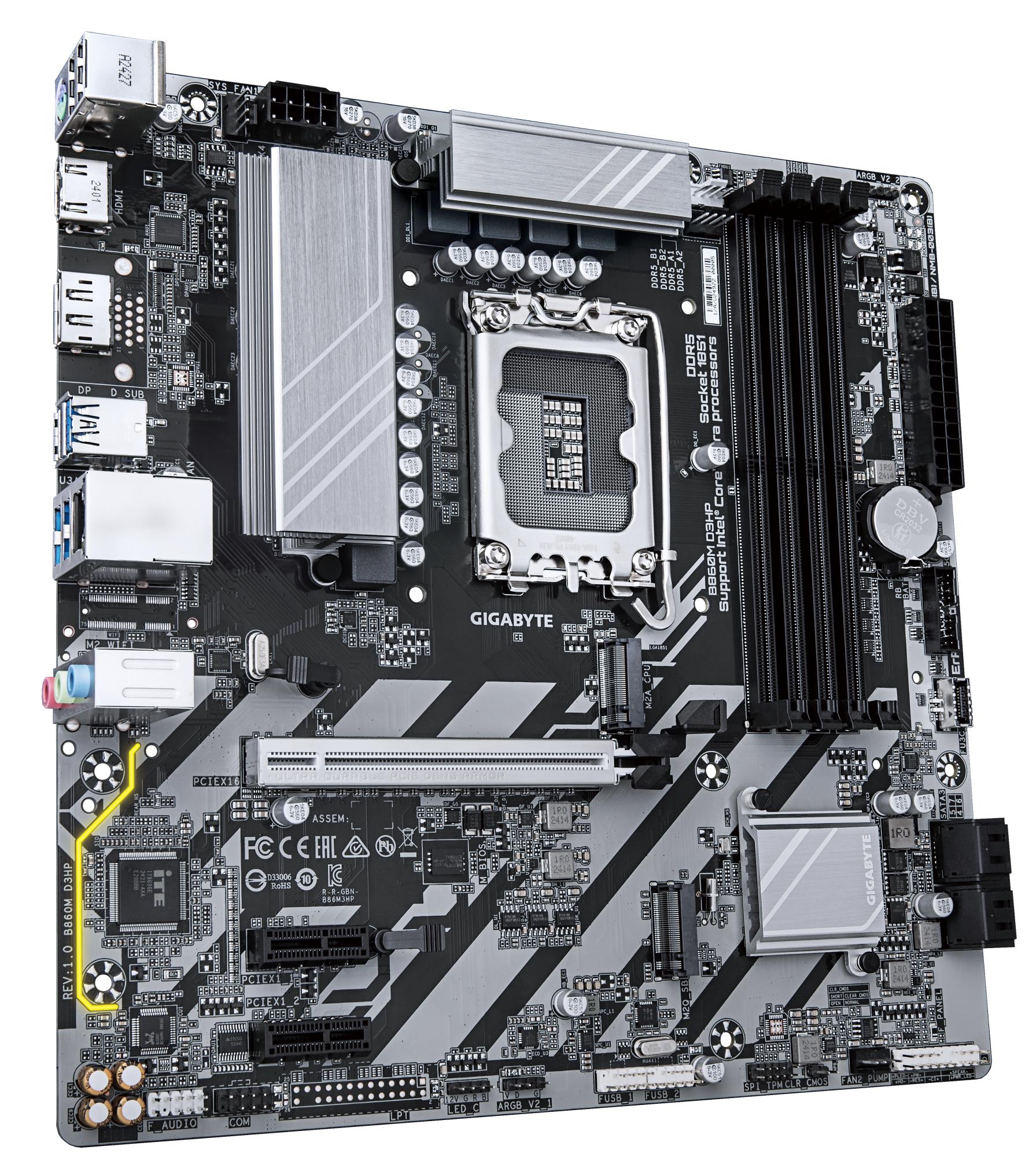

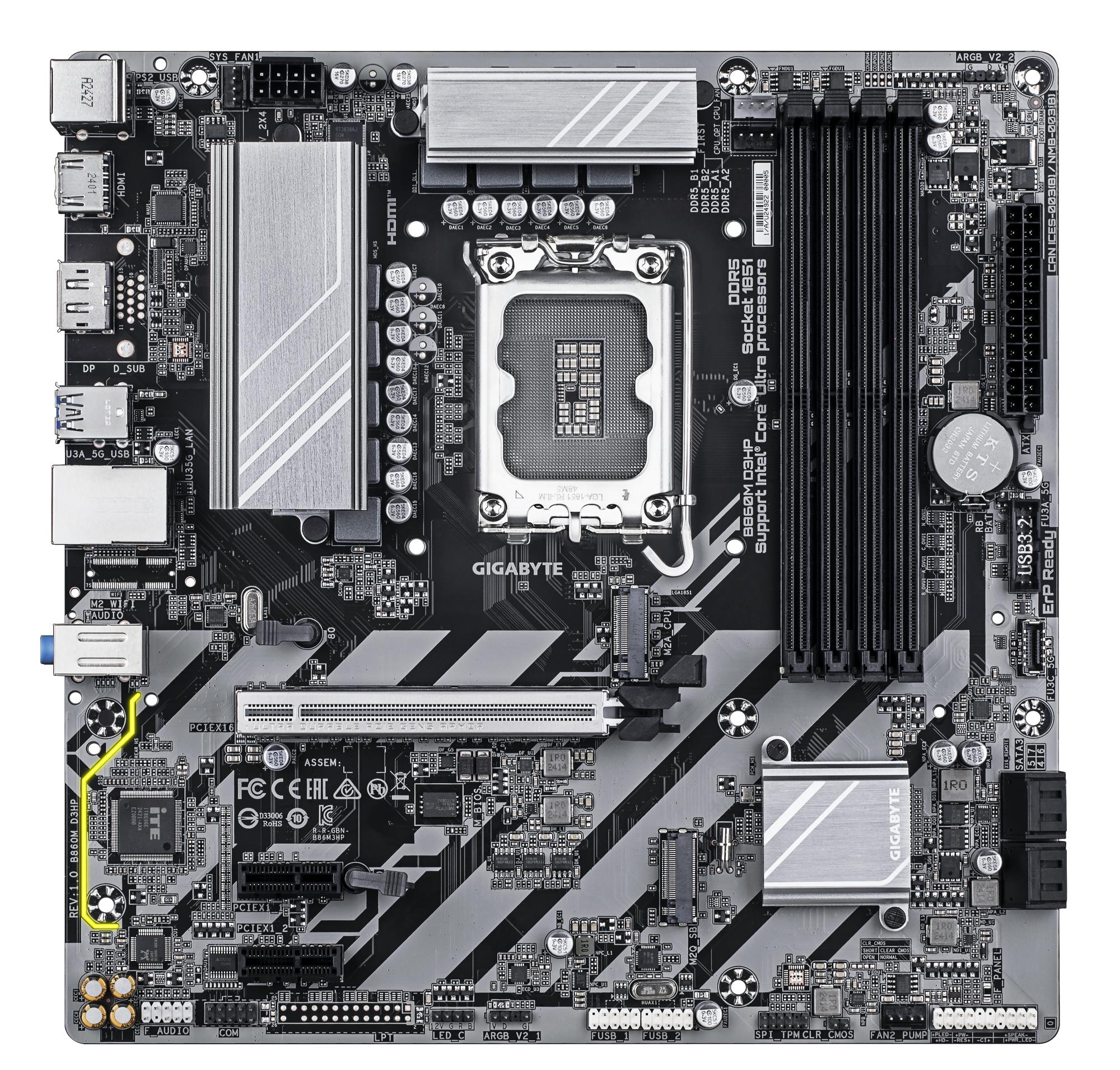

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|3xUSB 2.0|3xUSB 3.2|1xPS/2|1xRJ45|B860MD3HP1.0
SKU: B860M D3HP 1.0
€ 140.76
Pieejams : 5 gab.
Intel B860
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1851 (Socket V1)
Series Intel Core Ultra (Series 2)/Intel® Core™ Ultra (Series 1)
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4096 x 2160 pixels
3xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Weight 1.1 kg
-
Category Code: MBI
-
Unit Box Height: 0.055
-
Unit Box Length: 0.265
-
Unit Box Width: 0.265
-
M.2: 2
-
PCI-Express 16x: 1
-
PCI-Express 1x: 2
-
Audio-In: 1
-
Audio-Out: 1
-
DisplayPort: 1
-
HDMI: 1
-
Microphone: 1
-
PS/2: 1
-
RJ45: 1
-
USB 2.0: 3
-
USB 3.2: 3
-
SATA: Yes
-
SATA 3.0: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
USB-C: Yes
-
Model: B860M D3HP
-
Chipset: Intel B860 Express
-
Socket: LGA1851
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
-
Memory slots: 4
-
Integrated video: Yes
-
Integrated LAN: Gigabit
-
Integrated audio: Yes
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Unit Calculated Volume: 0.004588 cubm
-
Product Net Weight: 0.8 kg
-
Unit Calculated Weight: 1.05 kg
-
Manufacturer: GIGABYTE
