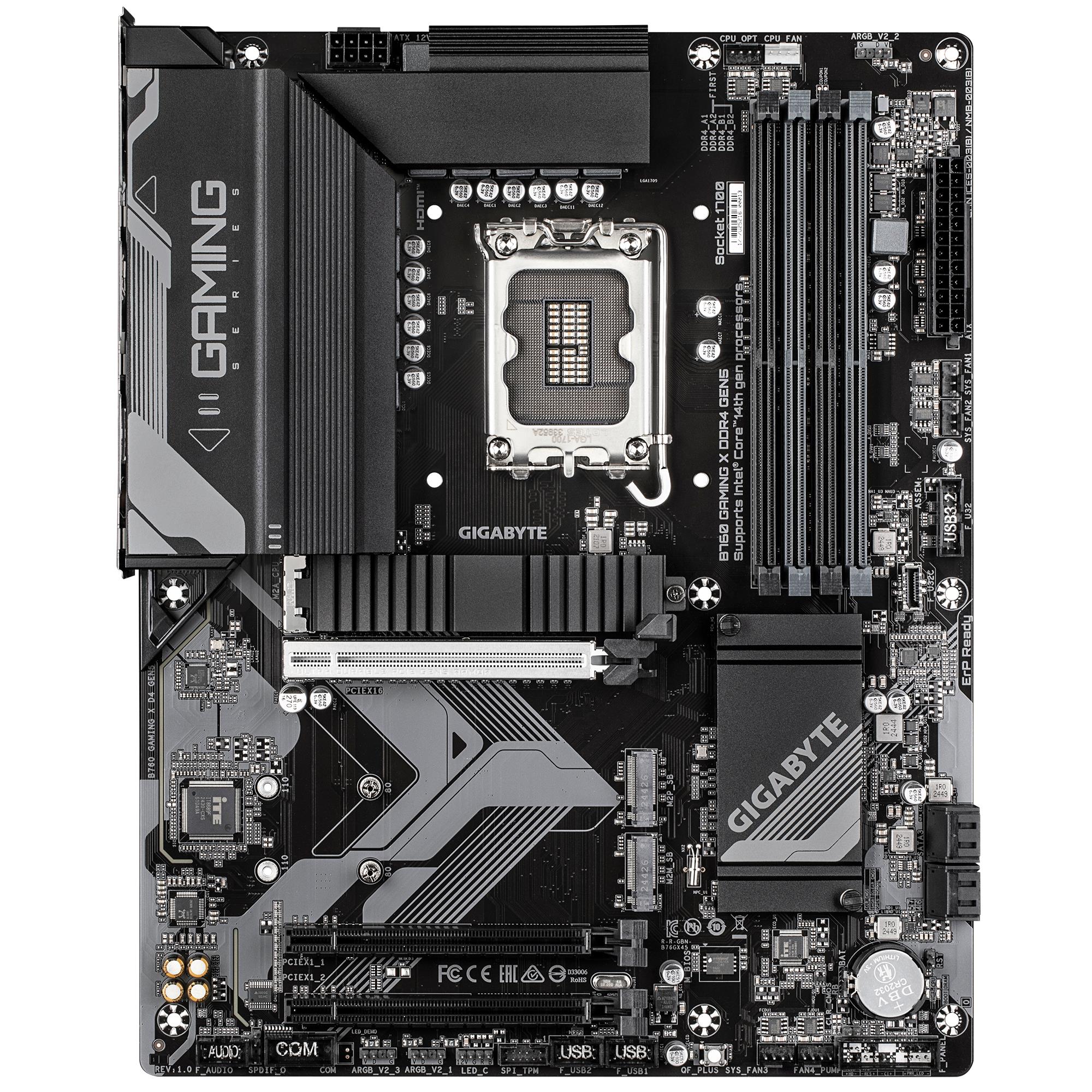

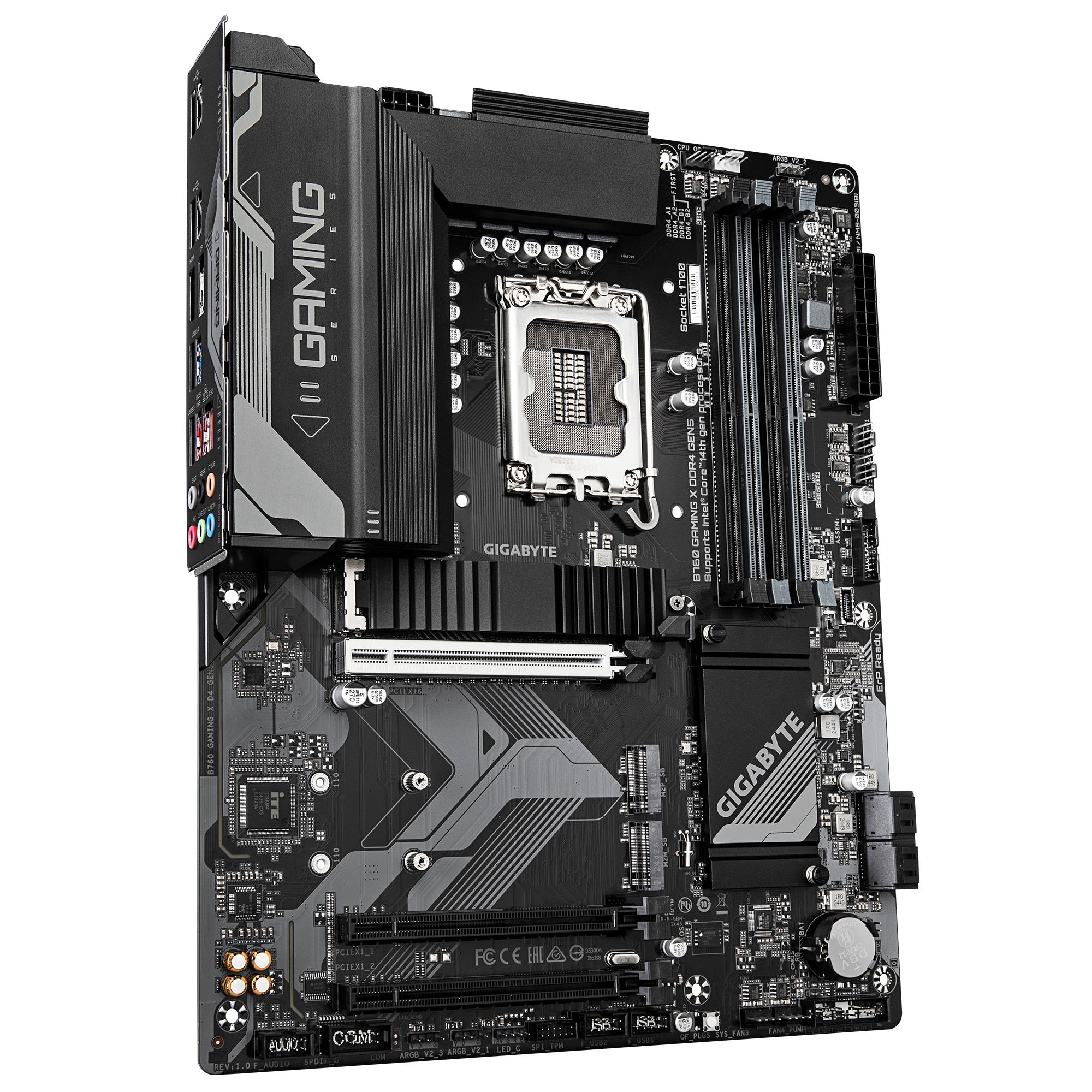

Mainboard|GIGABYTE|Intel B760|LGA 1700|ATX|RAM DDR4-SDRAM|4xSlots|3xNumber of M.2 (M) slots|B760GAMINGXD4GEN5

Summary: GIGABYTE B760 GAMING X DDR4 GEN5 Motherboard - Supports 14th Gen. Intel Core CPUs, 8+1+1 phases VRM, up to 5333MHz DDR4 (OC), 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125

Category Code: MBI

Unit Box Height: 0.08

Unit Box Length: 0.27

Unit Box Width: 0.335

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Cooling type: Passive

Motherboard chipset: Intel B760

Motherboard chipset family: Intel

Motherboard form factor: ATX

PC health monitoring: FAN/Temperature/Voltage/Water cooling

Power source type: ATX

Product colour: Dark brown

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel® Celeron®

Maximum internal memory supported by processor: 128 GB

Processor manufacturer: Intel

Processor socket: LGA 1700

Supported processor sockets: LGA 1700

ECC сompatibility: ECC & Non-ECC

Maximum internal memory: 128 GB

Maximum internal memory per slot: 32 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 4

Supported memory clock speed (max): 5333 MHz

Supported memory clock speeds: 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz

Supported memory types: DDR4-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 7

RAID levels: 0/1/10/5

RAID support: Yes

Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III

Supported storage drive types: HDD & SSD

DirectX version: 12.0

HDCP: Yes

Maximum resolution: 4096 x 2304 pixels

Parallel processing technology support: Not supported

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Front panel connector: Yes

Number of chassis fan connectors: 4

Number of CPU fan connectors: 2

Number of EPS power connectors (8-pin): 1

Number of RGB LED pin headers: 4

Number of SATA III connectors: 4

Number of water pump connectors: 2

RGB LED pin header: Yes

S/PDIF out connector: Yes

Serial port headers: 1

TPM connector: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

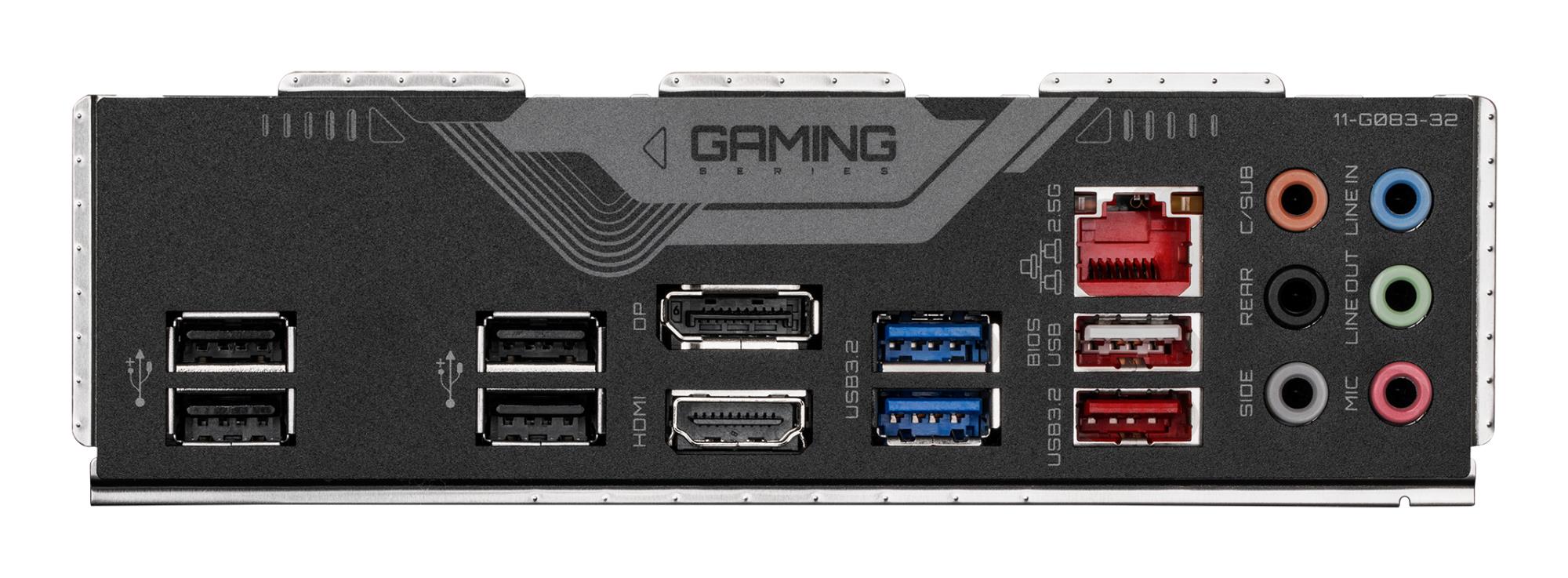

DisplayPort version: 1.2

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 1

Line-in: Yes

USB 2.0 ports quantity: 5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8125

Wi-Fi: No

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 22110

2nd M.2 highest PCI Express generation: 4.0

2nd M.2 largest key size: 22110

3rd M.2 highest PCI Express generation: 4.0

3rd M.2 largest key size: 22110

Number of M.2 (M) slots: 3

PCI Express x16 (Gen 3.x) slots: 2

PCI Express x16 (Gen 5.x) slots: 1

ACPI version: 5.0

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Clear CMOS jumper: Yes

Desktop Management Interface (DMI) version: 2.7

System Management BIOS (SMBIOS) version: 2.7

Battery technology: Lithium-Manganese Dioxide (LiMnO2)

Battery type: CR2032

Battery weight: 3 g

Country of origin: China

Lithium weight per battery: 0.07 g

Number of battery cells: 1

Package depth: 270 mm

Package height: 80 mm

Package weight: 1800 g

Package width: 335 mm

Products per shipping (inner) case: 1 pc(s)

Depth: 244 mm

Height: 35 mm

Width: 305 mm

Batteries included: Yes

Bundled software: Norton® Internet Security (OEM version)

Screws included: Yes

Warranty period: 3 year(s)

Weight: 1590 g
