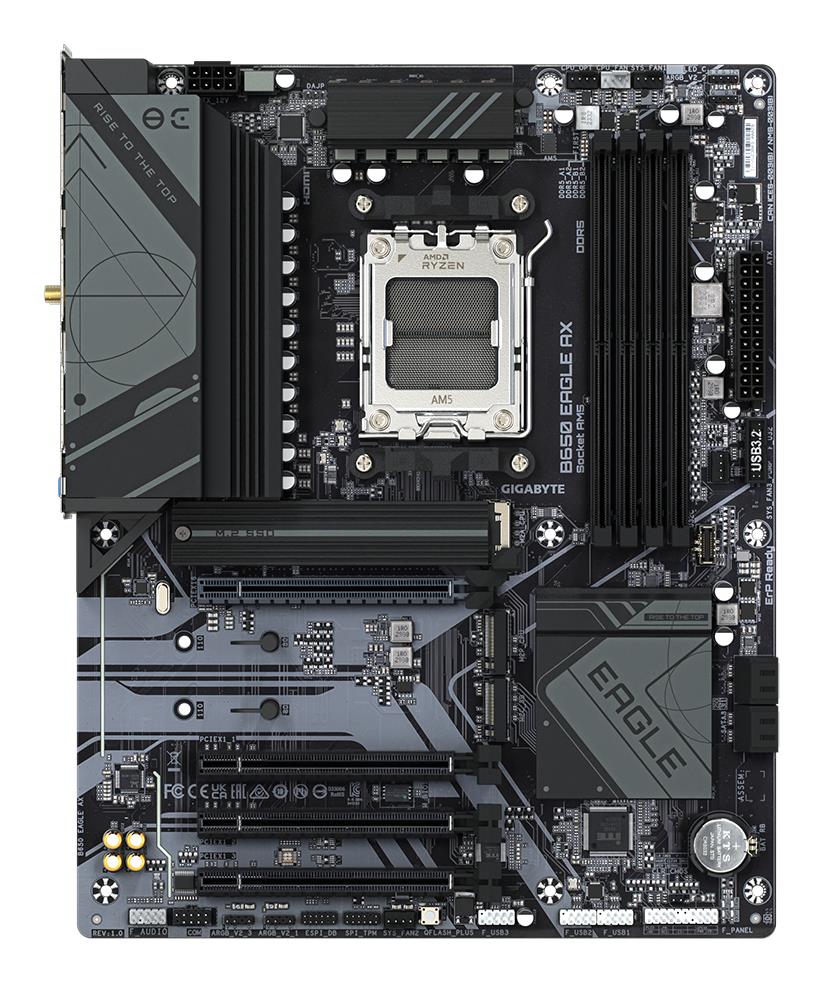

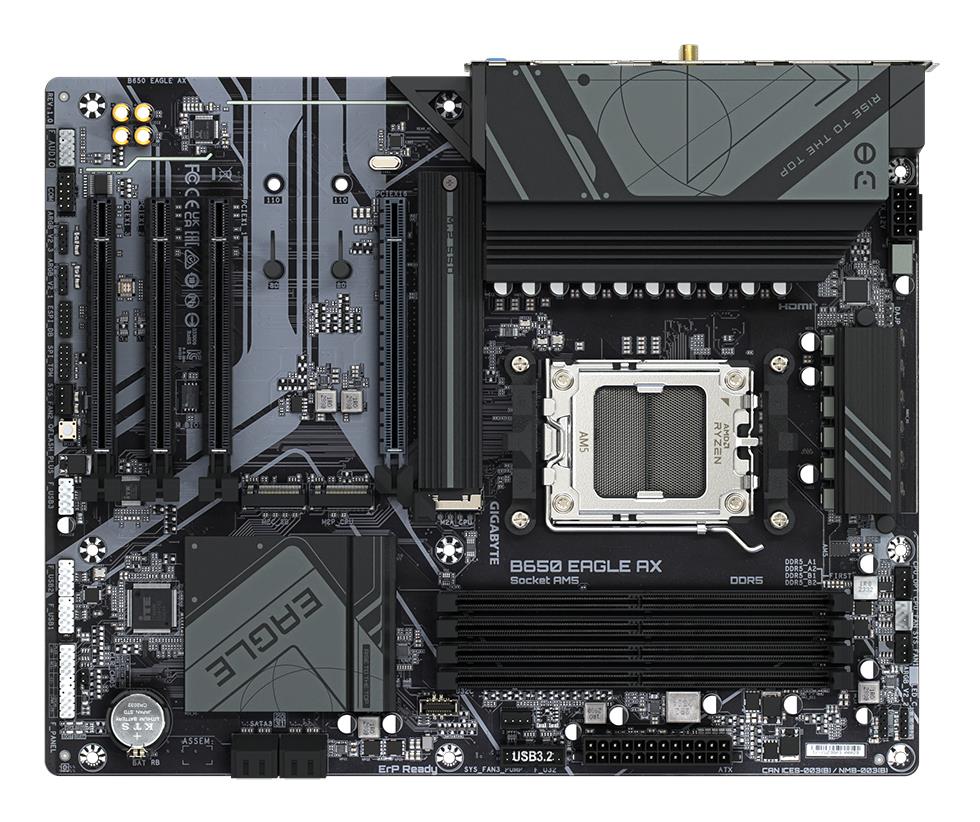

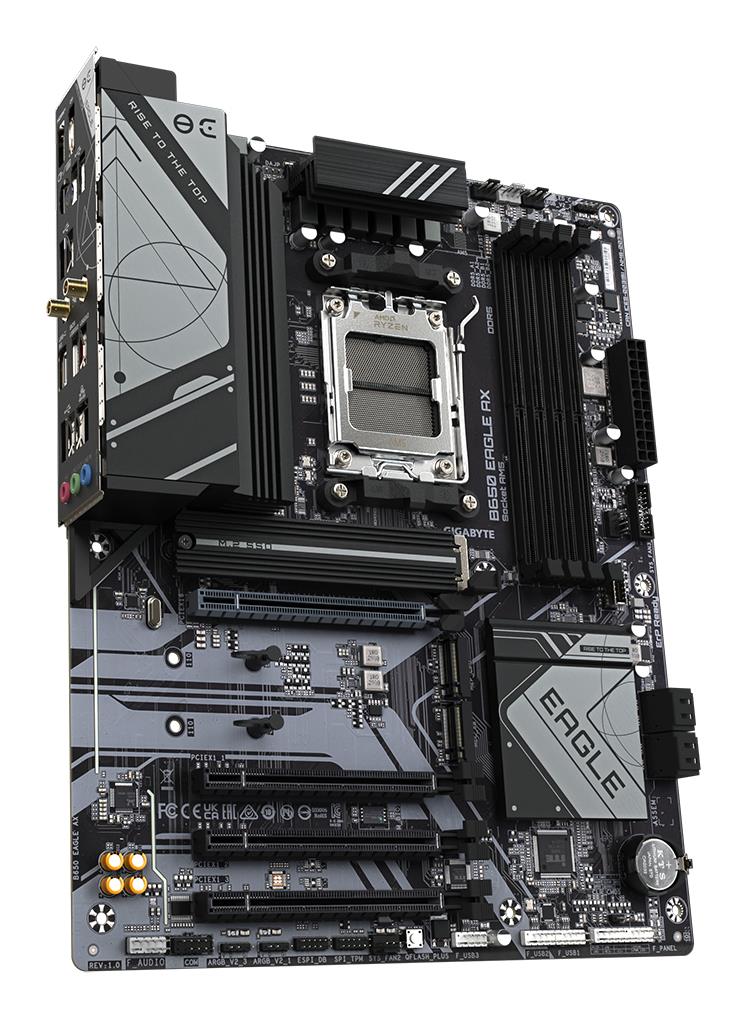

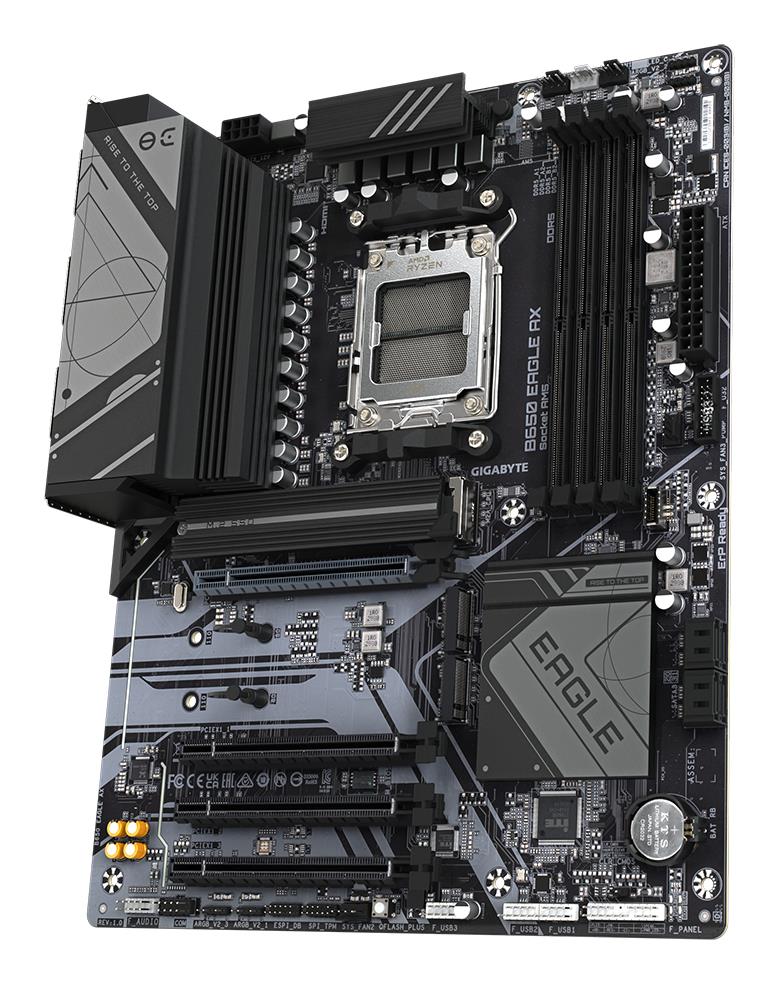

Mainboard|GIGABYTE|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 16x|3xPCI-Express 3.0 16x|3xM.2|2xHDMI|1xDisplayPort|6xUSB 2.0|2xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|B650EAGLEAX1.1
SKU: B650 EAGLE AX 1.1
€ 146.60
Pieejams : 30 gab.
AMD B650
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4096 x 2160 pixels
Discrete graphics support Yes
6xUSB 2.0 ports quantity
1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
-
Category Code: MBA
-
Unit Box Height: 0.38
-
Unit Box Length: 0.57
-
Unit Box Width: 0.0456
-
PCI-Express 16x: 1
-
PCI-Express 3.0 16x: 3
-
M.2: 3
-
HDMI: 2
-
DisplayPort: 1
-
USB 2.0: 6
-
USB 3.2: 2
-
USB-C: 1
-
RJ45: 1
-
Audio port: 3
-
SATA: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Serial: Yes
-
Model: B650 EAGLE AX 1.1
-
Chipset: AMD B650
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated LAN: Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
-
TPM: Header
-
Unit Calculated Volume: 0.009882 cubm
-
Product Net Weight: 1.5 kg
-
Unit Calculated Weight: 1.98 kg
-
Manufacturer: GIGABYTE
