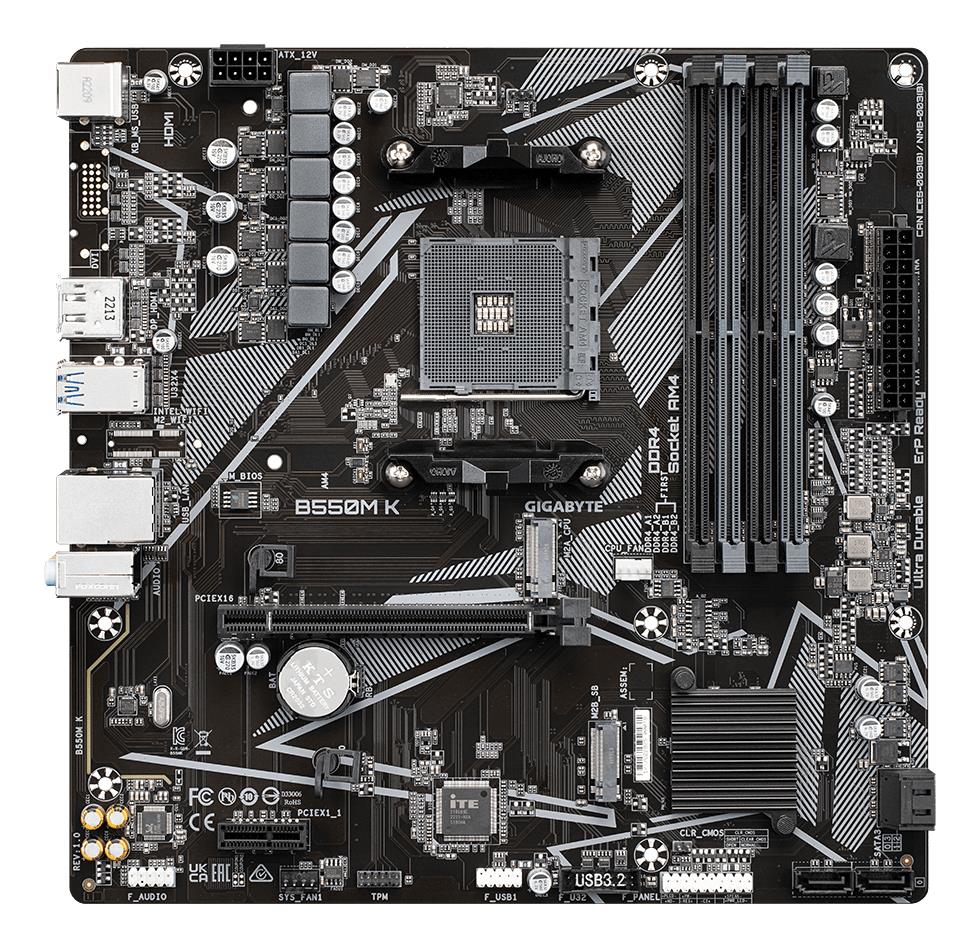

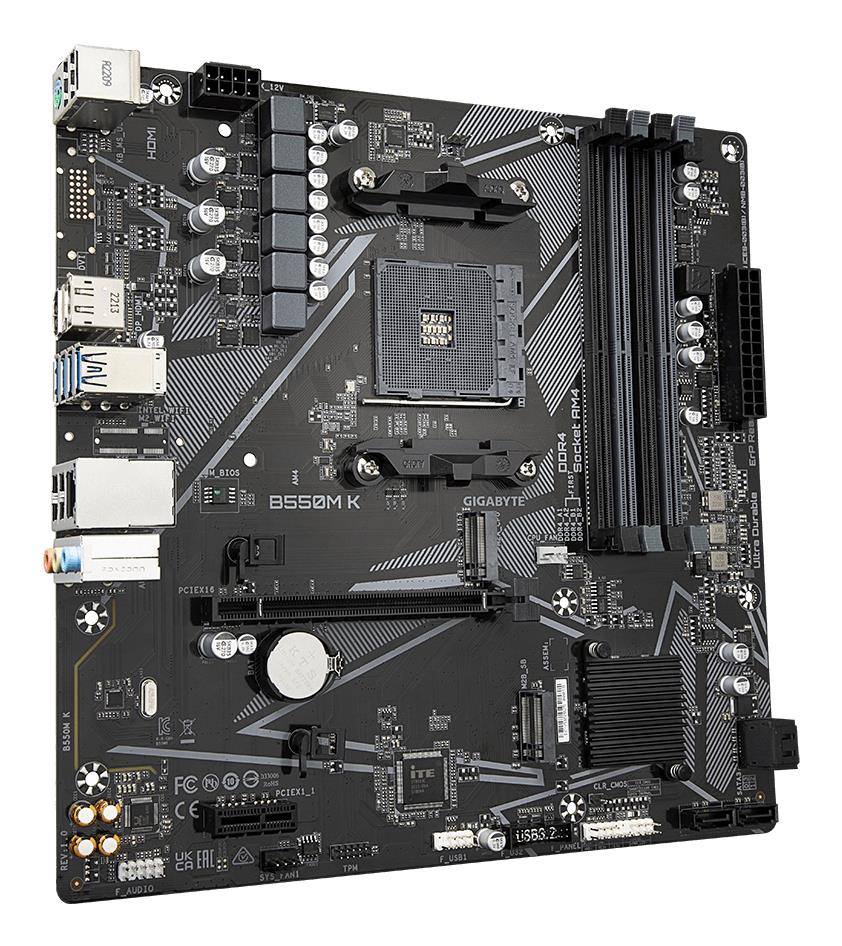

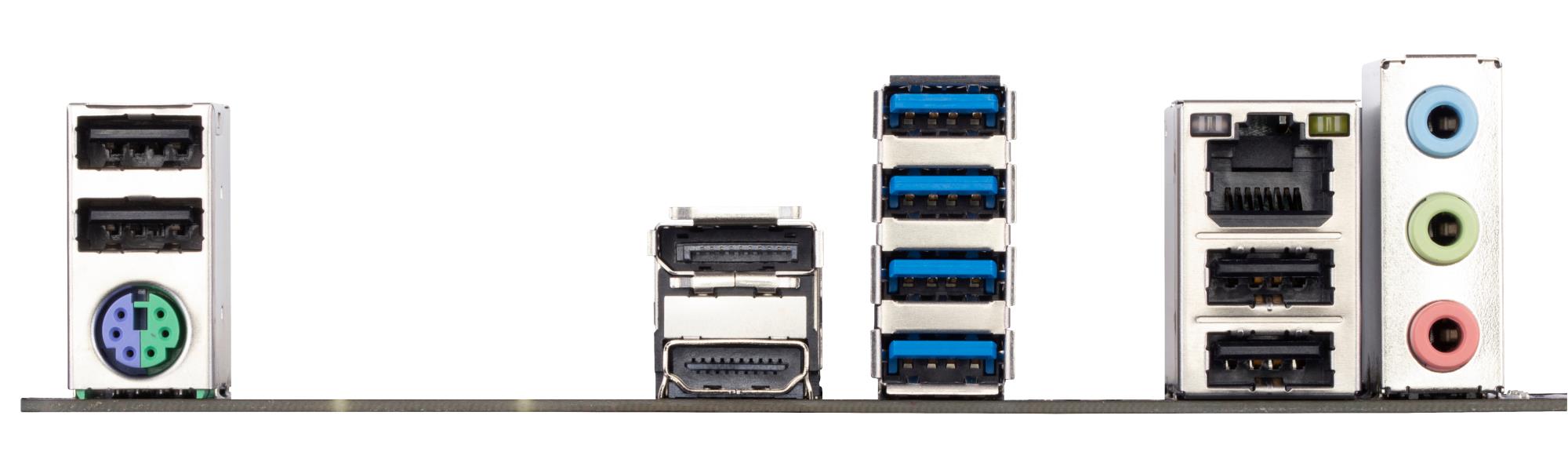

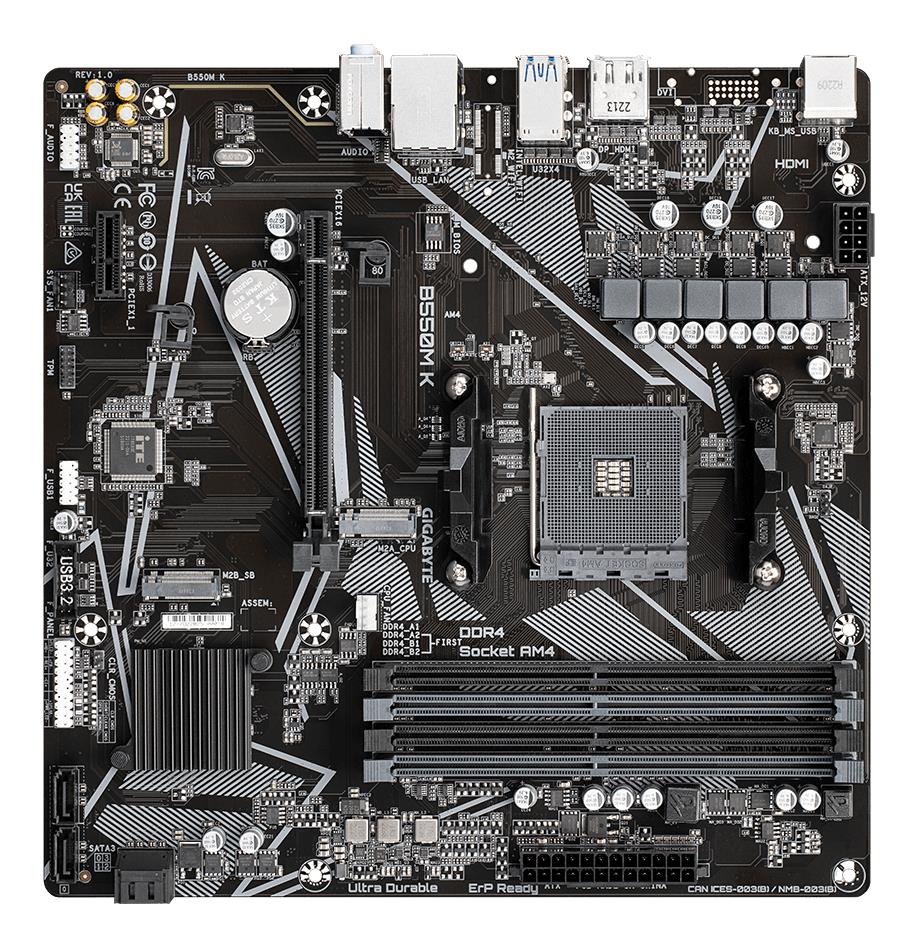

Mainboard|GIGABYTE|AMD B550|SAM4|Micro-ATX|Memory DDR4|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|1xDisplayPort|2xAudio-In|1xAudio-Out|4xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|B550MK
SKU: B550MK
€ 83.76
Pieejams : 28 gab.
AMD B550
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series/AMD Ryzen 4000 Series/AMD Ryzen 5000 Series
Supported memory types DDR4-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA
5120 x 2880 pixels
4xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
-
Category Code: MBA
-
Unit Box Height: 0.055
-
Unit Box Length: 0.27
-
Unit Box Width: 0.27
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 16x: 1
-
M.2: 2
-
HDMI: 1
-
DisplayPort: 1
-
Audio-In: 2
-
Audio-Out: 1
-
USB 2.0: 4
-
USB 3.2: 4
-
PS/2: 1
-
RJ45: 1
-
SATA: Yes
-
Model: B550M K
-
Chipset: AMD B550
-
Socket: SAM4
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 MHz
-
Memory slots: 4
-
Integrated video: Yes
-
Integrated audio: Yes
-
Integrated LAN: Gigabit
-
RAID: SATA 0, 1, 10
-
TPM: Header
-
Unit Calculated Volume: 0.00401 cubm
-
Product Net Weight: 0.62 kg
-
Unit Calculated Weight: 0.777 kg
-
Manufacturer: GIGABYTE
