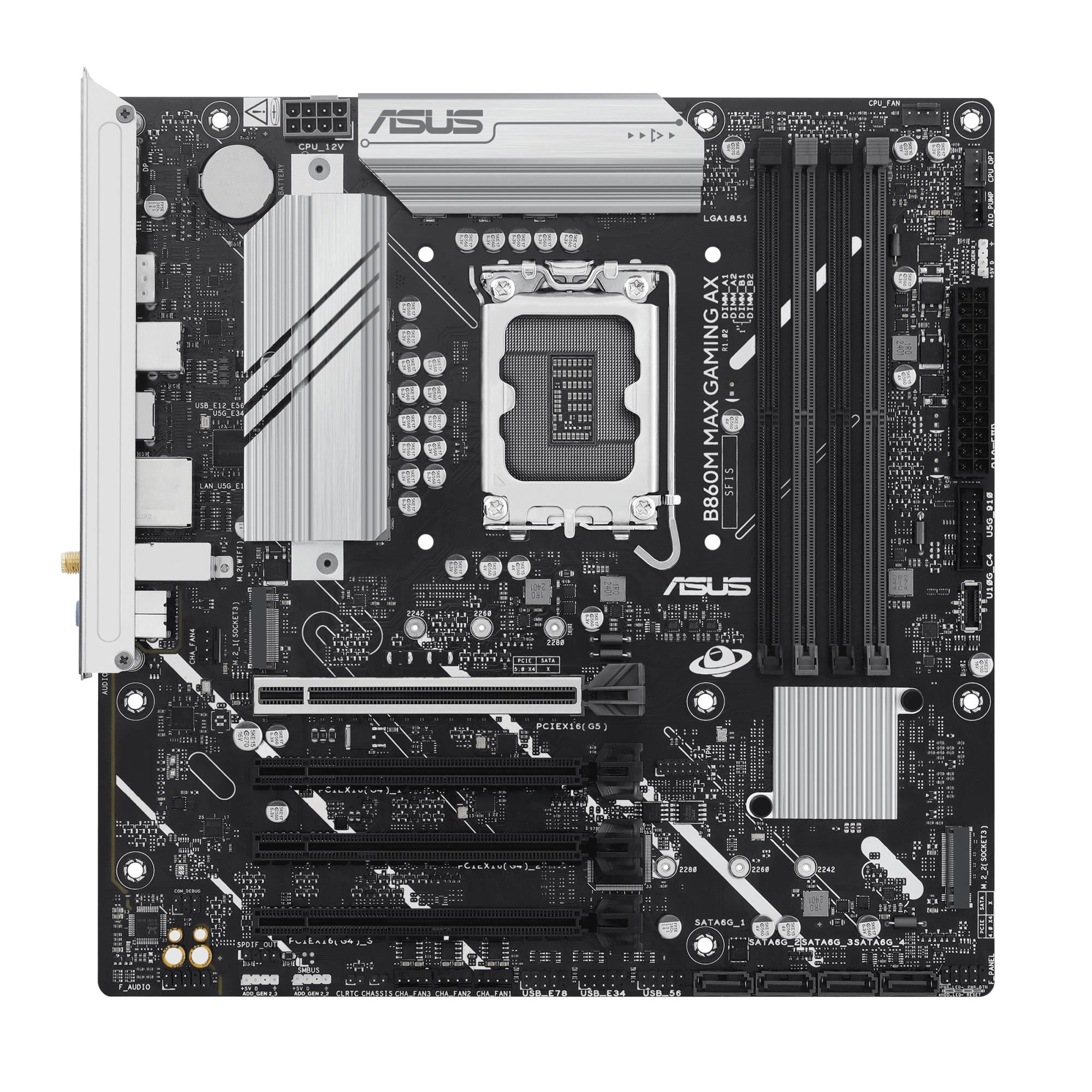

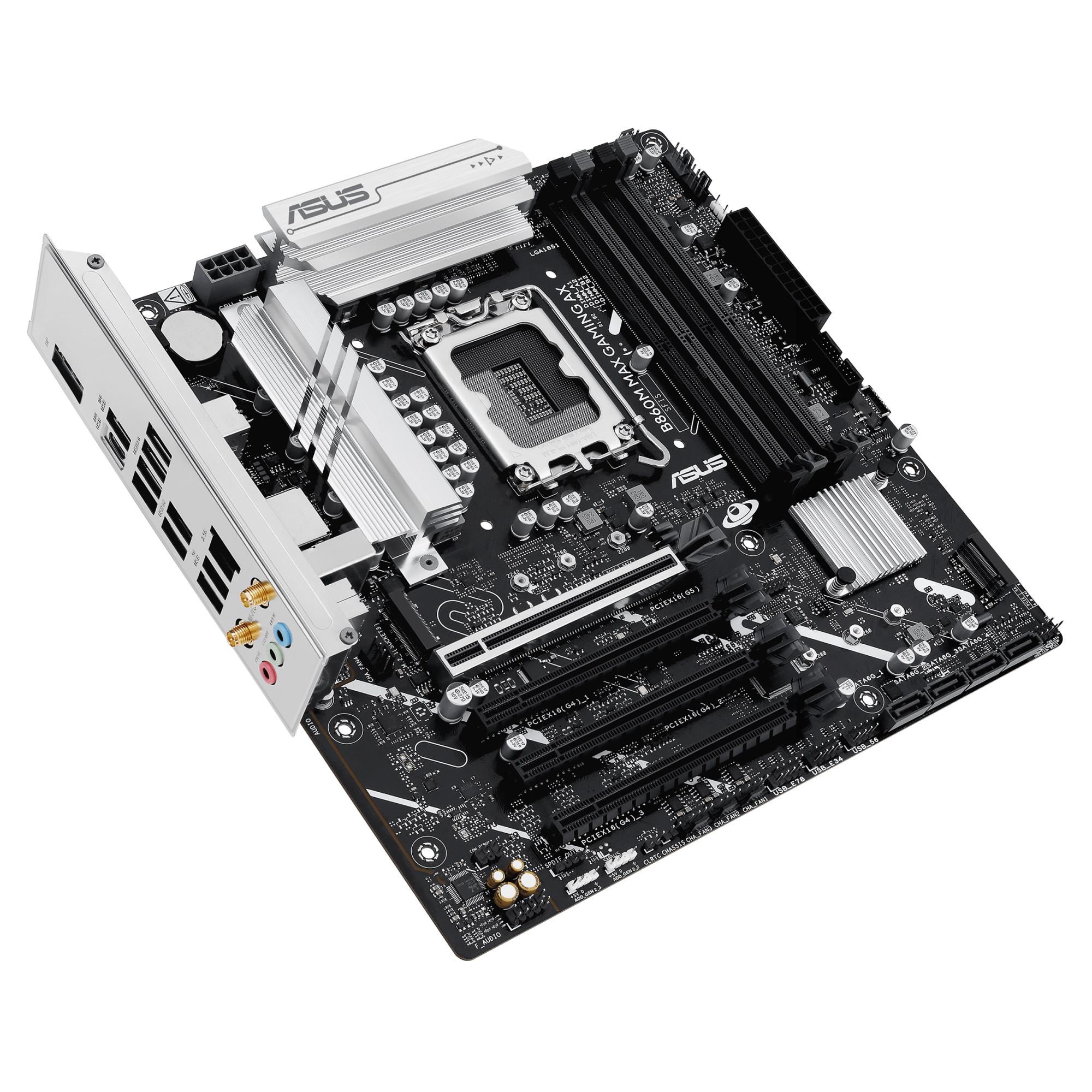

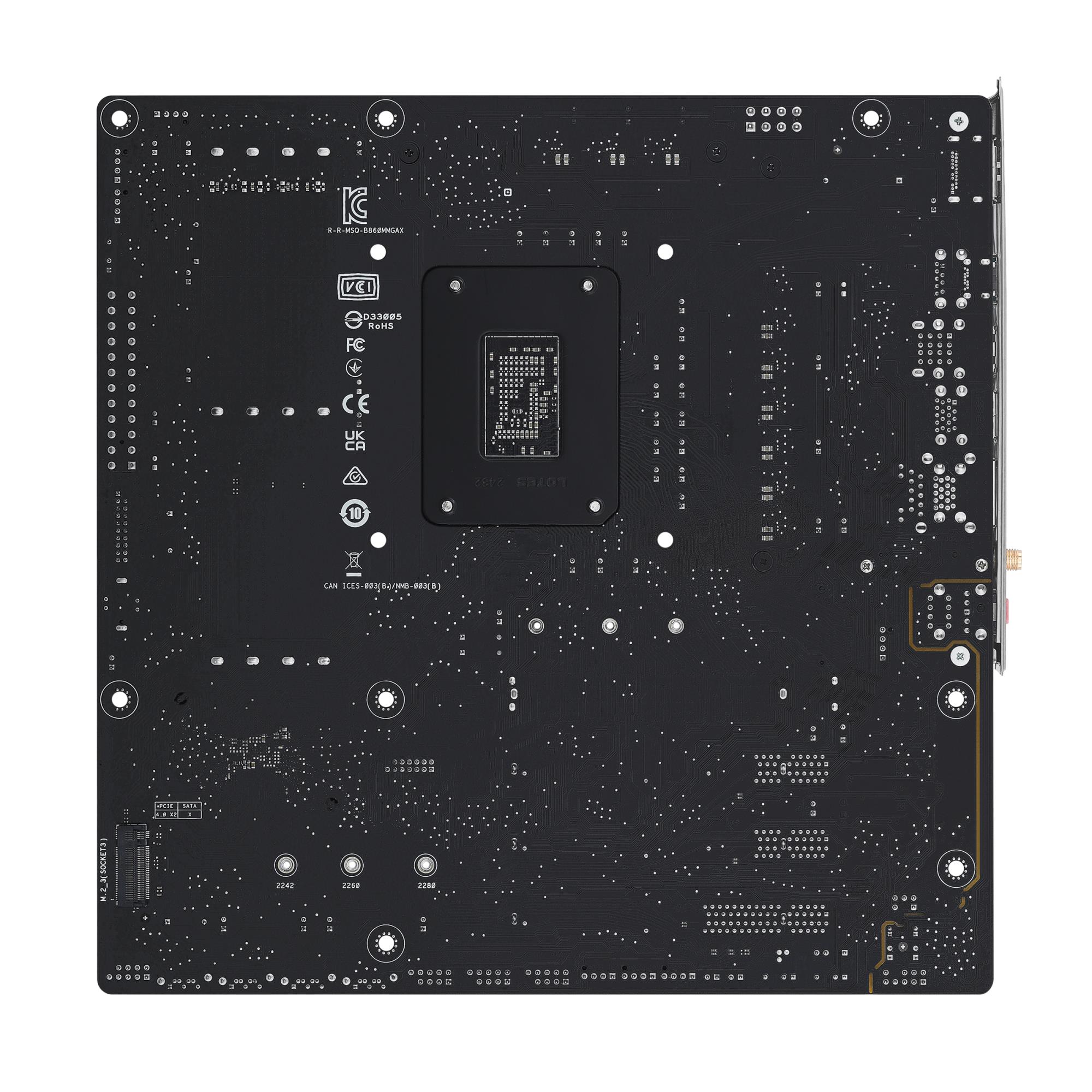

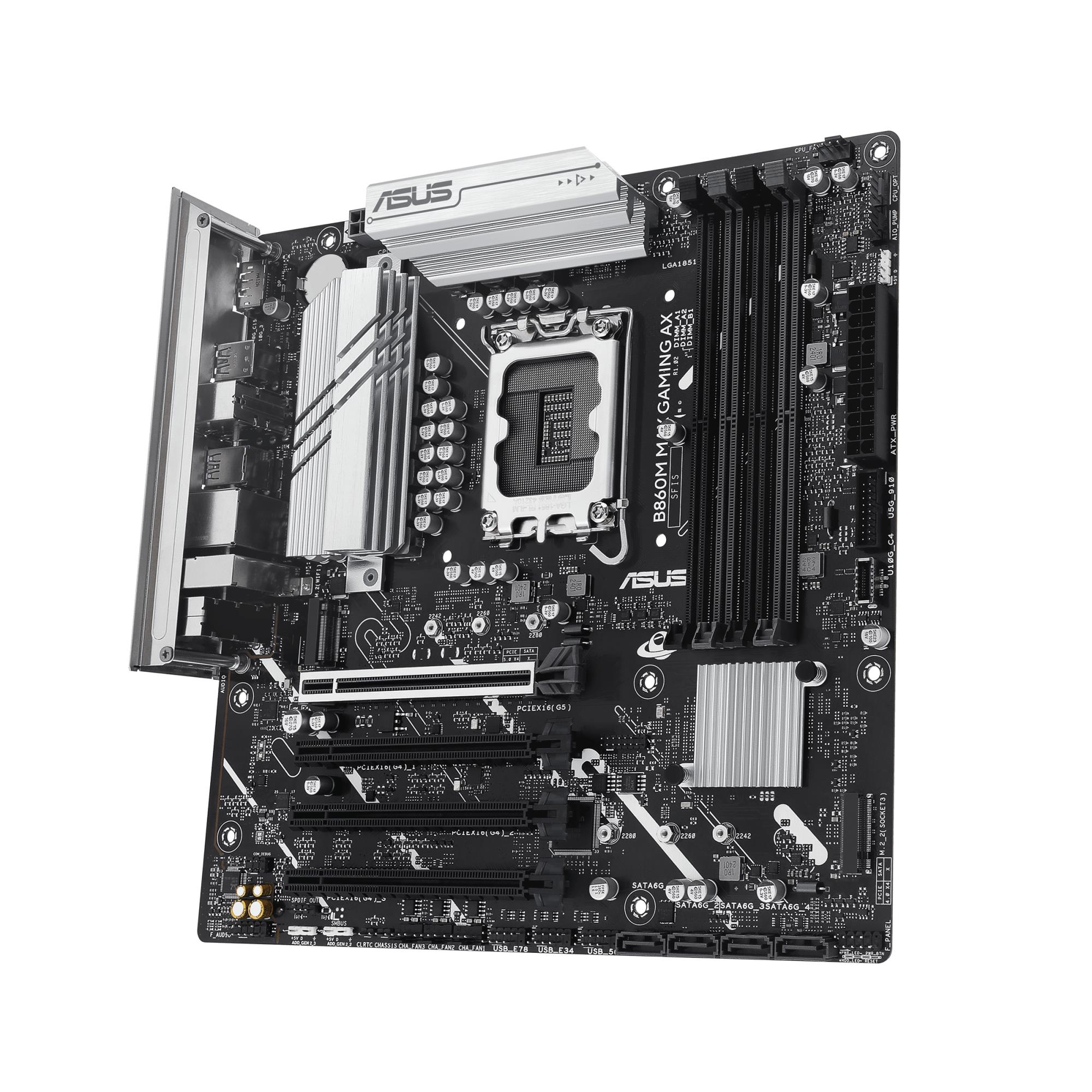

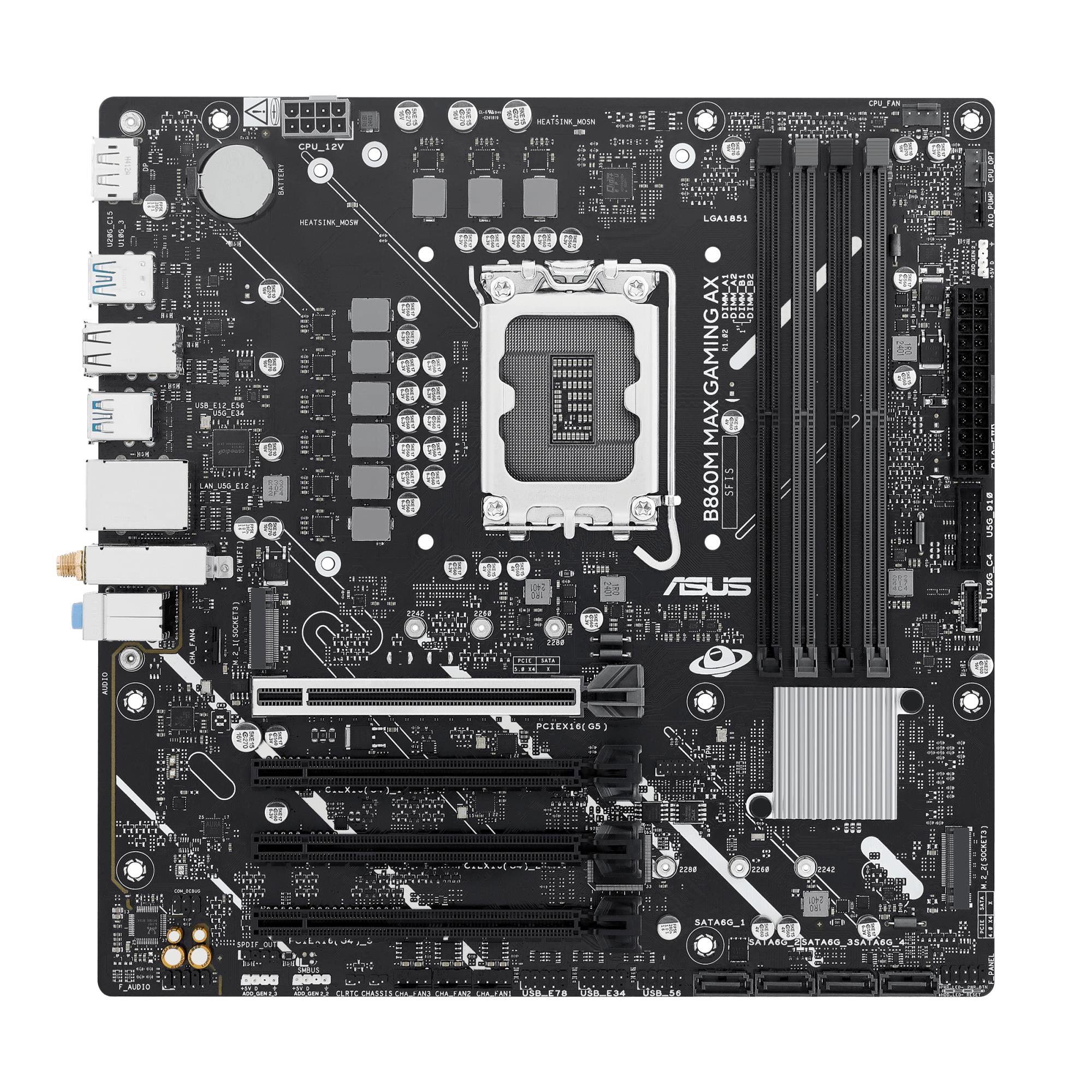

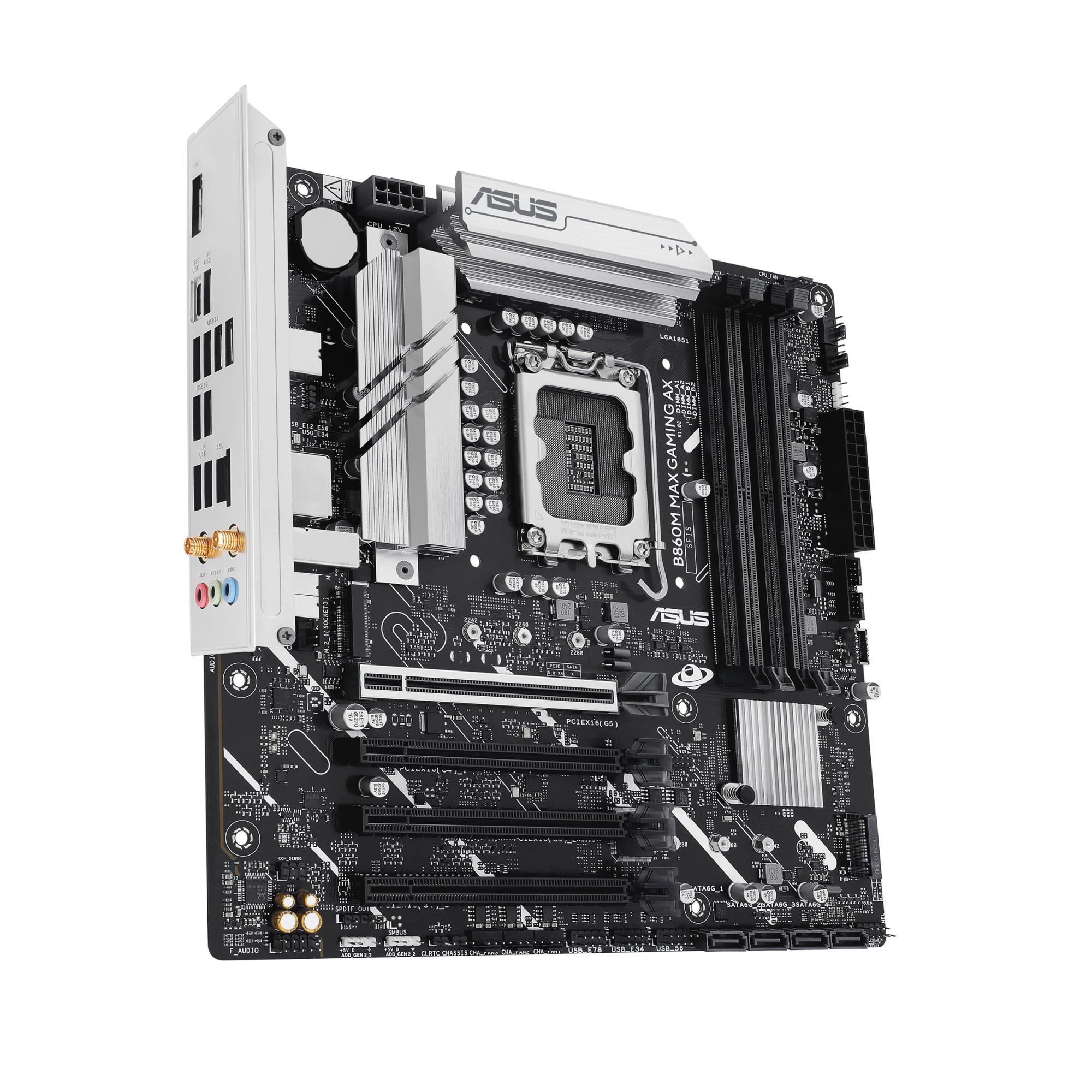

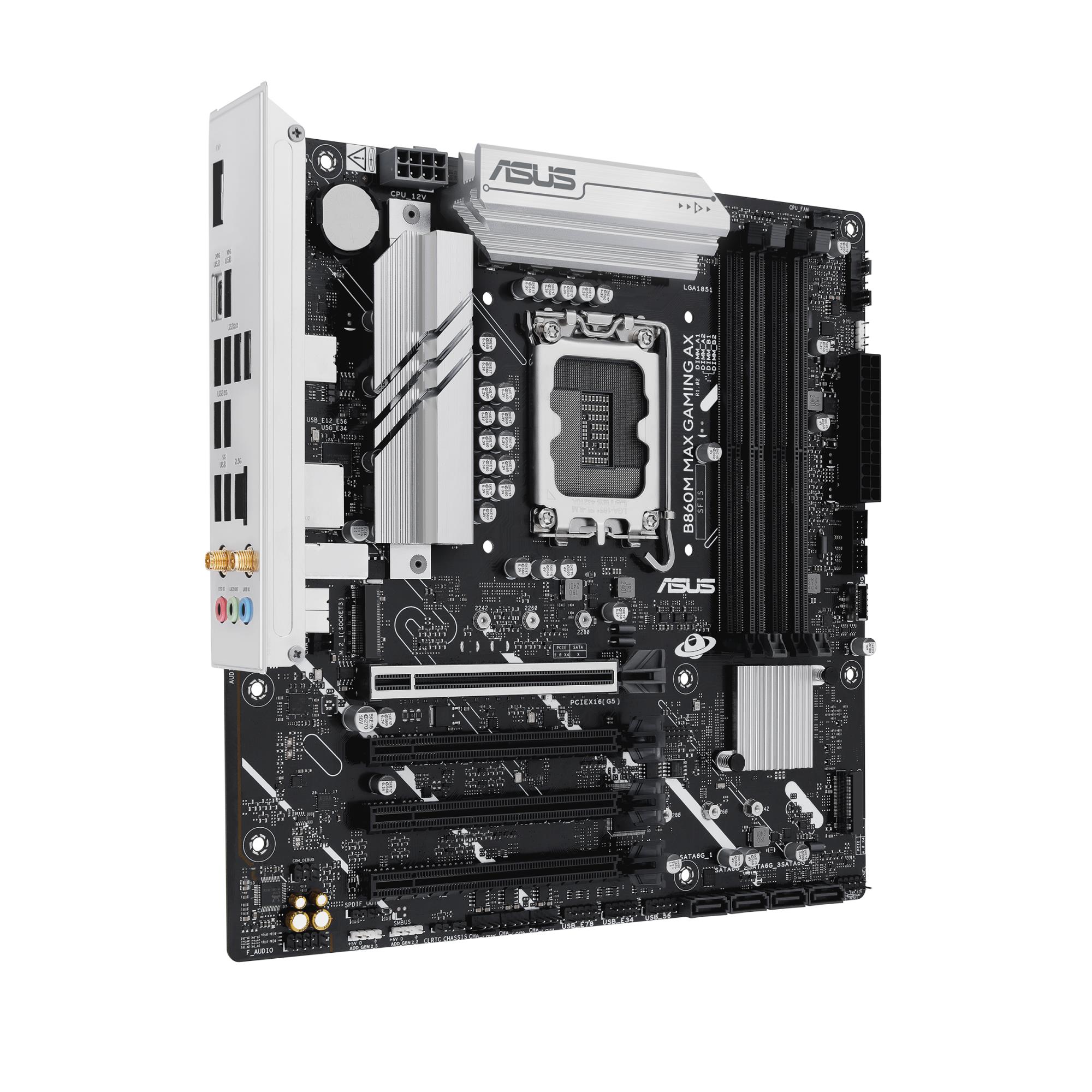

Mainboard|ASUS|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 4|B860MMAXGAMINGAX
SKU: B860M MAX GAMING AX
€ 216.41
Pieejams : 10 gab.
Intel B860
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1851 (Socket V1)
Series Intel Core Ultra (Series 2)
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0
3840 x 2160 pixels
4xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
Wi-Fi Yes
Bluetooth Yes

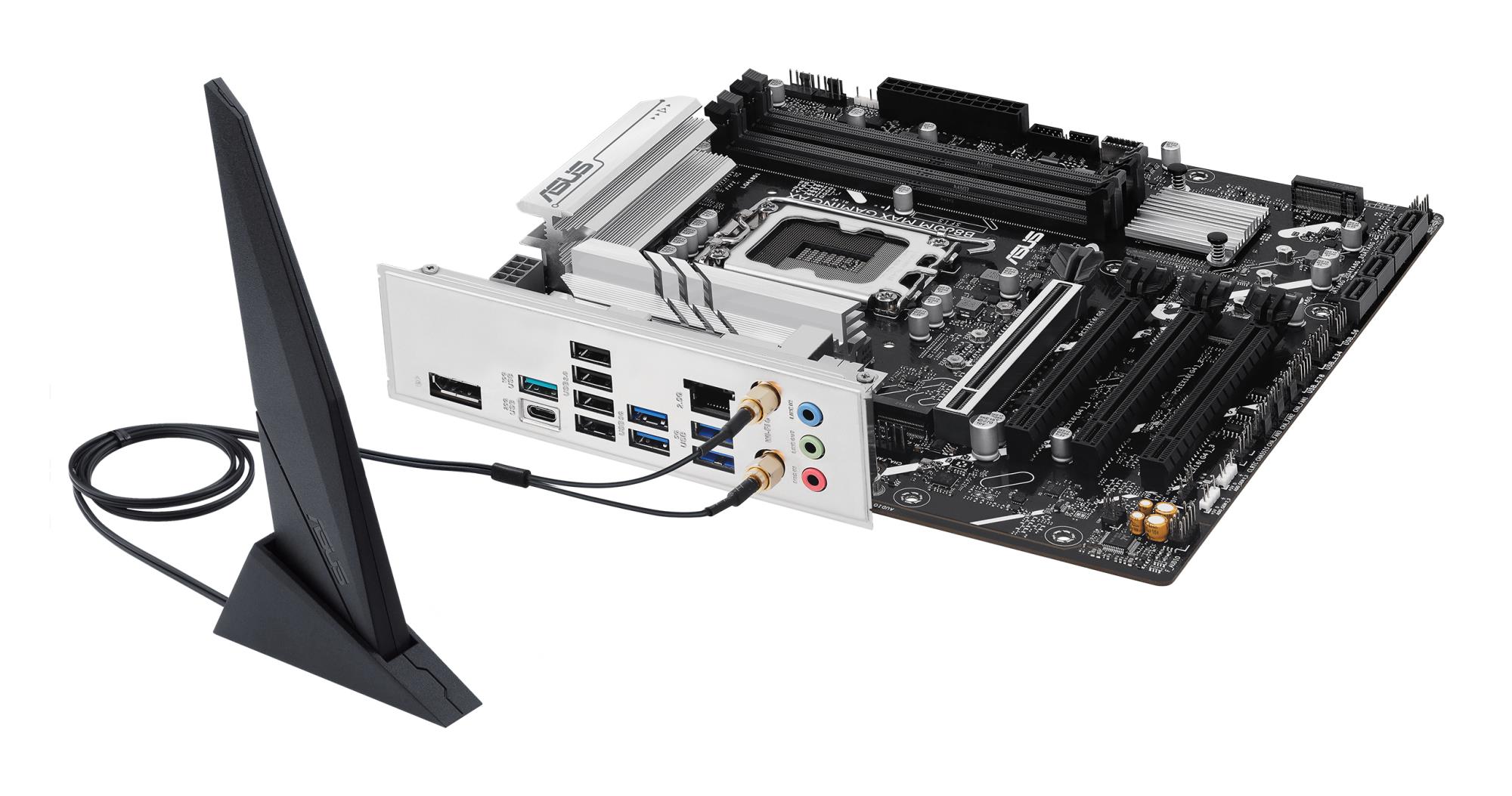

Antenna included Yes
-
Summary: ASUS B860M MAX GAMING AX. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax)
-
Category Code: MBI
-
Unit Box Height: 0.068
-
Unit Box Length: 0.279
-
Unit Box Width: 0.275
-
Compatible processor series: Intel Core Ultra (Series 2)
-
Processor manufacturer: Intel
-
Processor socket: LGA 1851 (Socket V1)
-
Supported processor sockets: Intel LGA1851
-
ECC ?ompatibility: ECC & non-ECC
-
Maximum internal memory: 256 GB
-
Maximum internal memory per slot: 64 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 4
-
Supported memory clock speed (max): 8666 MHz
-
Supported memory types: DDR5-SDRAM
-
Unbuffered memory: Yes
-
Number of HDDs supported: 4
-
Number of storage drives supported: 7
-
RAID levels: 0/1/10/5
-
RAID support: Yes
-
Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0
-
Supported storage drive types: HDD & SSD
-
Maximum resolution: 3840 x 2160 pixels
-
Parallel processing technology support: Not supported
-
12V power connector: Yes
-
ATX Power connector (24-pin): Yes
-
Chassis intrusion connector: Yes
-
CPU fan connector: Yes
-
EPS power connector (8-pin): Yes
-
Front panel audio connector: Yes
-
Front panel connector: Yes
-
Number of chassis fan connectors: 4
-
Number of CPU fan connectors: 1
-
Number of EPS power connectors (8-pin): 1
-
Number of RGB LED pin headers: 3
-
Number of SATA III connectors: 4
-
Number of water pump connectors: 1
-
RGB LED pin header: Yes
-
S/PDIF out connector: Yes
-
TPM connector: Yes
-
USB 2.0 connectors: 3
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
-
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
-

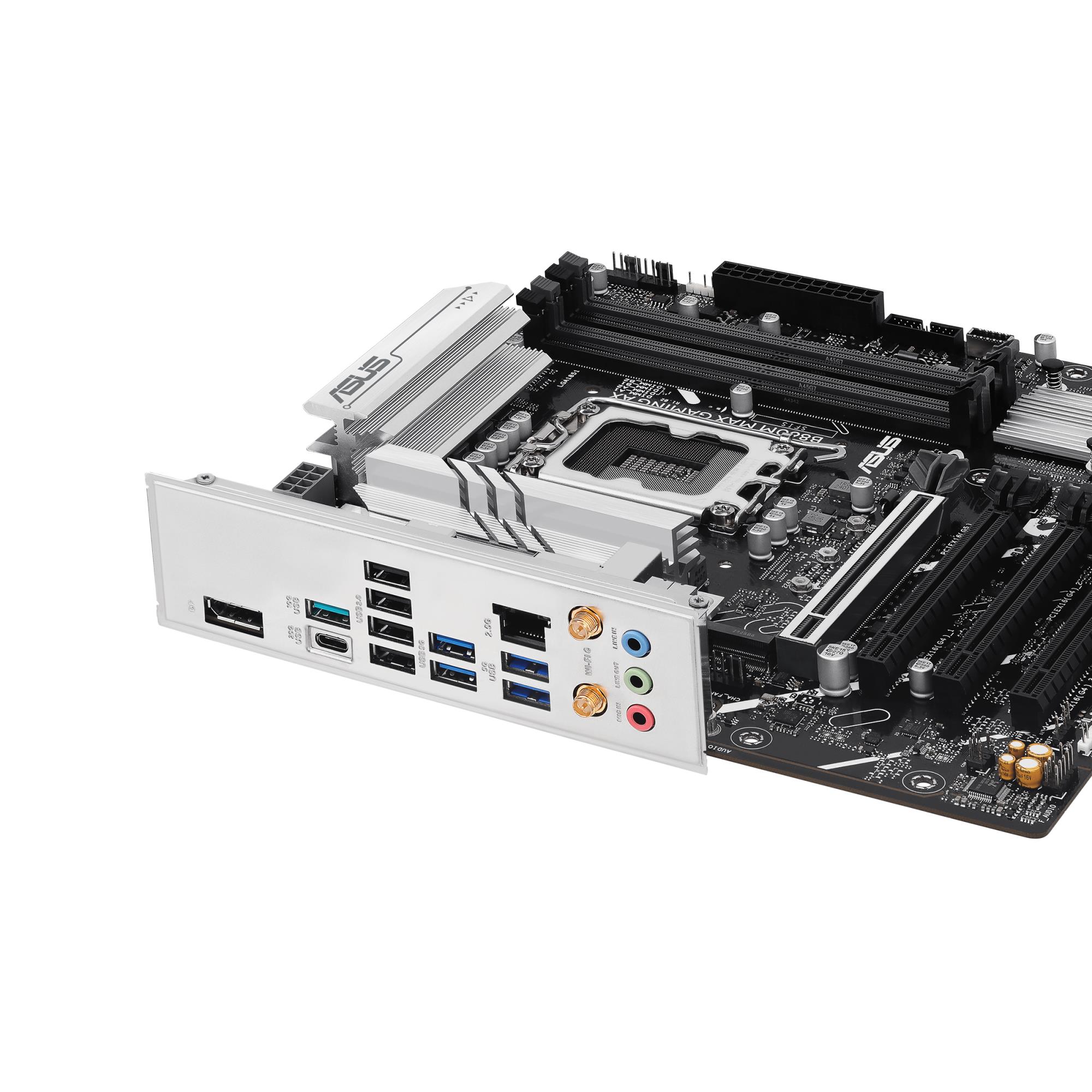

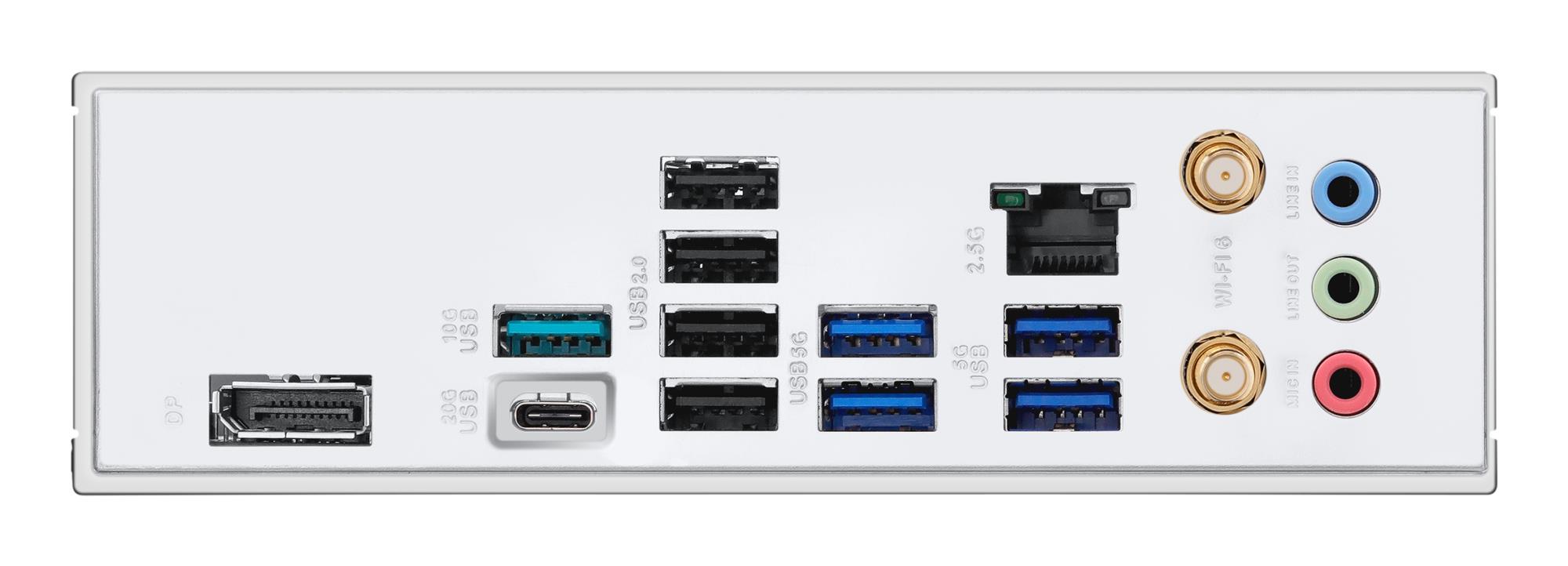

DisplayPort version: 1.4
-
DisplayPorts quantity: 1
-
Ethernet LAN (RJ-45) ports: 1
-
Line-in: Yes
-
Microphone in: Yes
-
USB 2.0 ports quantity: 4
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
-
USB 3.2 Gen 2x2 Type-C ports quantity: 1
-
WiFi-AP antenna jack: 2
-
Bluetooth: Yes
-
Bluetooth version: 5.3
-
Ethernet interface type: 2.5 Gigabit Ethernet
-
Ethernet LAN: Yes
-
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
-
Wi-Fi: Yes
-
Wi-Fi standards: Wi-Fi 6 (802.11ax)
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Cooling type: Passive
-
Motherboard chipset: Intel B860
-
Motherboard chipset family: Intel
-
Motherboard form factor: Micro ATX
-
Power source type: ATX
-
Product colour: Grey
-
Windows operating systems supported: Windows 10 x64/Windows 11
-
1st M.2 highest PCI Express generation: 5.0
-
1st M.2 largest key size: 2280
-
2nd M.2 highest PCI Express generation: 4.0
-
2nd M.2 largest key size: 2280
-
3rd M.2 highest PCI Express generation: 4.0
-
3rd M.2 largest key size: 2280
-
Number of M.2 (M) slots: 3
-
PCI Express x16 (Gen 4.x) slots: 3
-
PCI Express x16 (Gen 5.x) slots: 1
-
BIOS memory size: 256 Mbit
-
BIOS type: UEFI AMI
-
Depth: 244 mm
-
Width: 244 mm
-
Antenna included: Yes
-
Cables included: SATA
-
Screws included: Yes
-
Quick installation guide: Yes
-
Model: B860M MAX GAMING AX
-
Unit Calculated Volume: 0.0061551 cubm
-
Product Net Weight: 1 kg
-
Unit Calculated Weight: 1.435 kg
