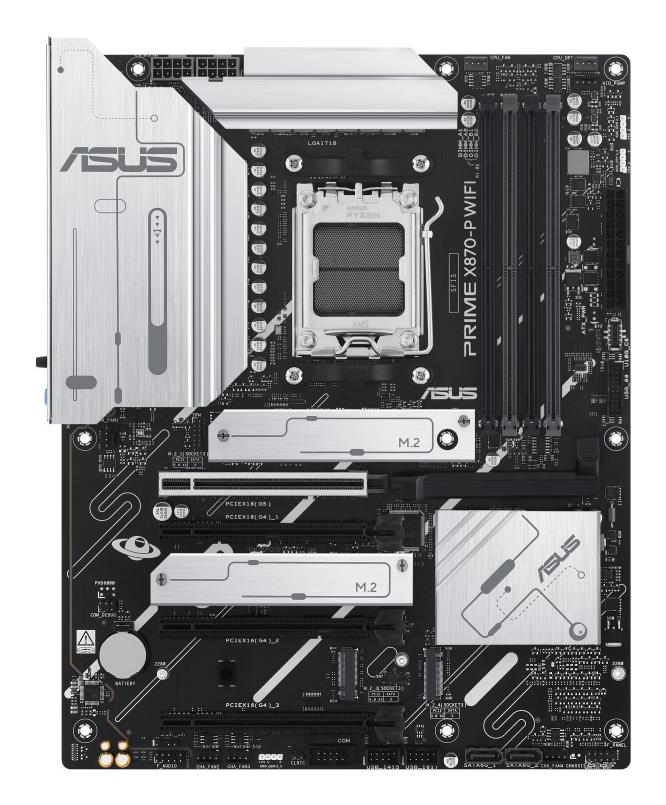

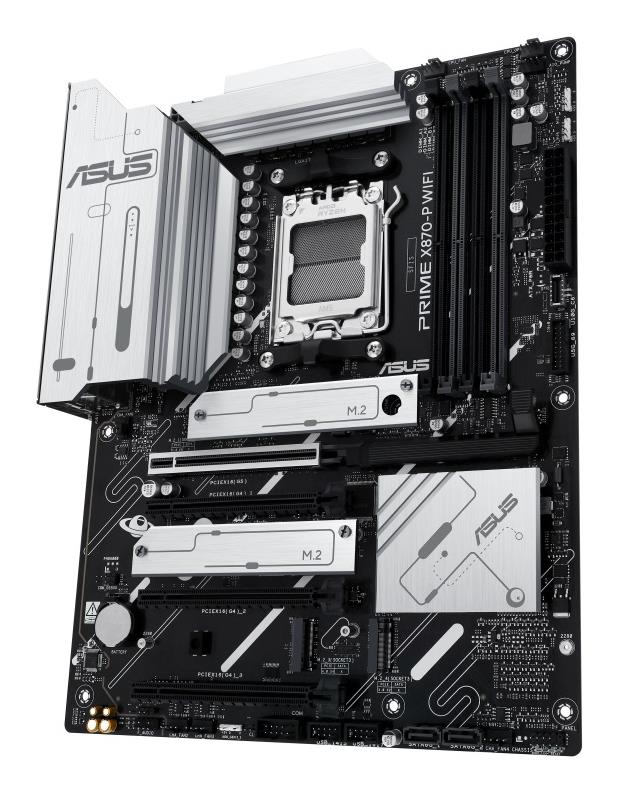

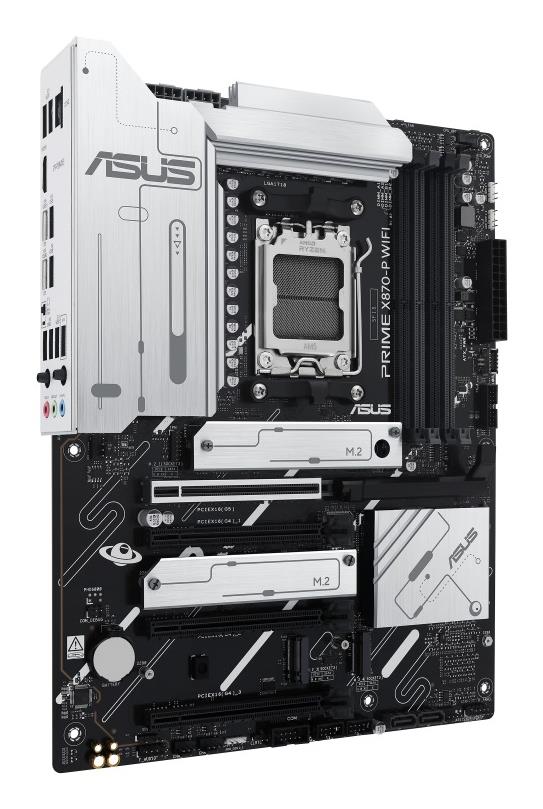

Mainboard|ASUS|AMD X870|SAM5|ATX|Memory DDR5|Memory slots 4|4xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|PRIMEX870-PWIFI
SKU: PRIMEX870-PWIFI
€ 267.07
Pieejams : 9 gab.
AMD X870
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
4xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Weight 1.56 kg
-
Summary: ASUS Prime X870-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
-
Category Code: MBA
-
Unit Box Height: 0.07
-
Unit Box Length: 0.355
-
Unit Box Width: 0.275
-
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
-
Processor manufacturer: AMD
-
Processor socket: Socket AM5
-
Supported processor sockets: Socket AM5
-
ECC ?ompatibility: ECC & non-ECC
-
Maximum internal memory: 192 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 4
-
Supported memory clock speed (max): 8000 MHz
-
Supported memory types: DDR5-SDRAM
-
Unbuffered memory: Y
-
Number of HDDs supported: 2
-
Number of storage drives supported: 6
-
RAID levels: 0/1/10/5
-
RAID support: Y
-
Supported storage drive interfaces: M.2,SATA III
-
Supported storage drive types: HDD & SSD
-
On-board graphics card: N
-
Parallel processing technology support: Not supported
-
12V power connector: Y
-
ATX Power connector (24-pin): Y
-
CPU fan connector: Y
-
EPS power connector (8-pin): Y
-
Front panel audio connector: Y
-
Number of chassis fan connectors: 4
-
Number of COM connectors: 1
-
Number of SATA III connectors: 2
-
RGB LED pin header: Y
-
TPM connector: Y
-
USB 2.0 connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
-
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
-
DisplayPort version: 1.4a
-
Ethernet LAN (RJ-45) ports: 1
-
HDMI ports quantity: 1
-
HDMI version: 2.1
-
Line-in: Y
-
Microphone in: Y
-
USB 2.0 ports quantity: 4
-
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
-
USB4 Gen 2x2 ports quantity: 2
-
Bluetooth: Y
-
Bluetooth version: 5.4
-
Ethernet interface type: 2.5 Gigabit Ethernet
-
Ethernet LAN: Y
-
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
-
Wi-Fi: Y
-
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Cooling type: Passive
-
Motherboard chipset: AMD X870
-
Motherboard chipset family: AMD
-
Motherboard form factor: ATX
-
Power source type: ATX
-
Product colour: Black
-
Windows operating systems supported: Windows 10/Windows 11
-
Number of M.2 (M) slots: 4
-
PCI Express x16 (Gen 4.x) slots: 3
-
PCI Express x16 (Gen 5.x) slots: 1
-
BIOS memory size: 256 Mbit
-
BIOS type: UEFI AMI
-
Package depth: 273 mm
-
Package height: 68 mm
-
Package weight: 1560 g
-
Package width: 353 mm
-
Depth: 244 mm
-
Height: 48 mm
-
Width: 305 mm
-
Cables included: SATA
-
Back-to-BIOS button: Y
-
Weight: 1560 g
-
Model: PRIME X870-P WIFI
-
Unit Calculated Volume: 0.008186 cubm
-
Unit Calculated Weight: 2.19 kg
