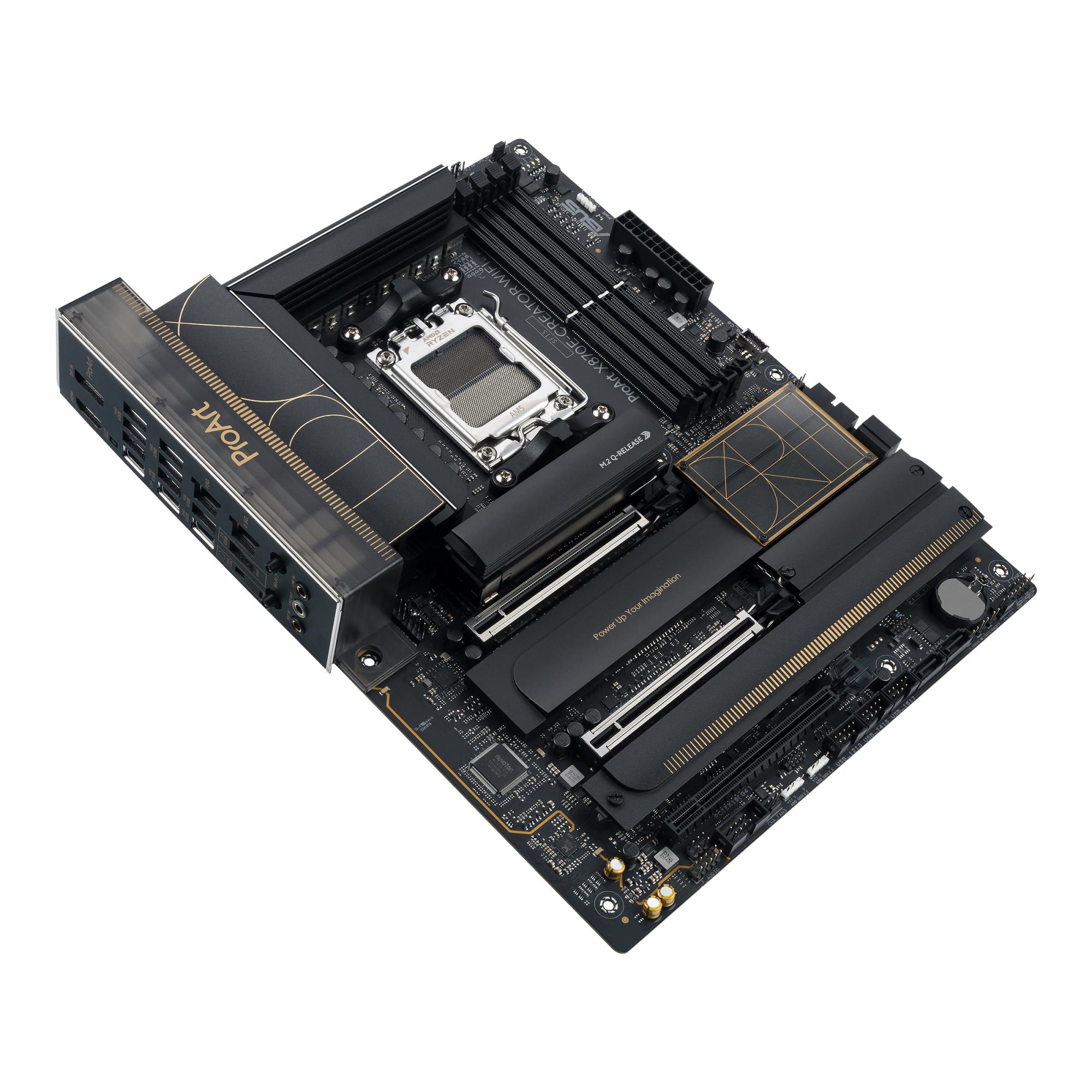

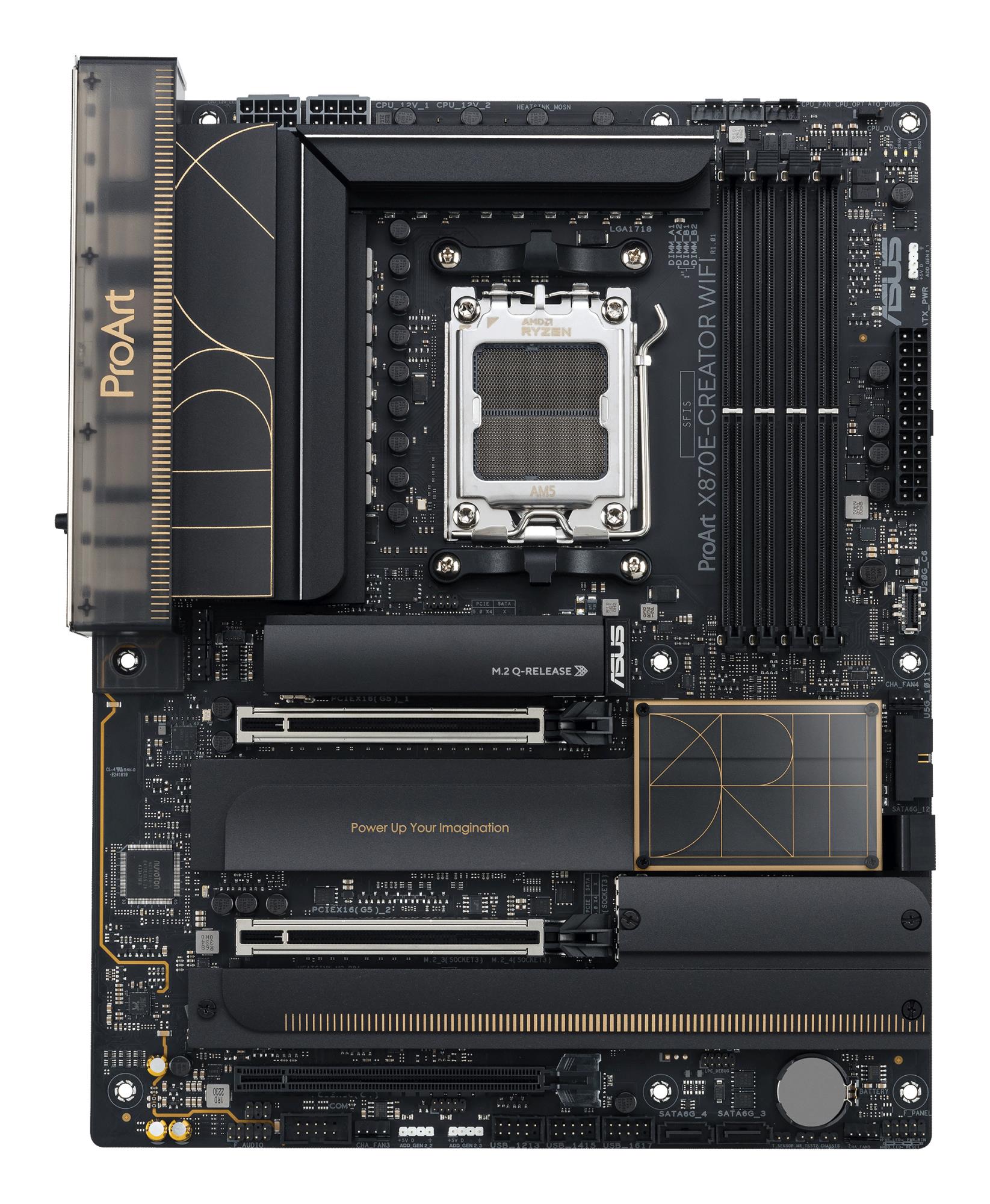

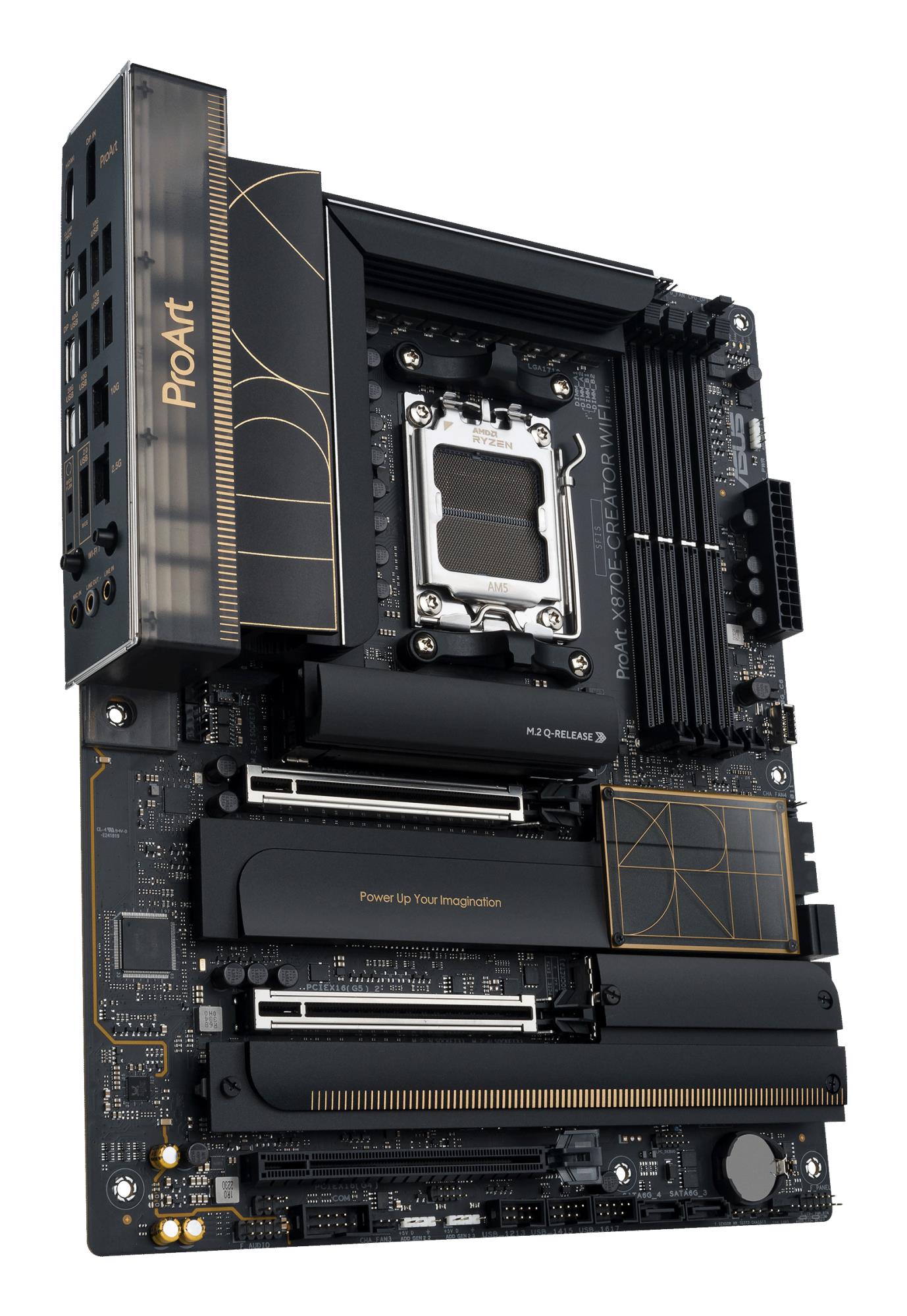

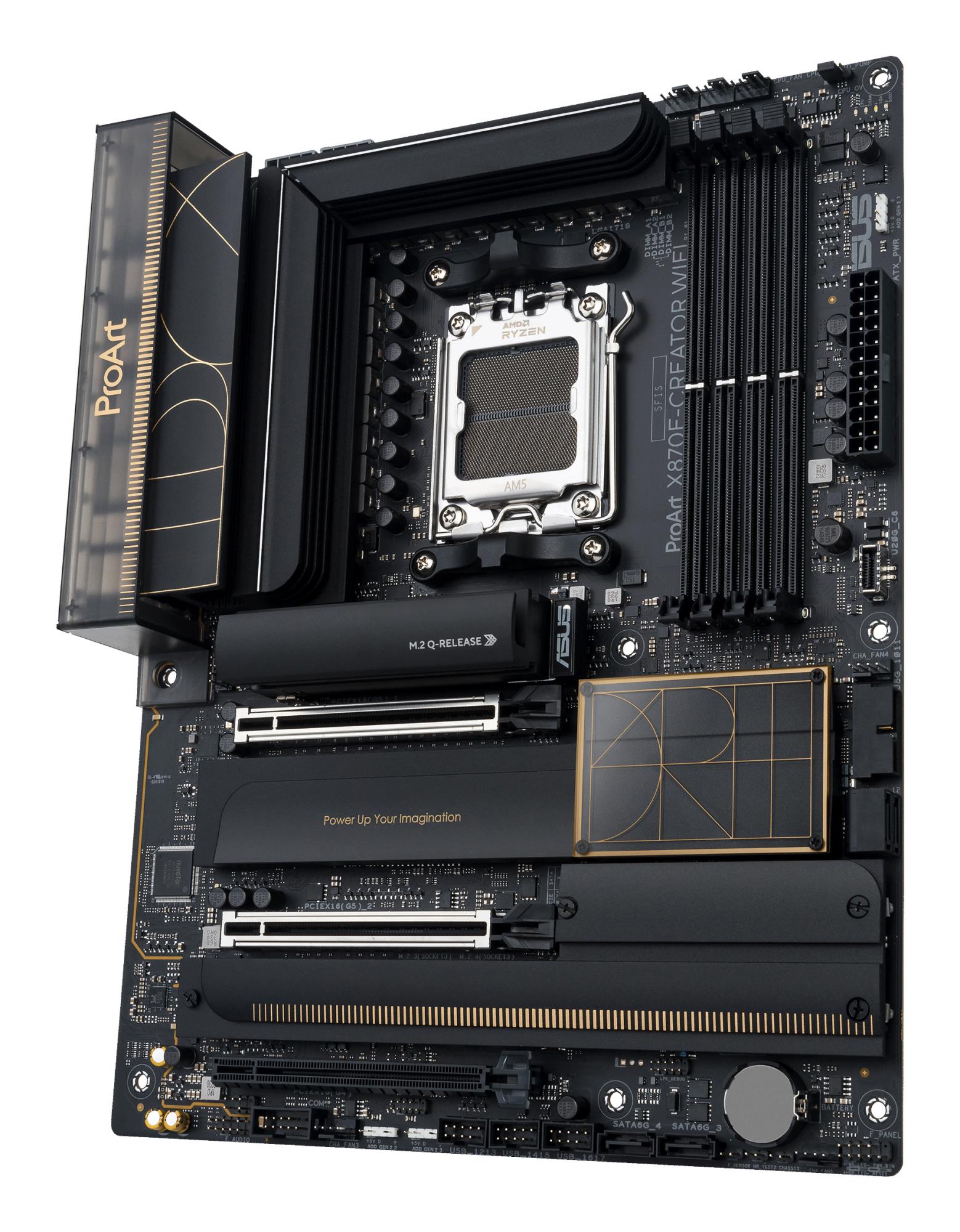

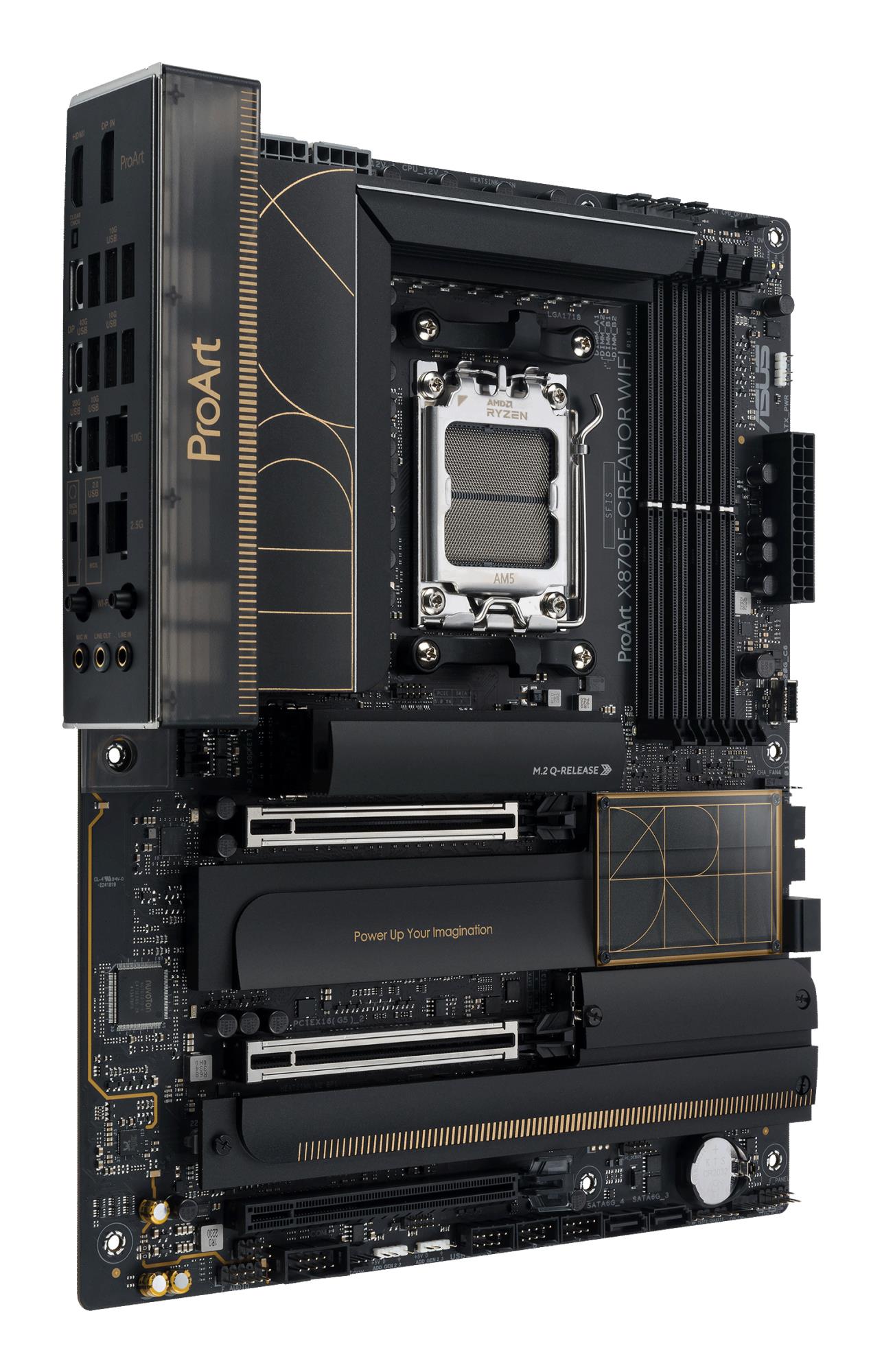

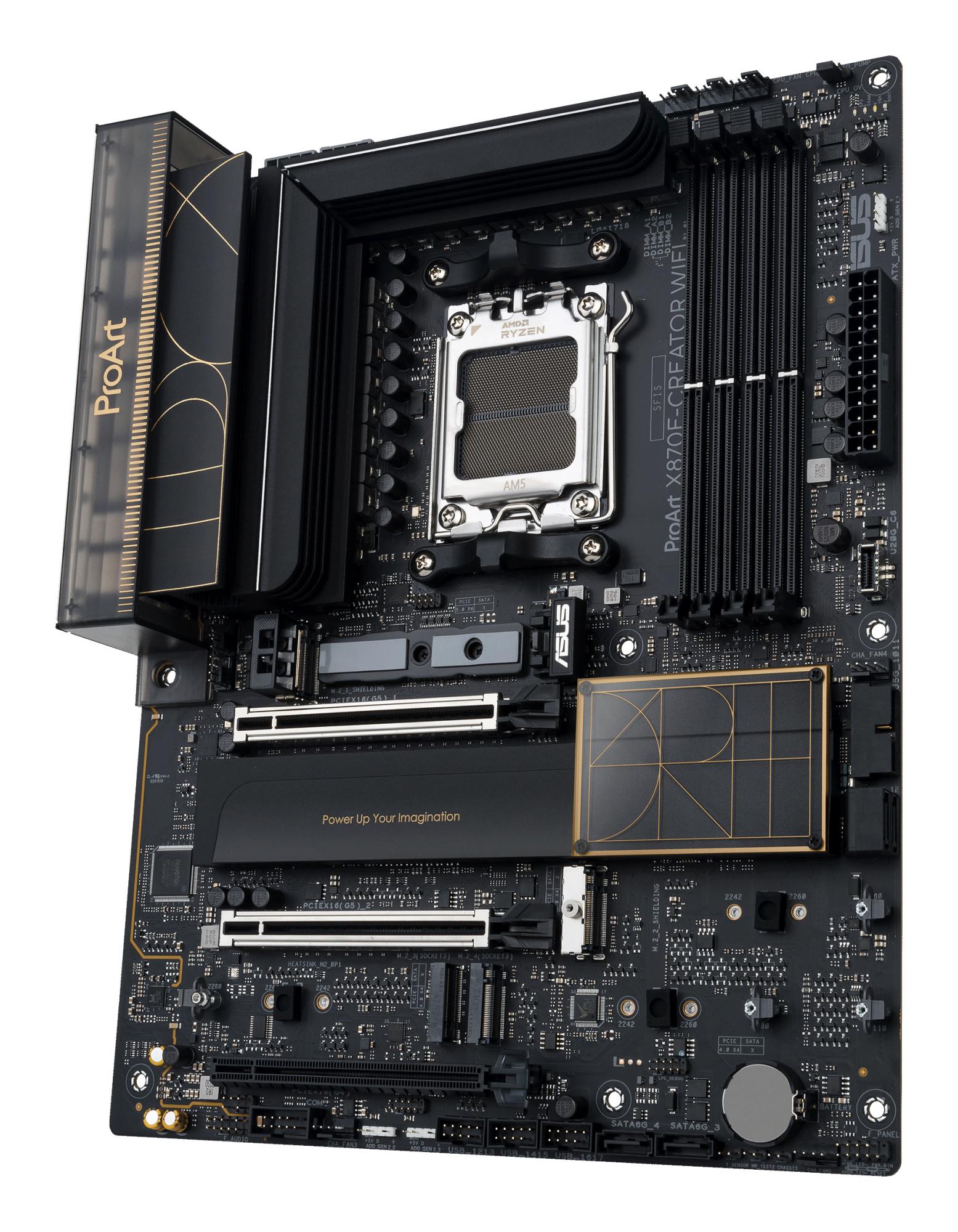

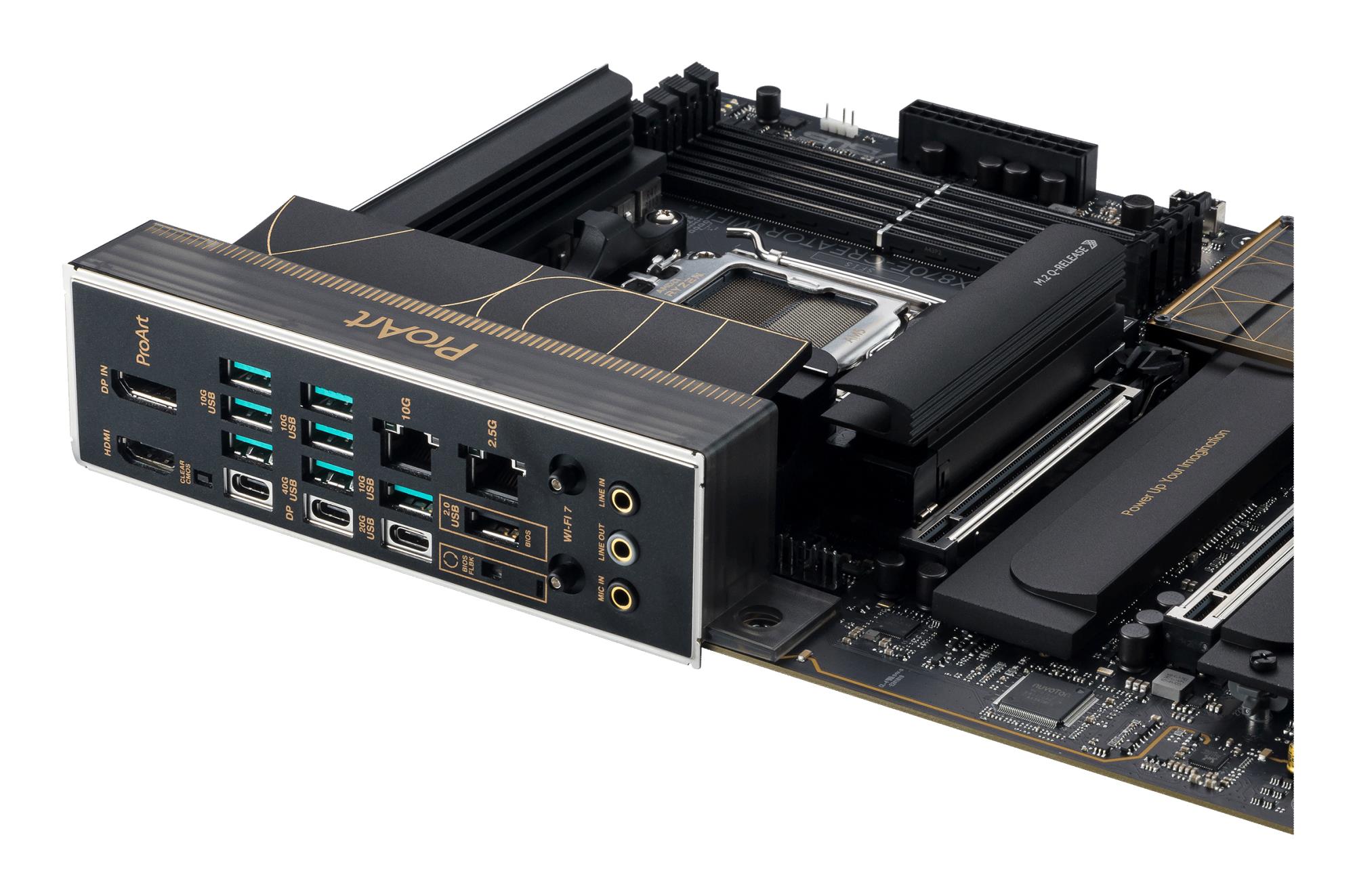

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|3xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|1xUSB 2.0|7xUSB 3.2|3xUSB-C|1xRJ45|3xAudio port|PROARTX870E-CREATORWIFI
SKU: PROARTX870E-CREATORWIFI
€ 516.13
Pieejams : 30 gab.
AMD X870E
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
1xUSB 2.0 ports quantity
7xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
-
Summary: ASUS ProArt X870E-CREATOR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
-
Category Code: MBA
-
Unit Box Height: 0.09
-
Unit Box Length: 0.36
-
Unit Box Width: 0.285
-
Processor manufacturer: AMD
-
Processor socket: Socket AM5
-
Supported processor sockets: Socket AM5
-
ECC ?ompatibility: ECC & non-ECC
-
Maximum internal memory: 192 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 4
-
Supported memory types: DDR5-SDRAM
-
Unbuffered memory: Y
-
Number of HDDs supported: 4
-
Number of storage drives supported: 8
-
RAID levels: 0/1/10/5
-
RAID support: Y
-
Supported storage drive interfaces: M.2,SATA III
-
Supported storage drive types: HDD & SSD
-
Parallel processing technology support: Not supported
-
12V power connector: Y
-
ATX Power connector (24-pin): Y
-
Chassis intrusion connector: Y
-
CPU fan connector: Y
-
Front panel audio connector: Y
-
Number of chassis fan connectors: 5
-
Number of COM connectors: 1
-
Number of SATA III connectors: 4
-
USB 2.0 connectors: 3
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
-
USB 3.2 Gen 2x2 connectors: 1
-

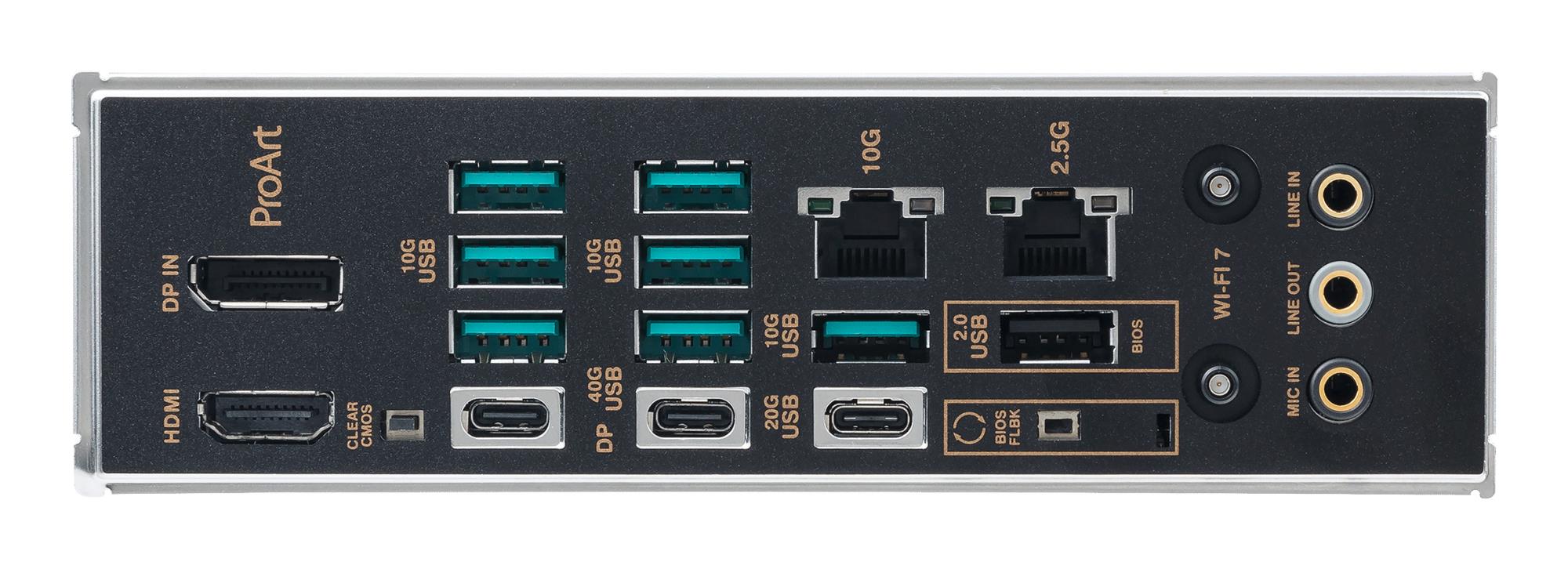

DisplayPorts quantity: 1
-
Ethernet LAN (RJ-45) ports: 2
-
HDMI ports quantity: 1
-
Microphone in: Y
-
USB 2.0 ports quantity: 1
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
-
USB 3.2 Gen 2x2 Type-C ports quantity: 1
-
USB4 Gen 2x2 ports quantity: 2
-

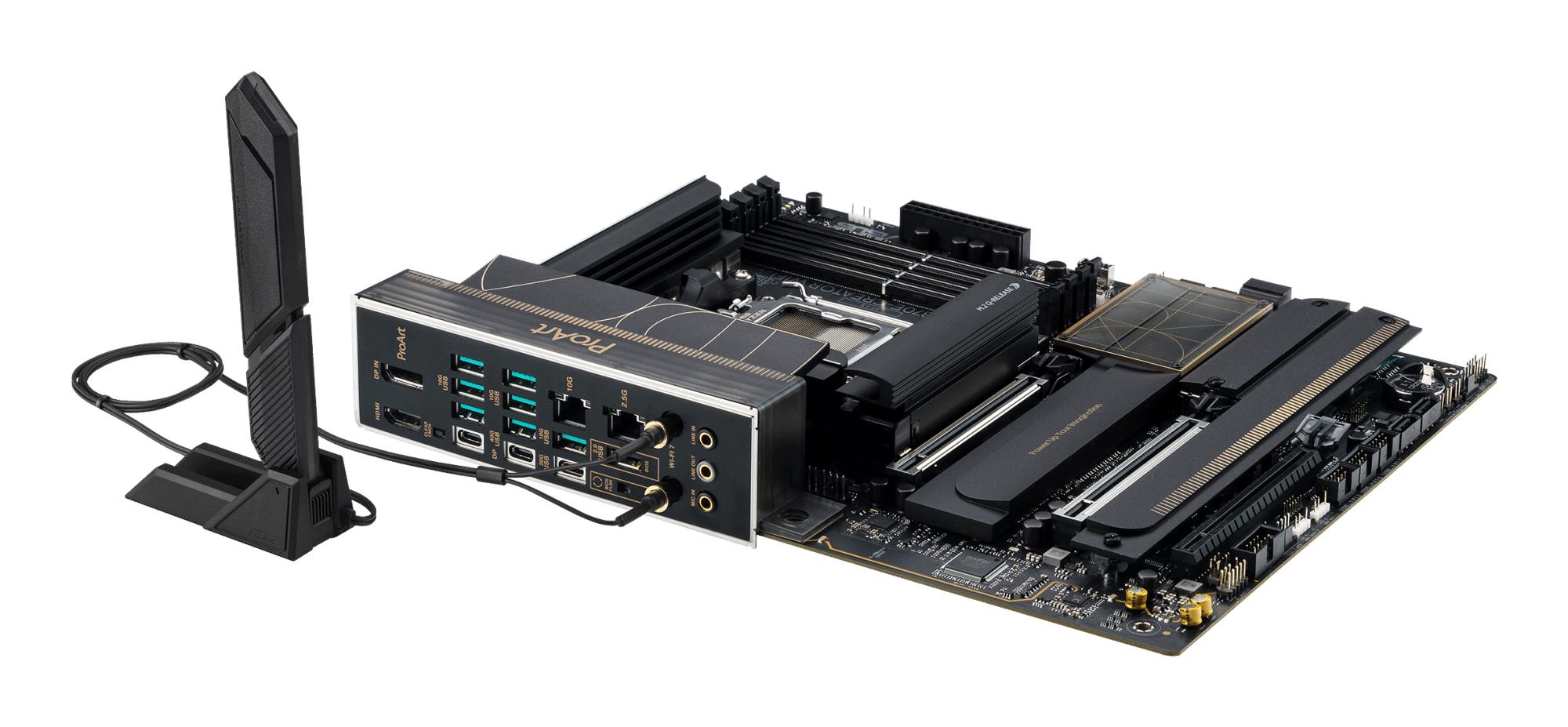

WiFi-AP antenna jack: 1
-
Bluetooth: Y
-
Bluetooth version: 5.4
-
Ethernet interface type: 10 Gigabit Ethernet/2.5 Gigabit Ethernet
-
Ethernet LAN: Y
-
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
-
Wi-Fi: Y
-
Wi-Fi standards: Wi-Fi 7 (802.11be)
-
Audio chip: Realtek S1220A
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Motherboard chipset: AMD X870E
-
Motherboard chipset family: AMD
-
Motherboard form factor: ATX
-
Windows operating systems supported: Windows 11
-
Number of M.2 (M) slots: 4
-
PCI Express x16 (Gen 4.x) slots: 1
-
PCI Express x16 (Gen 5.x) slots: 2
-
BIOS memory size: 256 Mbit
-
BIOS type: UEFI AMI
-
Clear CMOS button: Y
-
Depth: 244 mm
-
Width: 305 mm
-

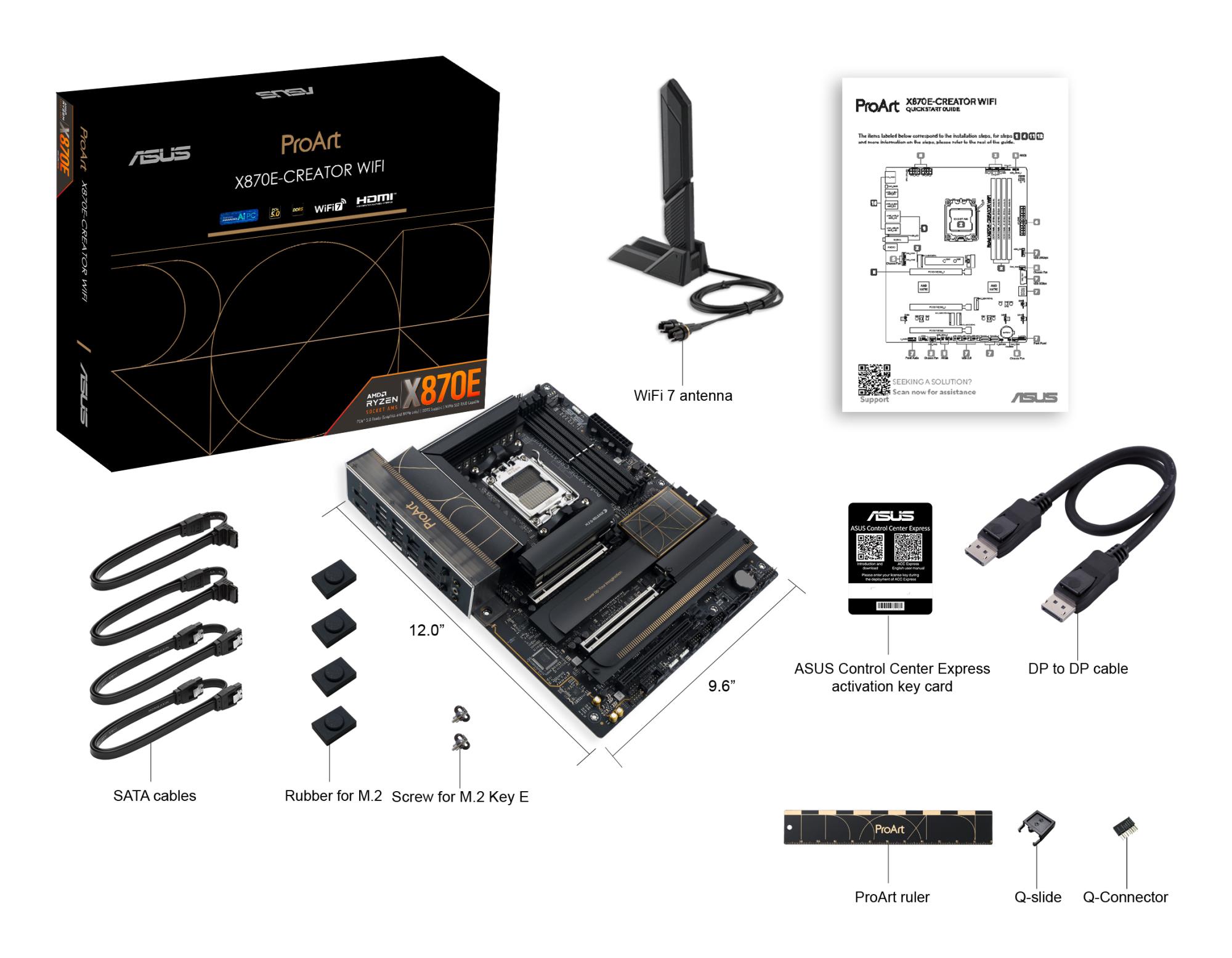

Cables included: DisplayPort,SATA
-
Model: PROART X870E-CREATOR WIFI
-
Unit Calculated Volume: 0.01093 cubm
-
Unit Calculated Weight: 2.82 kg
