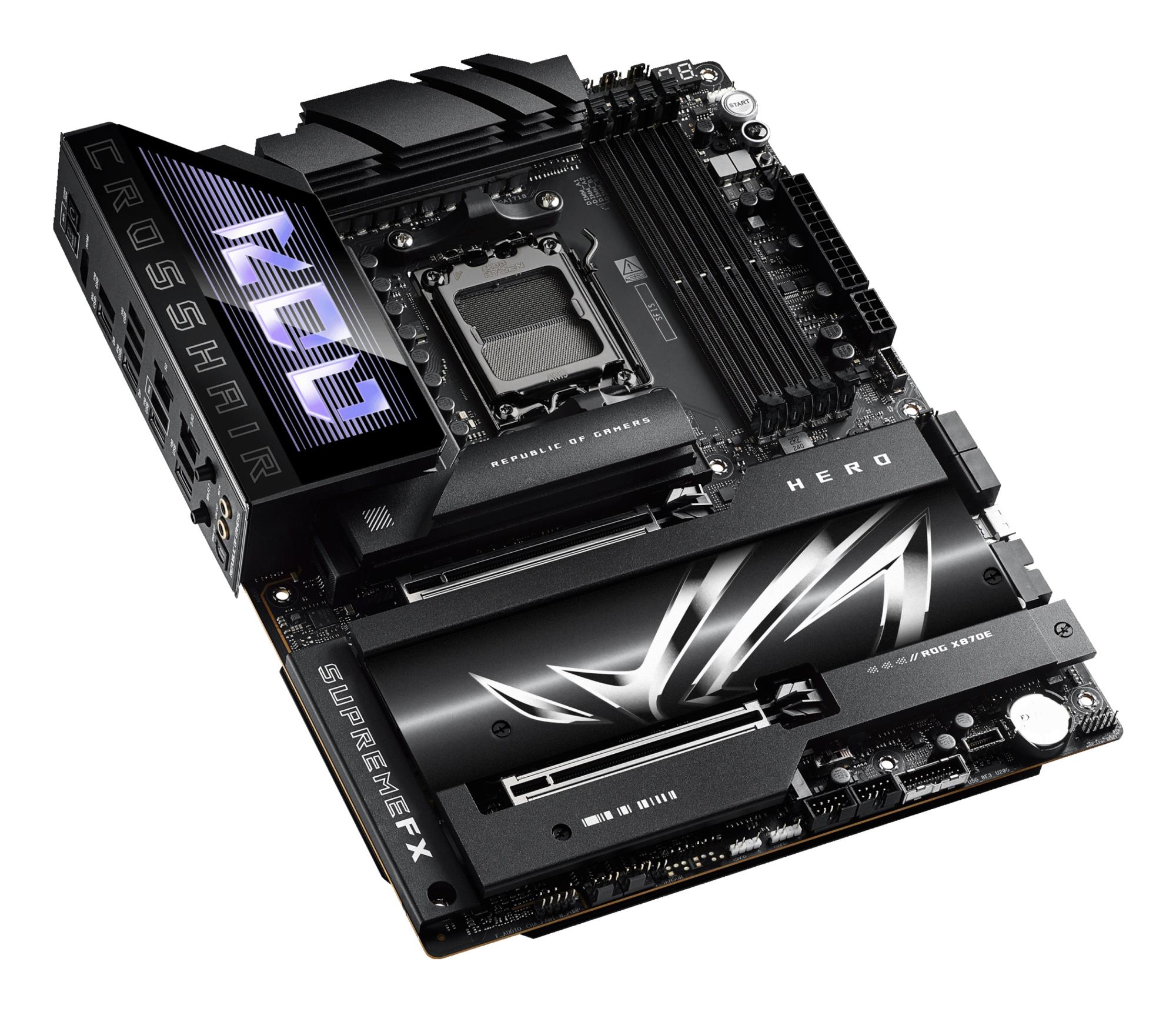

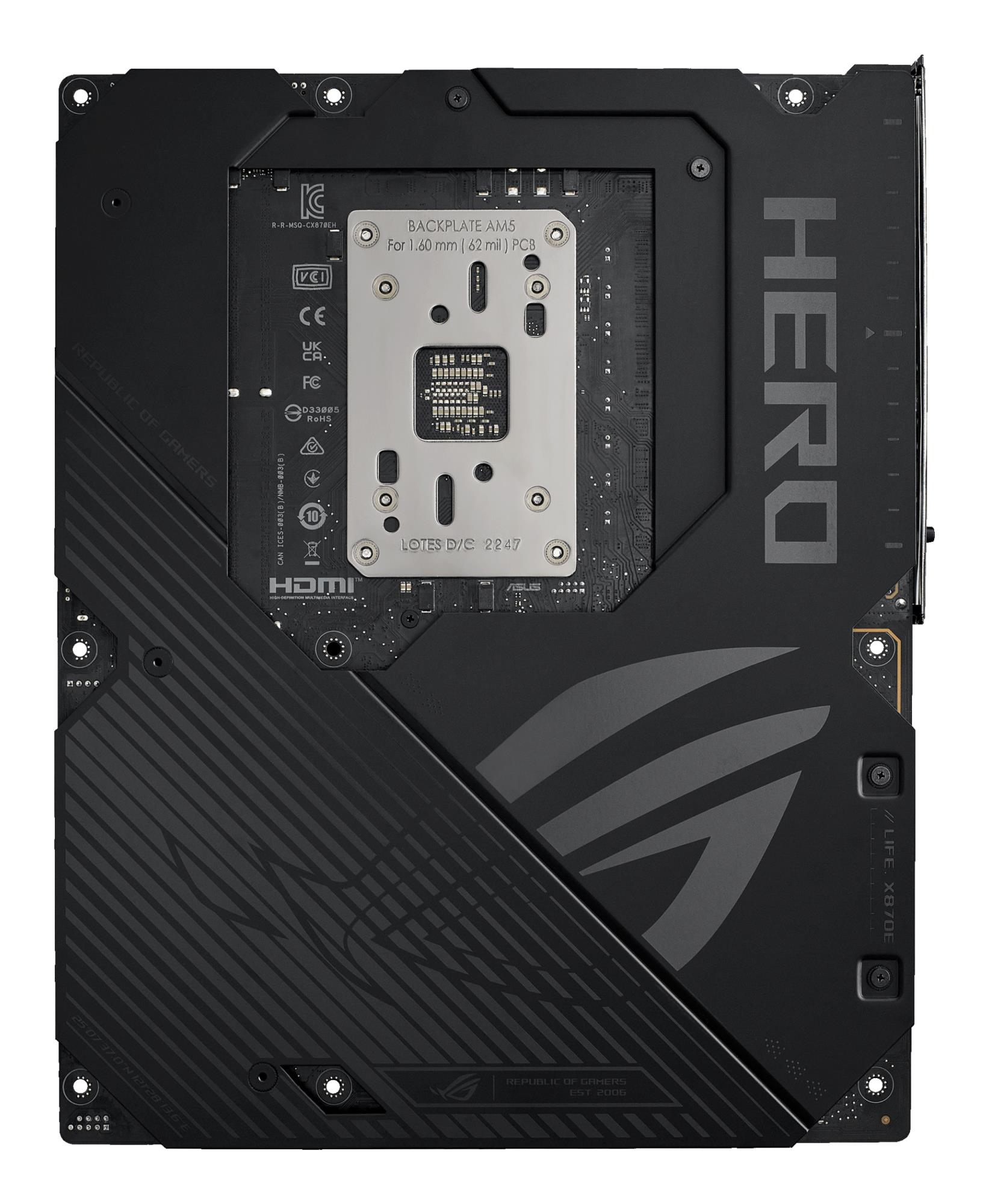

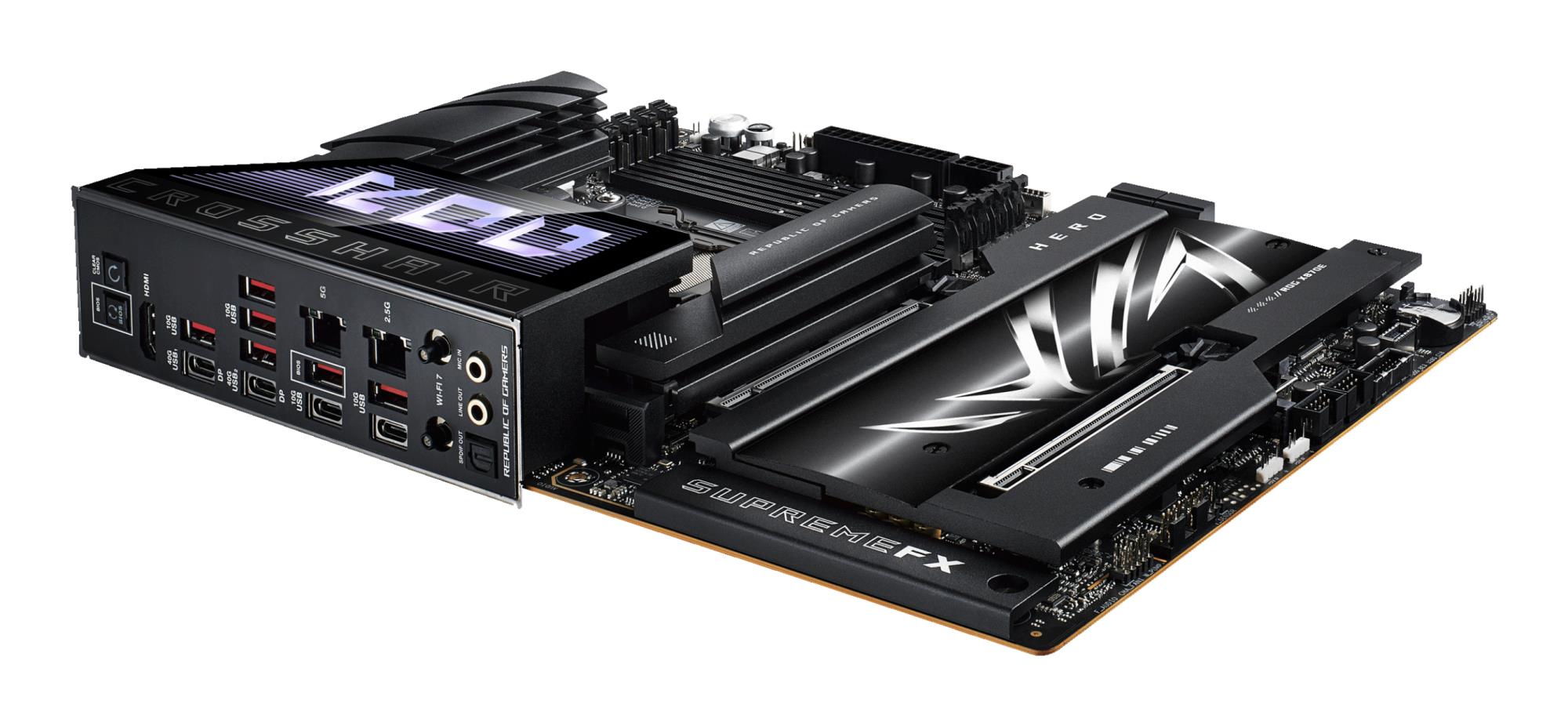

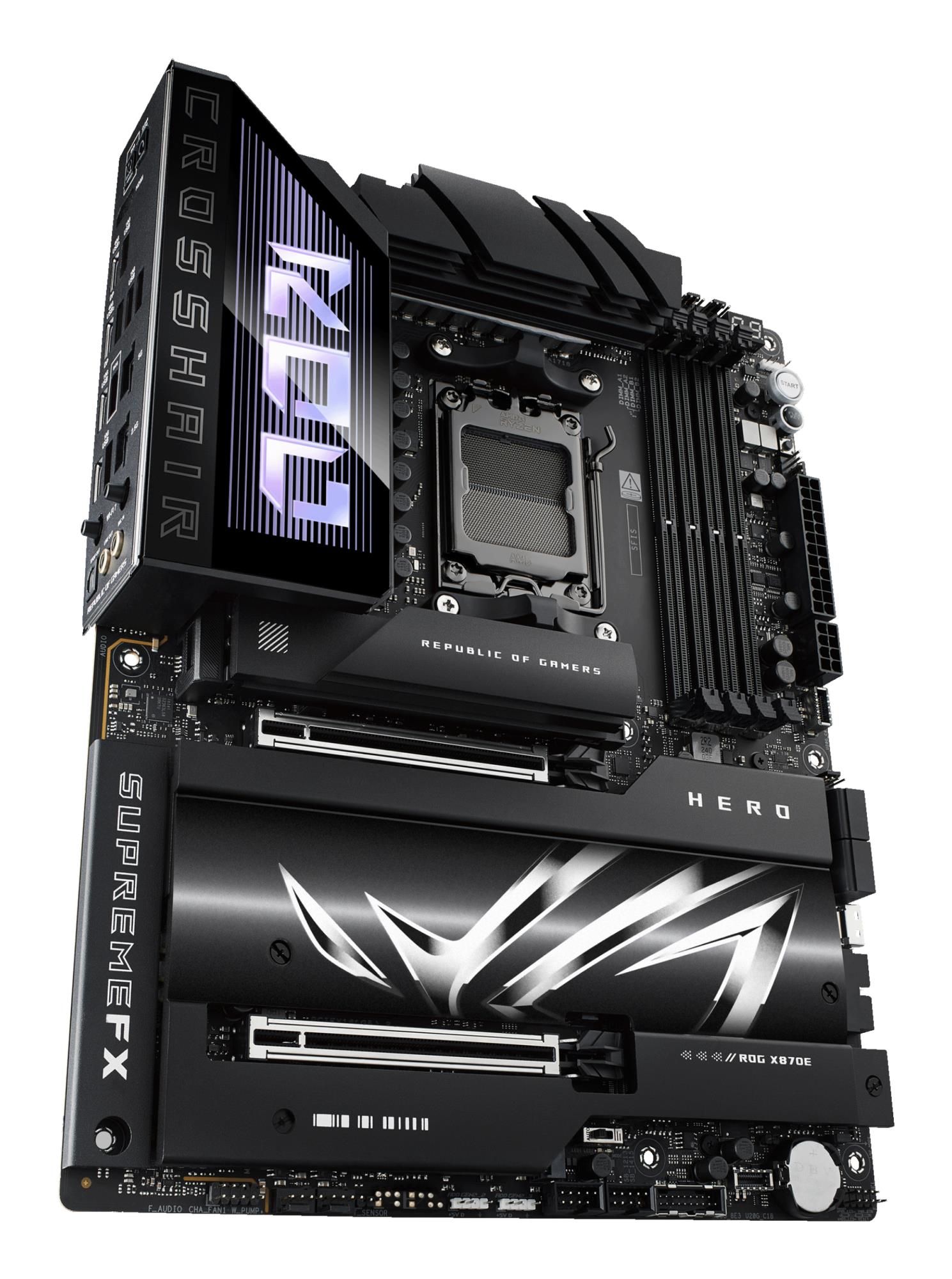

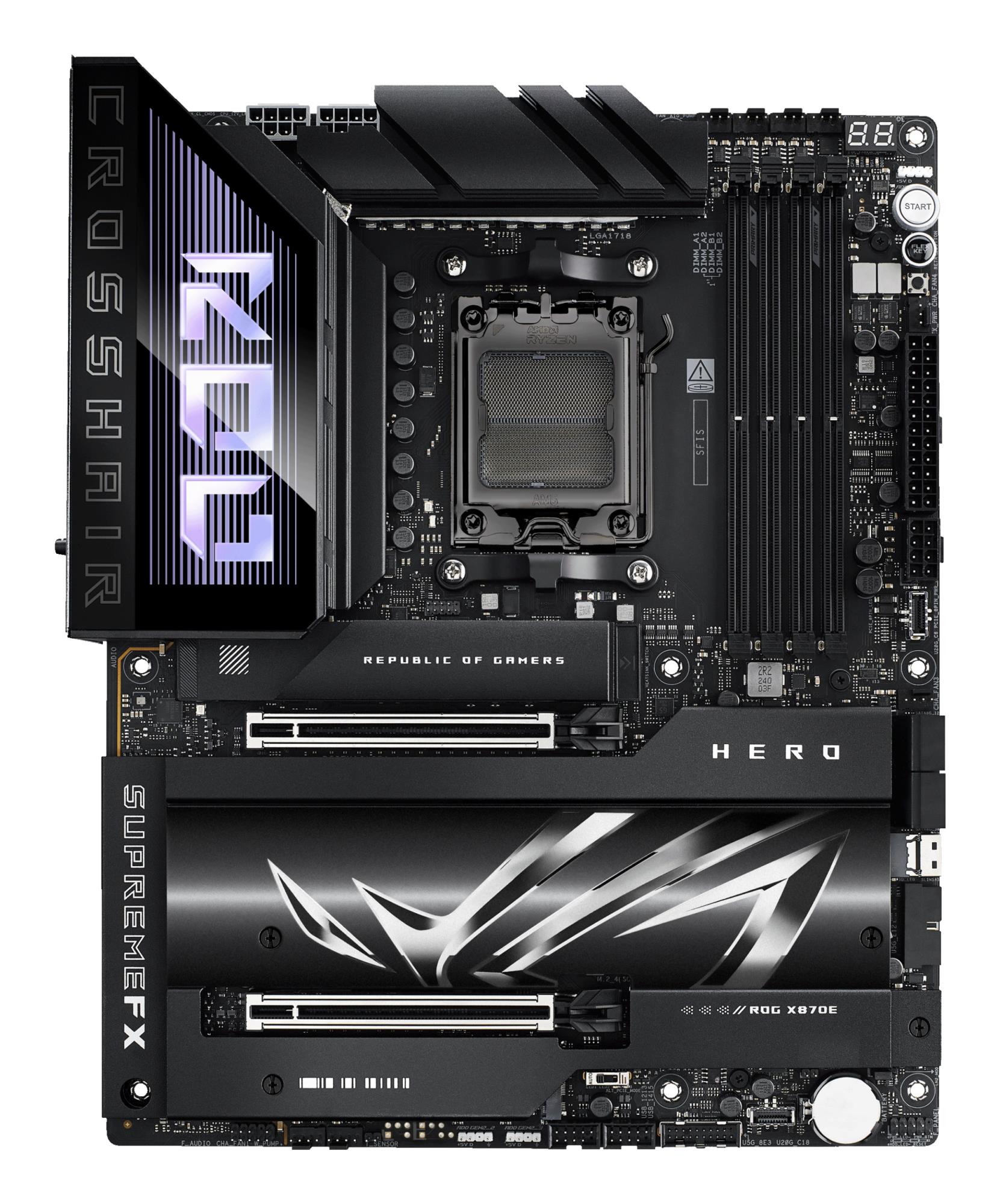

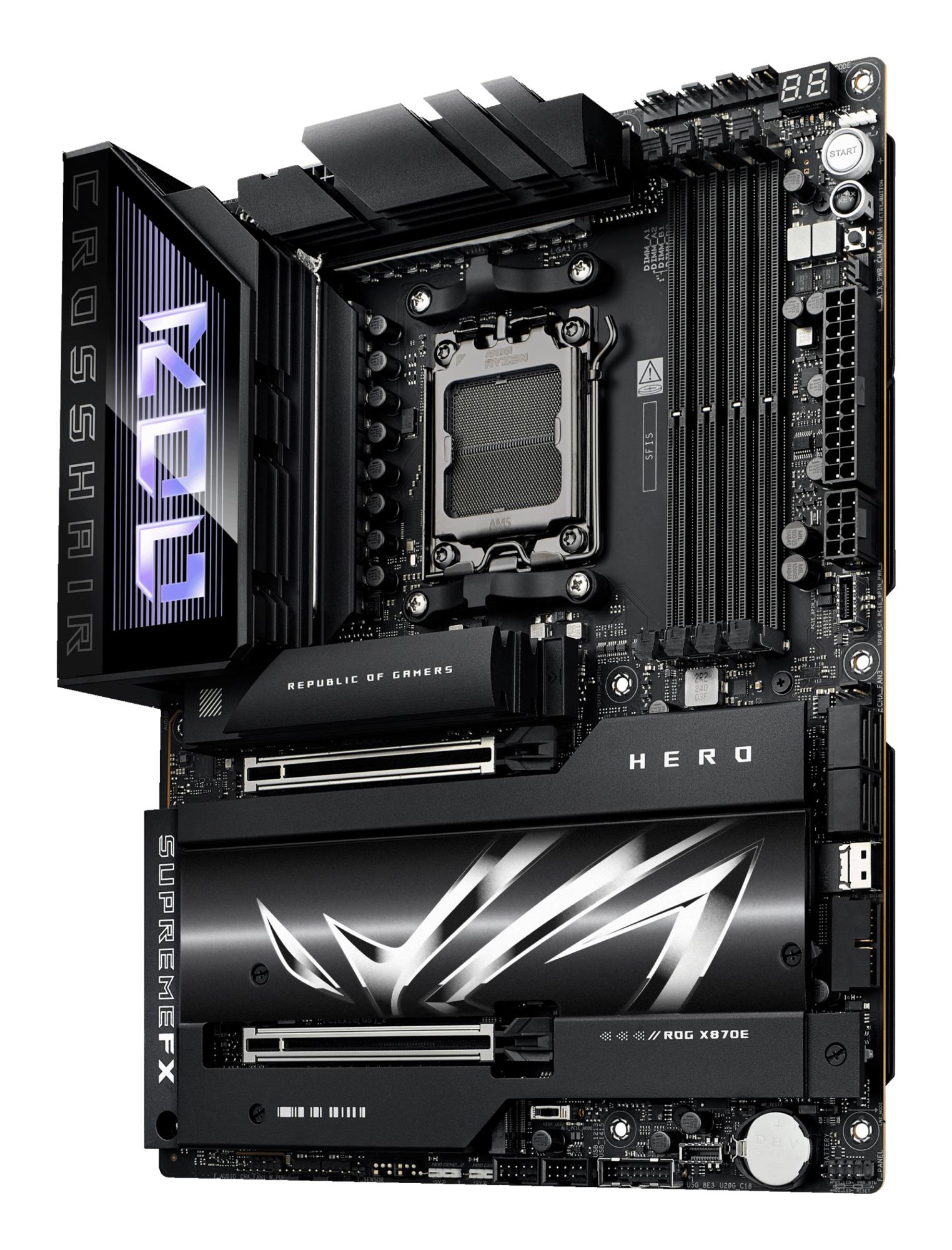

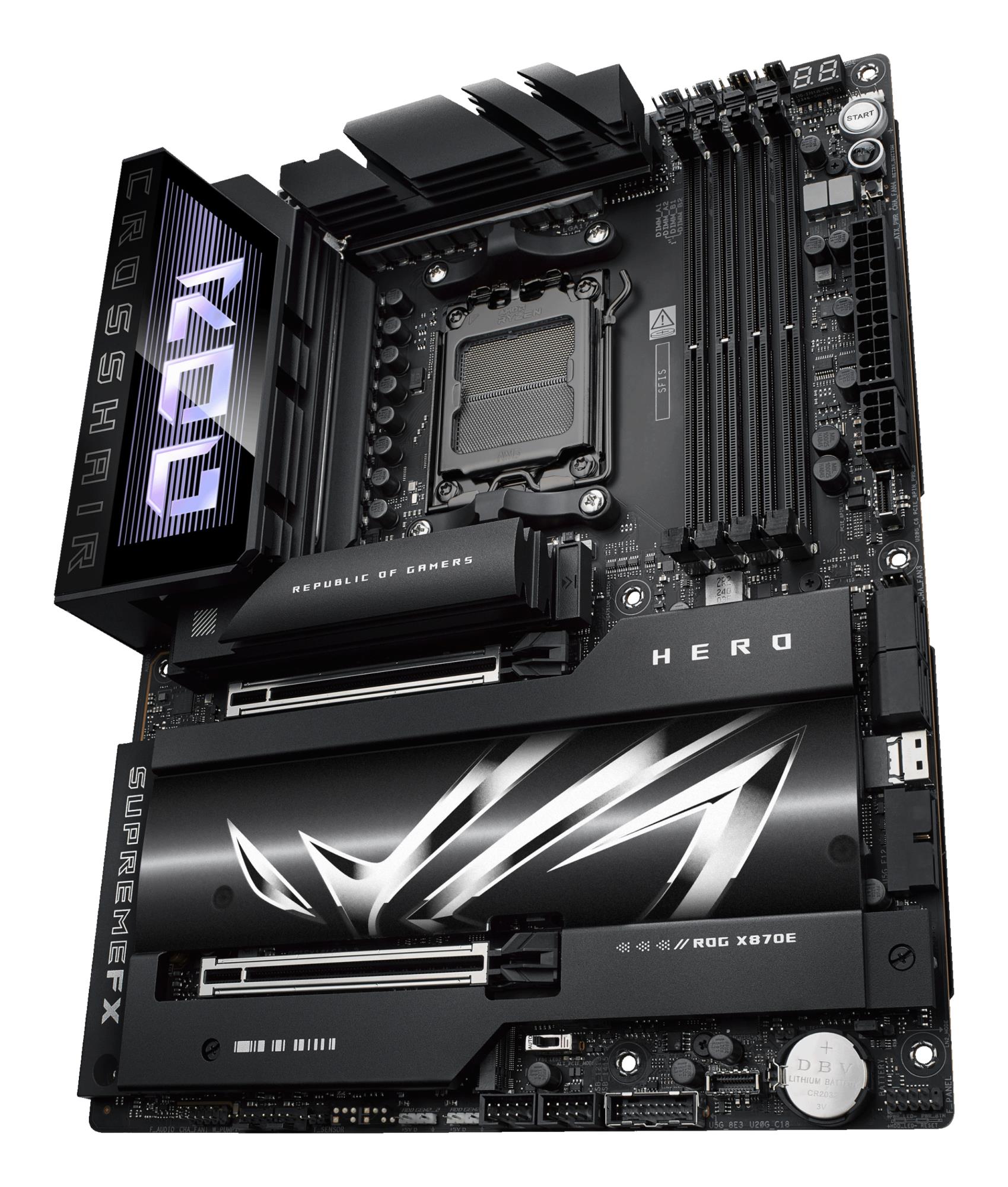

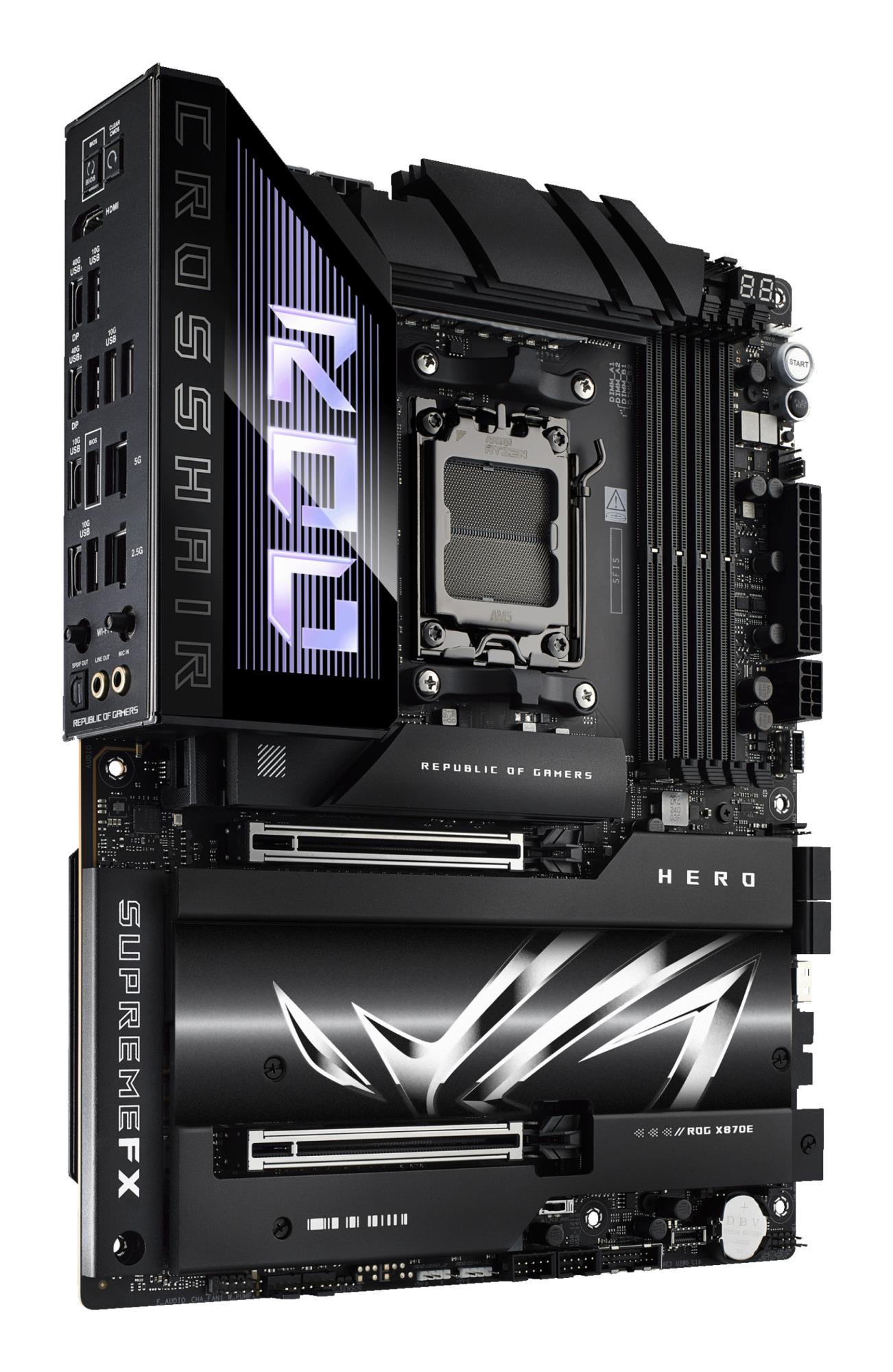

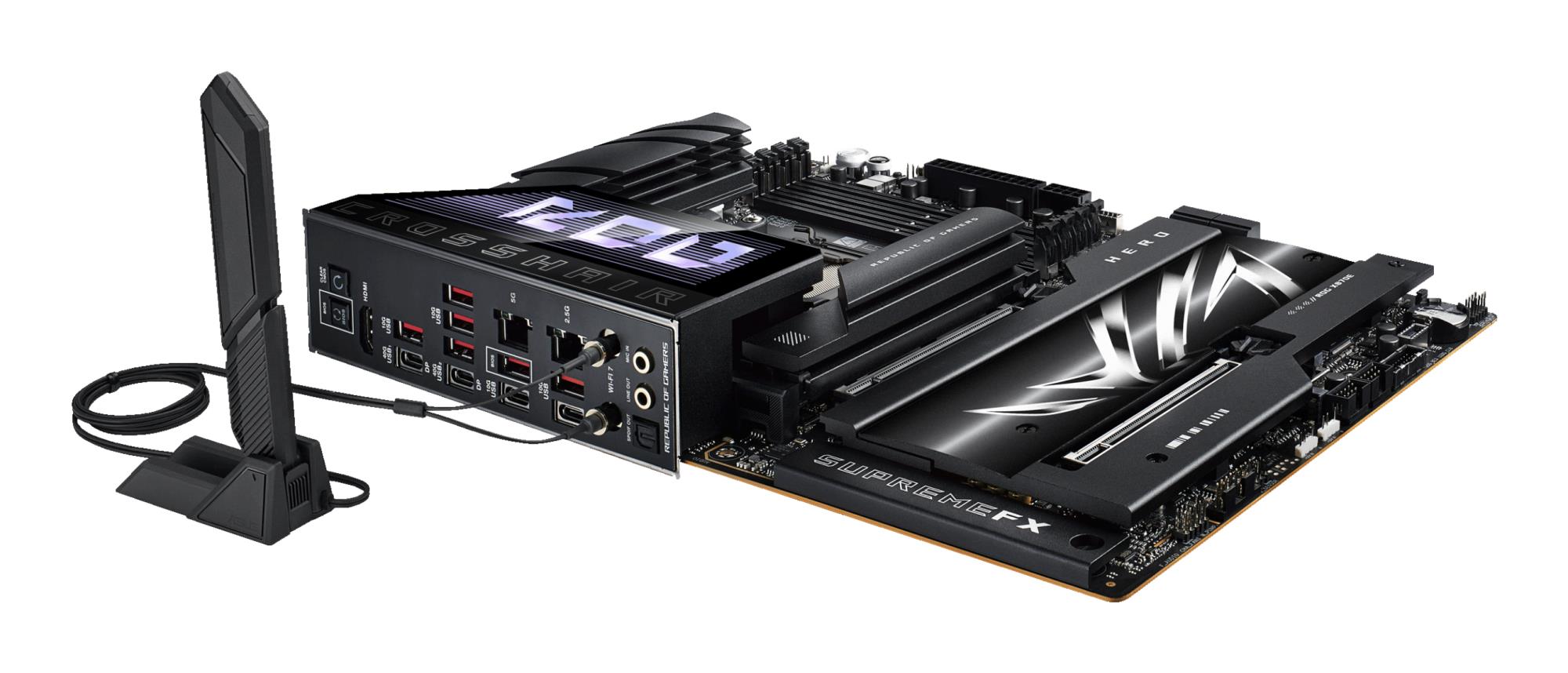

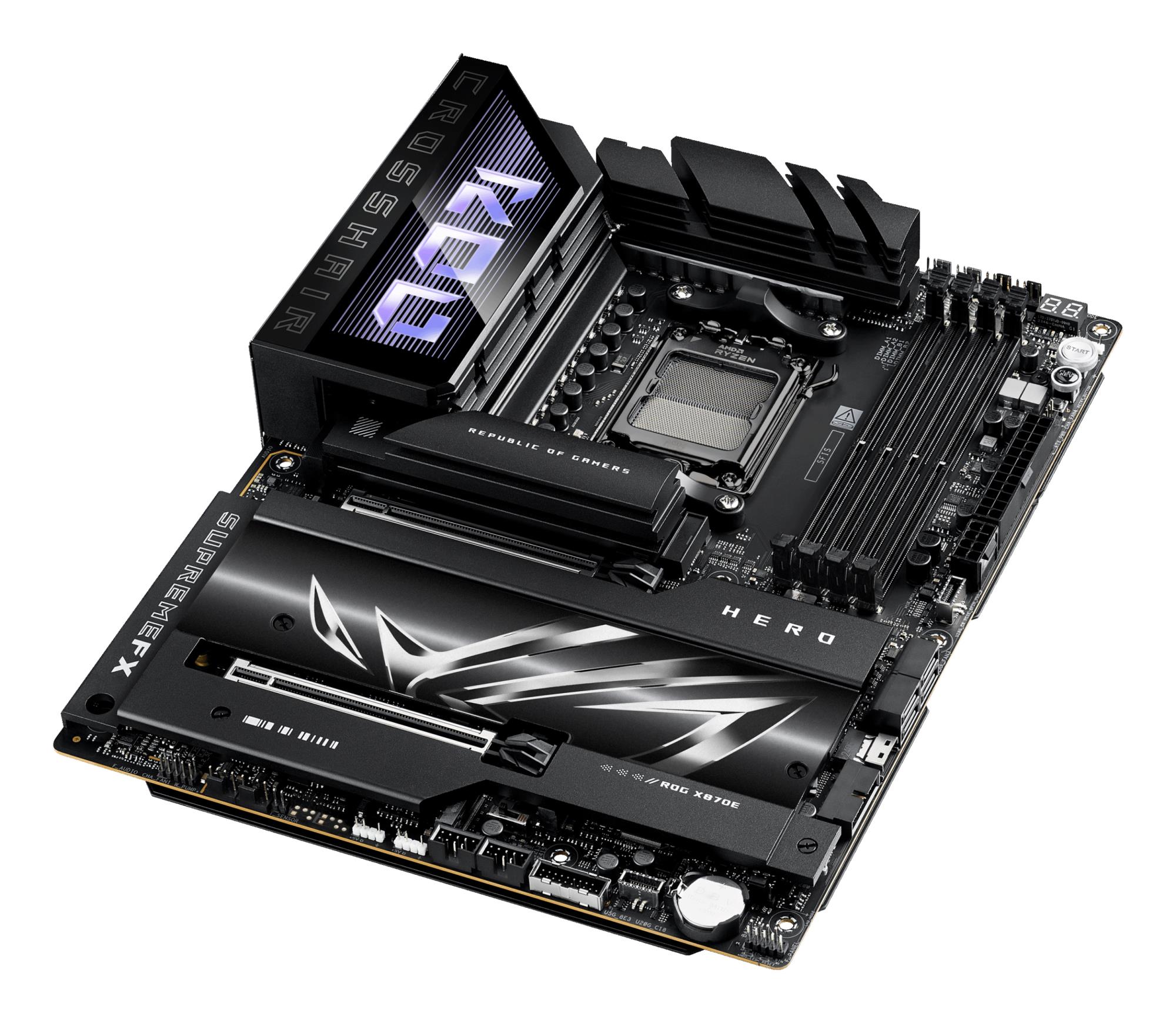

Mainboard|ASUS|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|6xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|1xRJ45|ROGCROSSHAIRX870EHERO
SKU: ROGCROSSHAIRX870EHERO
€ 674.47
Pieejams : 7 gab.
AMD X870E
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III,SlimSAS
6xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Weight 2.55 kg
-
Summary: ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
-
Category Code: MBA
-
Unit Box Height: 0.115
-
Unit Box Length: 0.375
-
Unit Box Width: 0.315
-
Processor manufacturer: AMD
-
Processor socket: Socket AM5
-
Supported processor sockets: Socket AM5
-
ECC ?ompatibility: ECC & non-ECC
-
Maximum internal memory: 192 GB
-
Memory channels: Dual-channel
-
Memory slots type: DIMM
-
Number of memory slots: 4
-
Supported memory types: DDR5-SDRAM
-
Unbuffered memory: Y
-
Number of HDDs supported: 5
-
Number of storage drives supported: 10
-
RAID levels: 0/1/10/5
-
RAID support: Y
-
Supported storage drive interfaces: M.2,SATA III,SlimSAS
-
Supported storage drive types: HDD & SSD
-
Parallel processing technology support: Not supported
-
12V power connector: Y
-
ATX Power connector (24-pin): Y
-
CPU fan connector: Y
-
EPS power connector (8-pin): Y
-
Front panel audio connector: Y
-
Number of chassis fan connectors: 4
-
Number of SATA III connectors: 4
-
USB 2.0 connectors: 2
-
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
-
USB 3.2 Gen 2x2 connectors: 2
-

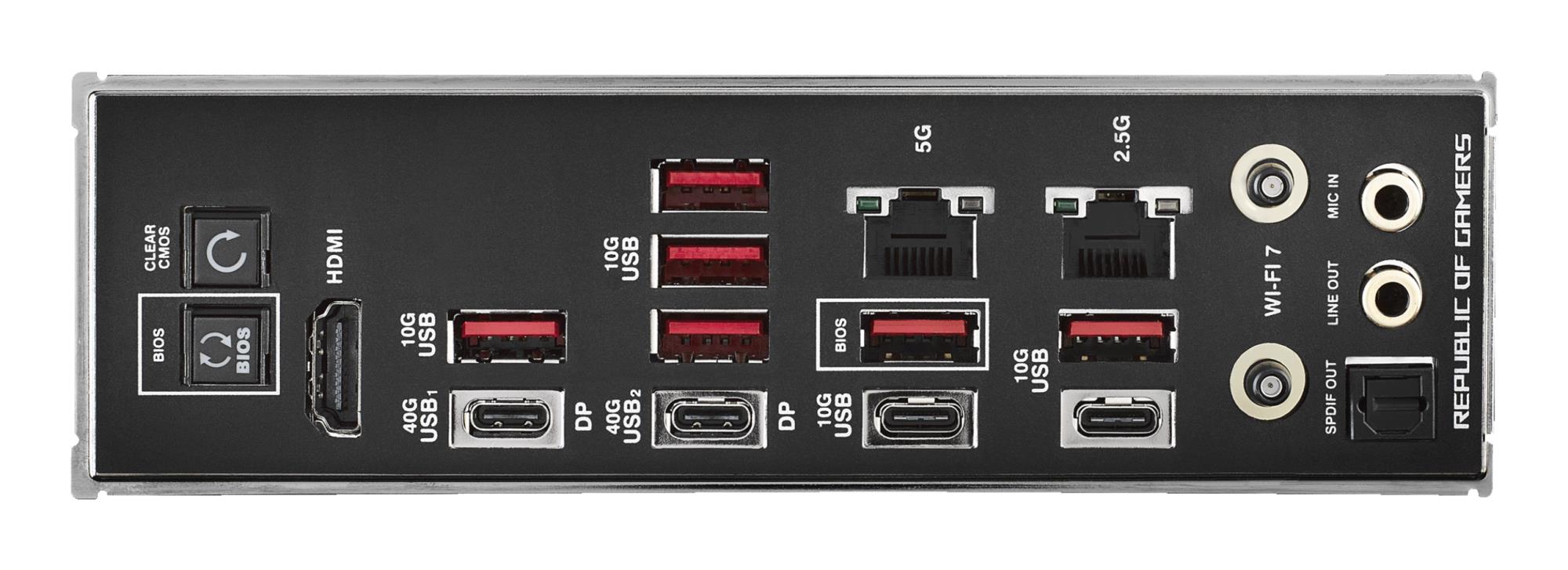

Ethernet LAN (RJ-45) ports: 2
-
HDMI ports quantity: 1
-
Headphone outputs: 1
-
Microphone in: Y
-
S/PDIF out port: Y
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
-
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
-
USB4 Gen 2x2 ports quantity: 2
-
WiFi-AP antenna jack: 1
-
Bluetooth: Y
-
Bluetooth version: 5.4
-
Ethernet interface type: 2.5 Gigabit Ethernet/5 Gigabit Ethernet
-
Ethernet LAN: Y
-
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
-
Wi-Fi: Y
-
Wi-Fi standards: Wi-Fi 7 (802.11be)
-
Audio chip: Realtek ALC4082
-
Audio output channels: 7.1 channels
-
Component for: PC
-
Motherboard chipset: AMD X870E
-
Motherboard chipset family: AMD
-
Motherboard form factor: ATX
-
Windows operating systems supported: Windows 11
-
Number of M.2 (M) slots: 5
-
PCI Express x16 (Gen 4.x) slots: 4
-
PCI Express x16 (Gen 5.x) slots: 2
-
BIOS memory size: 256 Mbit
-
BIOS type: UEFI AMI
-
Clear CMOS button: Y
-
Package depth: 312 mm
-
Package height: 108 mm
-
Package weight: 4265 g
-
Package width: 370 mm
-
Depth: 244 mm
-
Height: 50 mm
-
Width: 305 mm
-

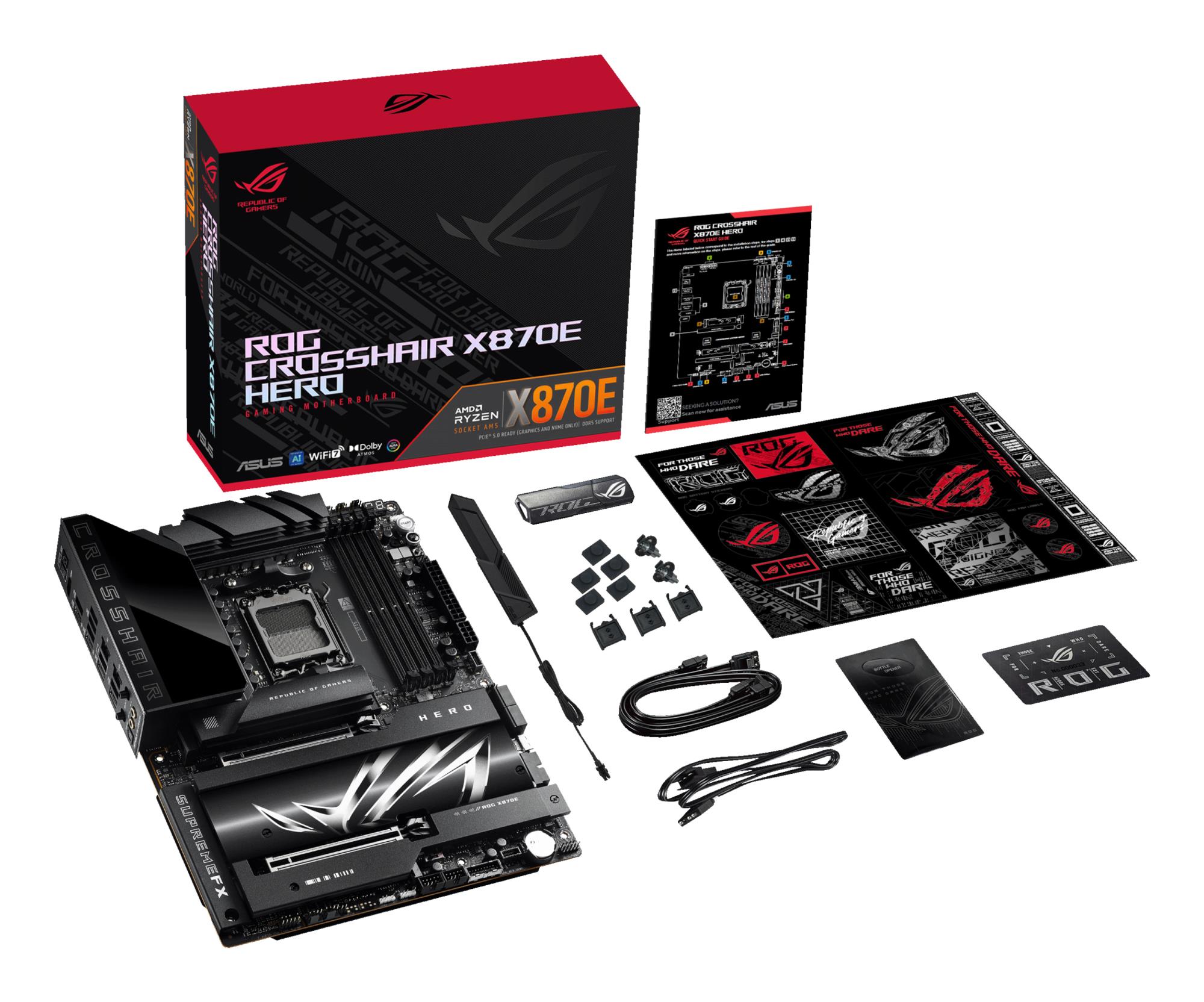

Cables included: SATA
-
Drivers included: Y
-
Weight: 2546 g
-
Model: ROG CROSSHAIR X870E HERO
-
Unit Calculated Volume: 0.01483 cubm
-
Unit Calculated Weight: 4.31 kg
