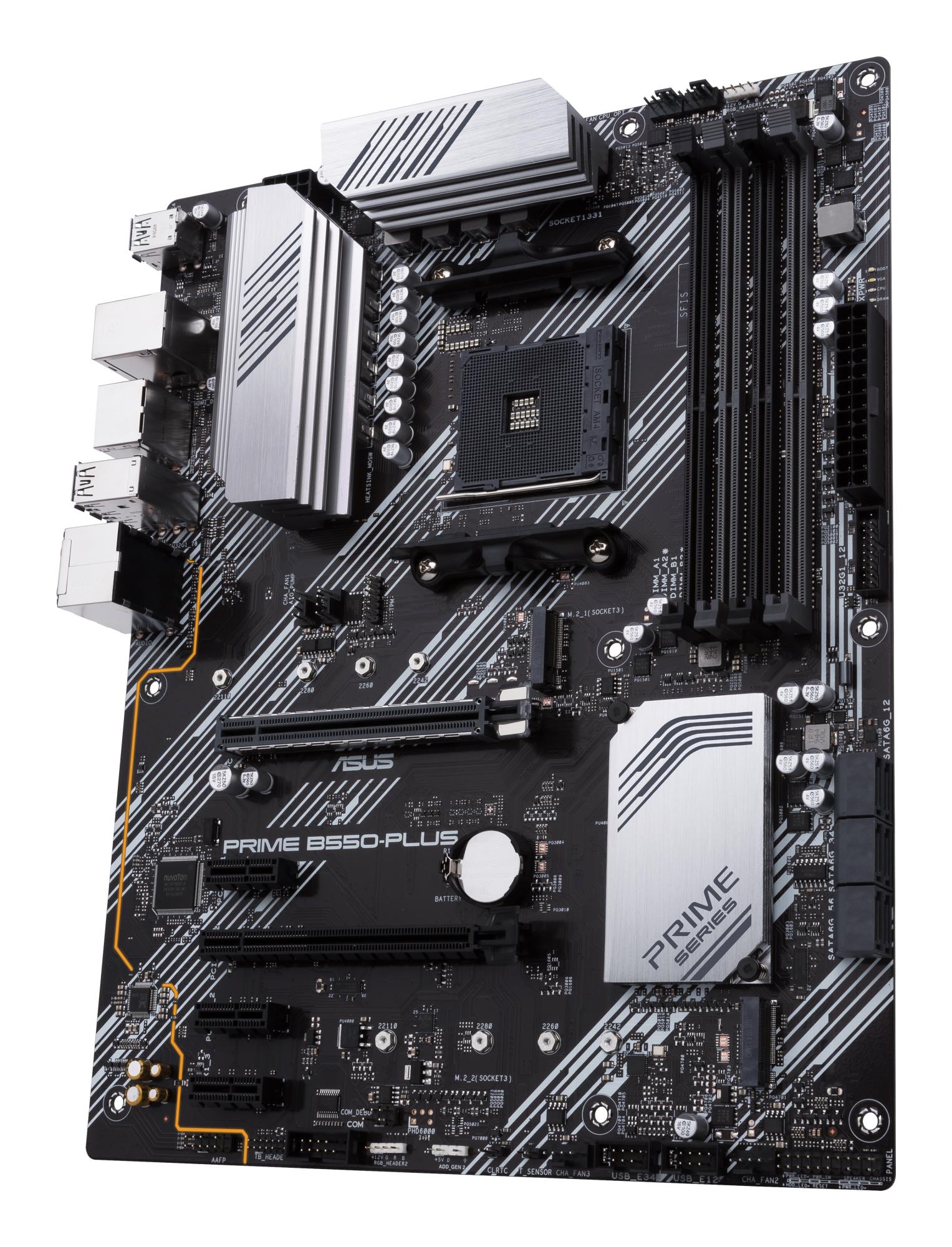

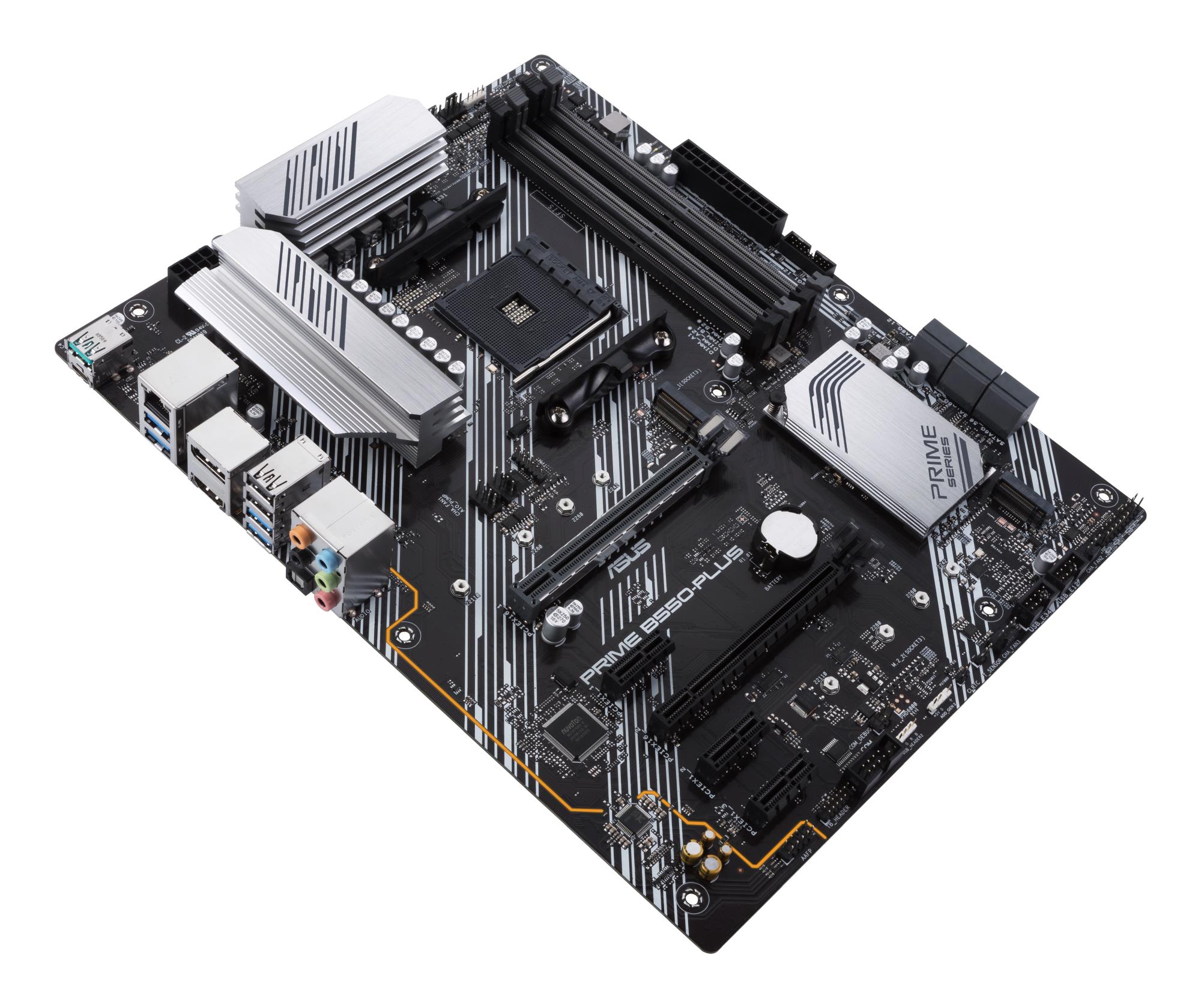

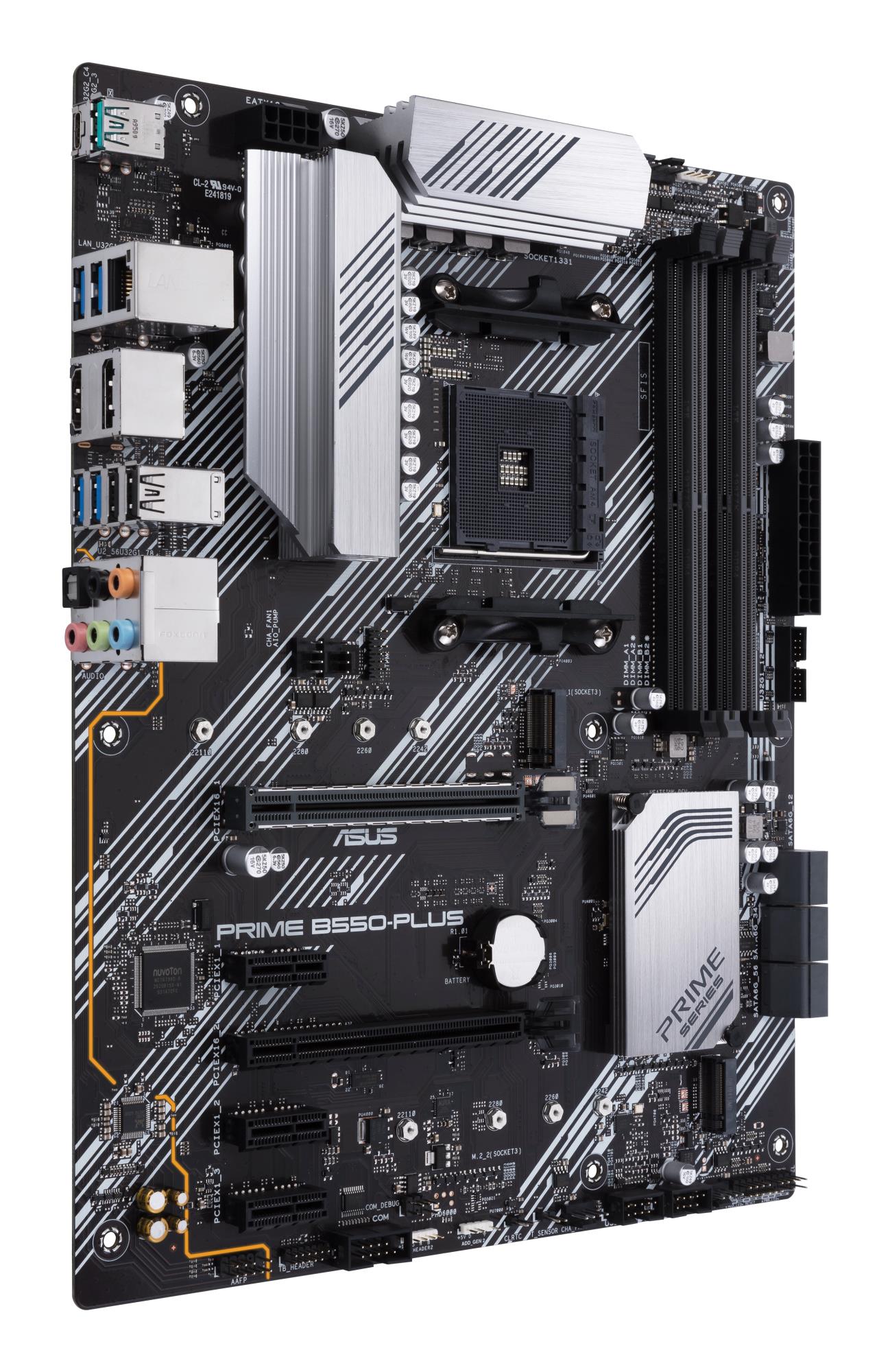

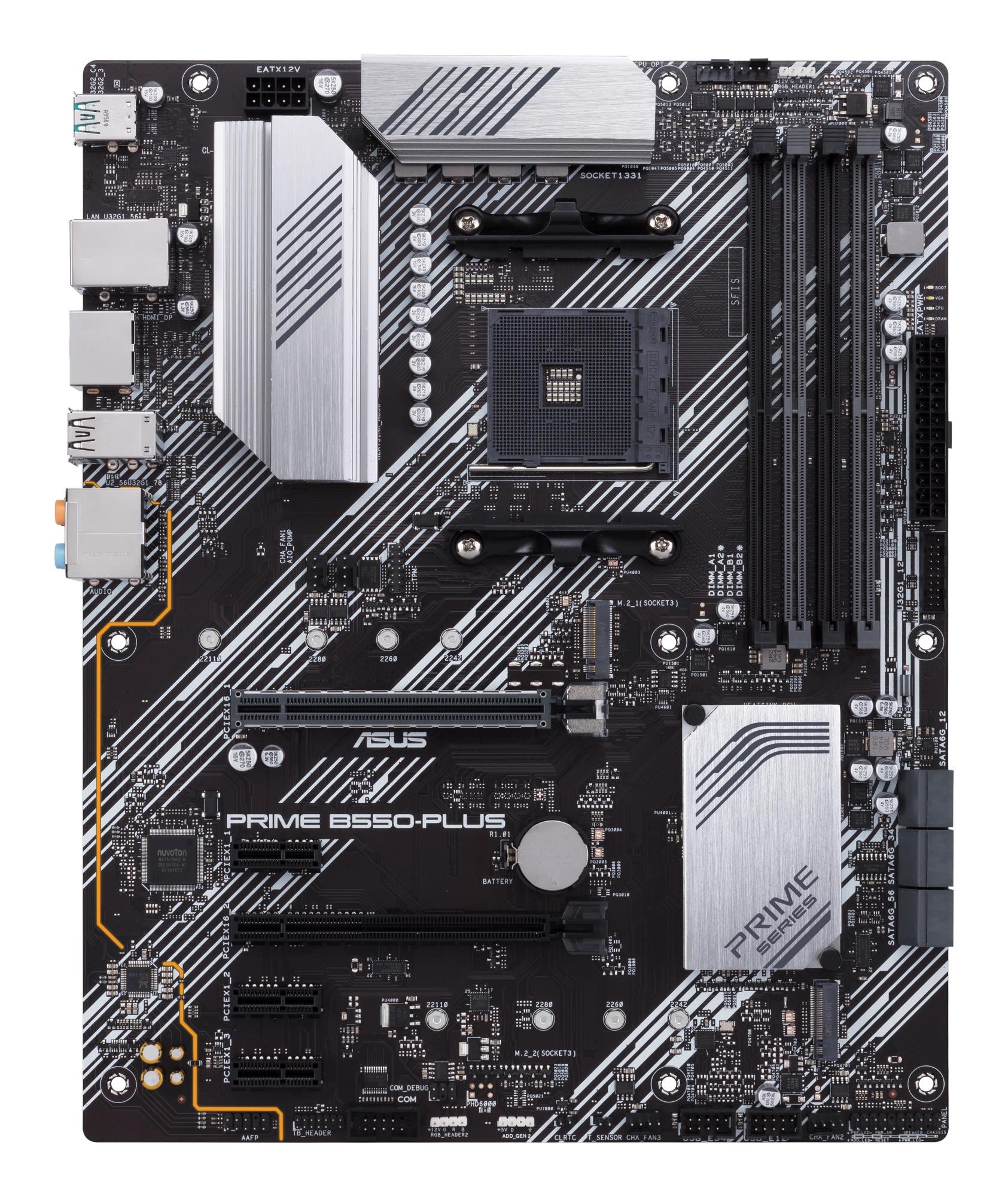

Mainboard|ASUS|AMD B550|SAM4|ATX|3xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|2xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xOptical S/PDIF|1xRJ45|5xAudio port|PRIMEB550-PLUS
SKU: PRIMEB550-PLUS
€ 116.17
Pieejams : 9 gab.
AMD B550
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series
Supported memory types DDR4-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA
2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Weight 1 kg
-
Category Code: MBA
-
Unit Box Height: 0.055
-
Unit Box Length: 0.33
-
Unit Box Width: 0.27
-
PCI-Express 3.0 1x: 3
-
PCI-Express 3.0 16x: 1
-
PCI-Express 4.0 16x: 1
-
M.2: 2
-

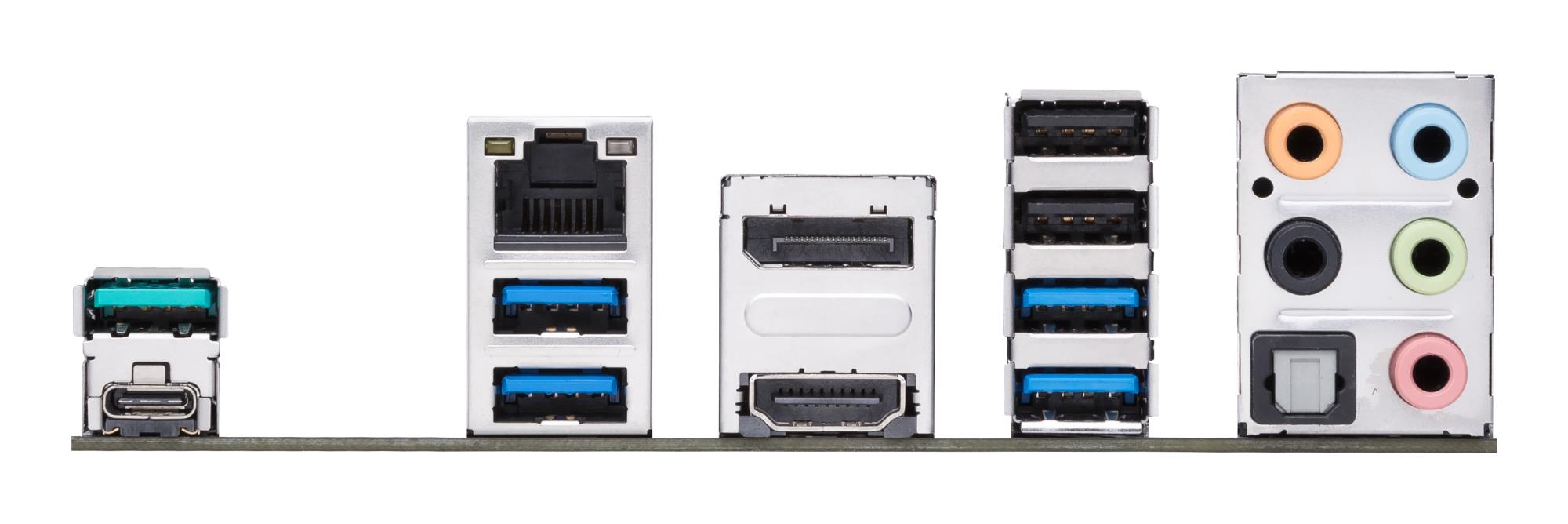

HDMI: 1
-
DisplayPort: 1
-
USB 2.0: 2
-
USB 3.2: 5
-
USB-C: 1
-
Optical S/PDIF: 1
-
RJ45: 1
-
Audio port: 5
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Serial: Yes
-
SATA 3.0: Yes
-
Chipset: AMD B550
-
Socket: SAM4
-
Form Factor: ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4266/4400/4466/4600/4800 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Yes
-
Integrated LAN: Gigabit
-
RAID: SATA 0, 1, 5, 10
-
Unit Calculated Volume: 0.004901 cubm
-
Product Net Weight: 1.1 kg
-
Unit Calculated Weight: 1.35 kg
-
Manufacturer: ASUS
