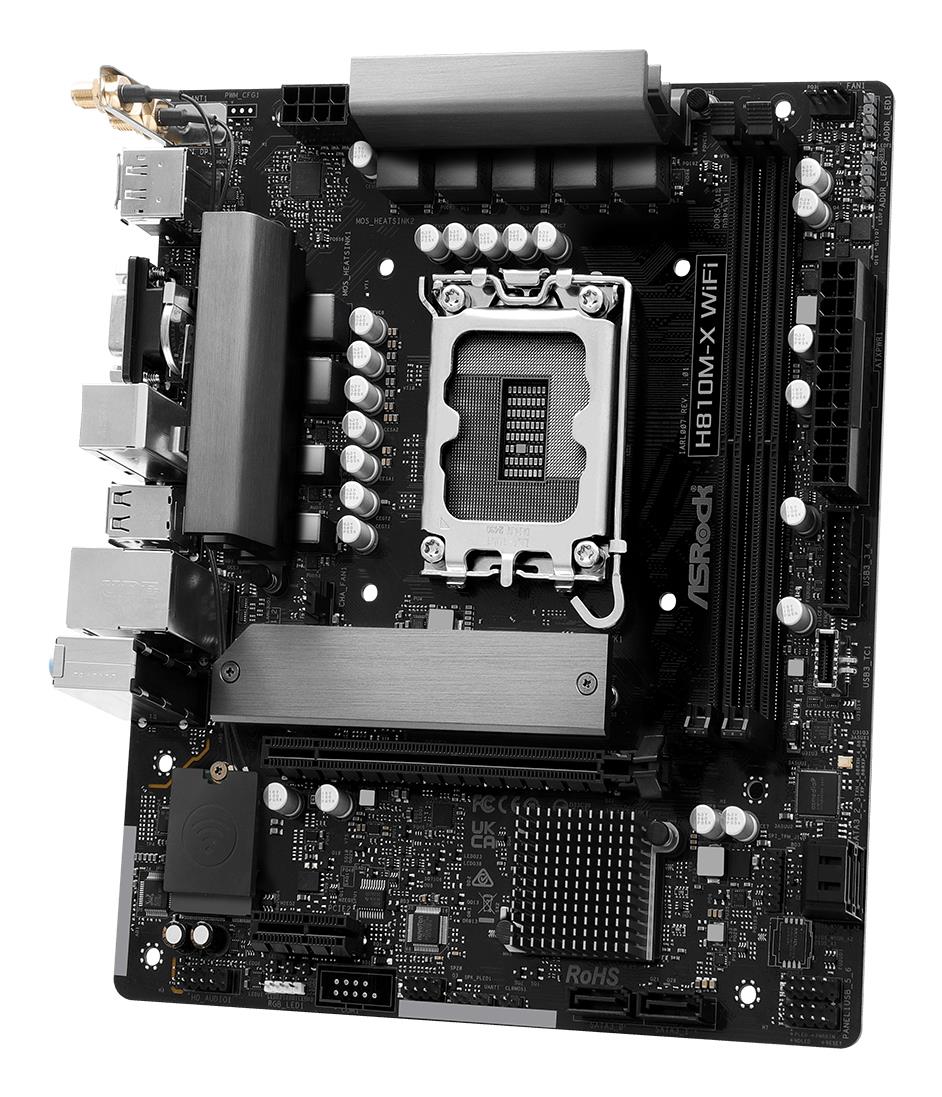

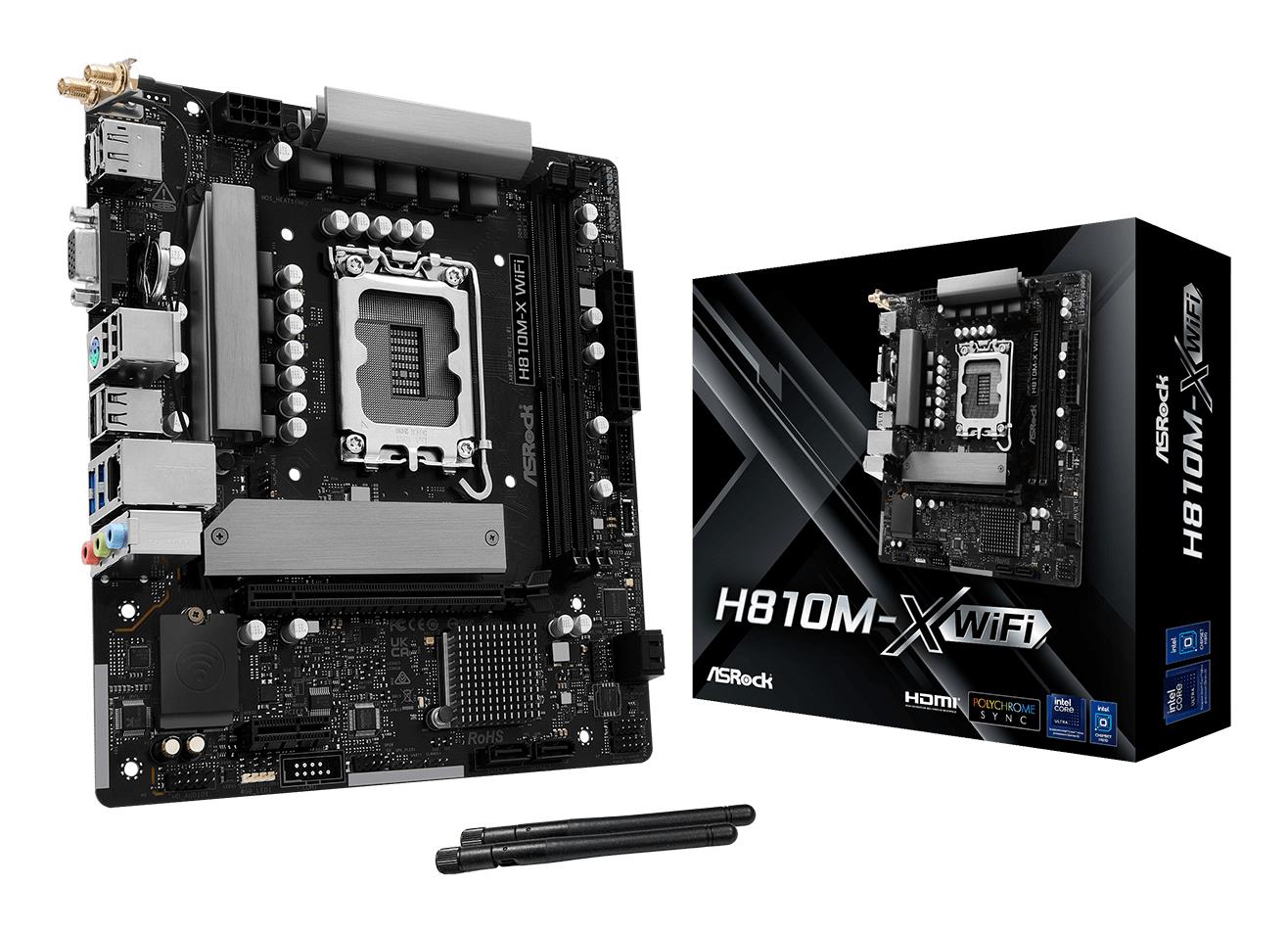

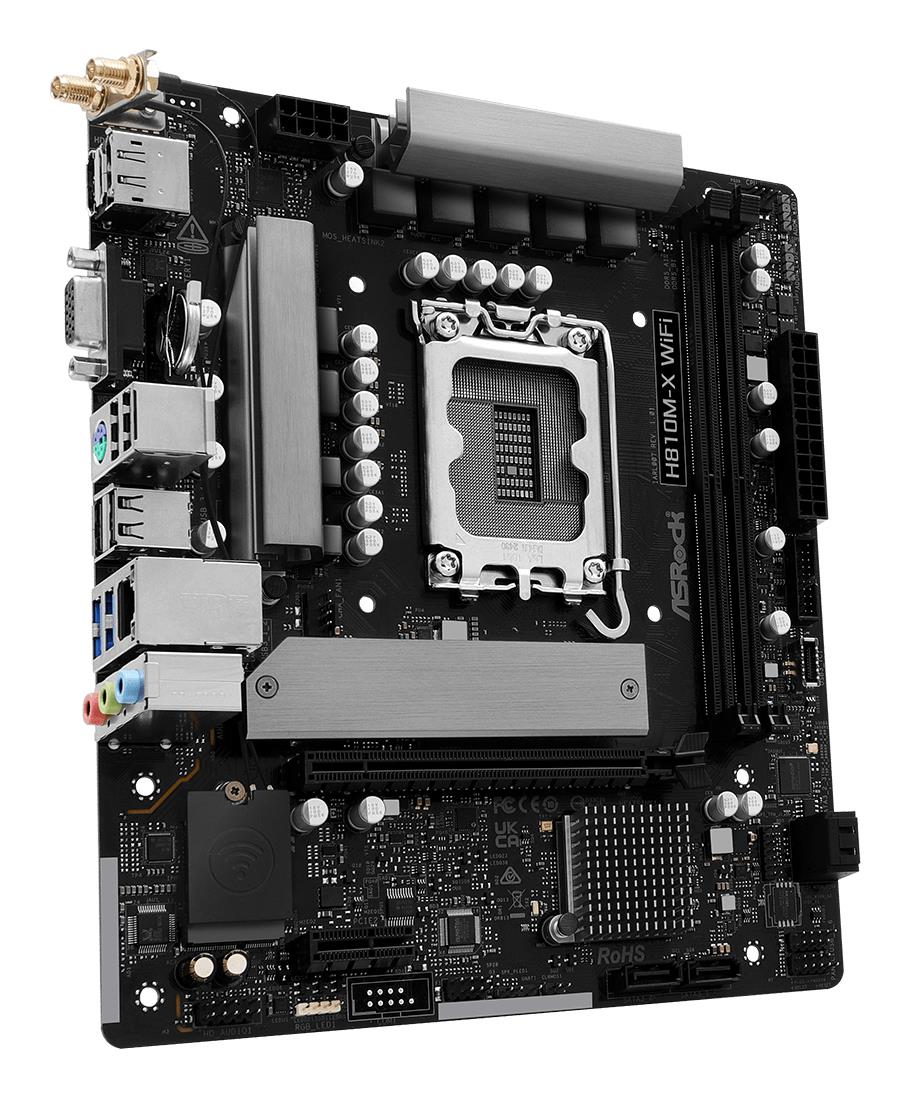

Mainboard|ASROCK|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) slots|H810M-XWIFI

Summary: Asrock H810M-X WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 5 (802.11ac). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Category Code: MBI

Unit Box Height: 0.06

Unit Box Length: 0.28

Unit Box Width: 0.24

Audio output channels: 7.1 channels

Certification: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Compatible operating systems: Microsoft Windows 11 64-bit

Component for: PC

Motherboard chipset: Intel H810

Motherboard chipset family: Intel

Motherboard form factor: Micro ATX

Product colour: Multicolour

Windows operating systems supported: Windows 11 x64

Compatible processor series: Intel Core Ultra (Series 2)

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

ECC сompatibility: Non-ECC

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 6400 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of HDDs supported: 4

Number of storage drives supported: 5

Supported storage drive interfaces: M.2,SATA III

Supported storage drive types: HDD & SSD

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

EPS power connector (8-pin): Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 1

Number of CPU fan connectors: 1

Number of SATA III connectors: 4

RGB LED pin header: Yes

TPM connector: Yes

USB 2.0 connectors: 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

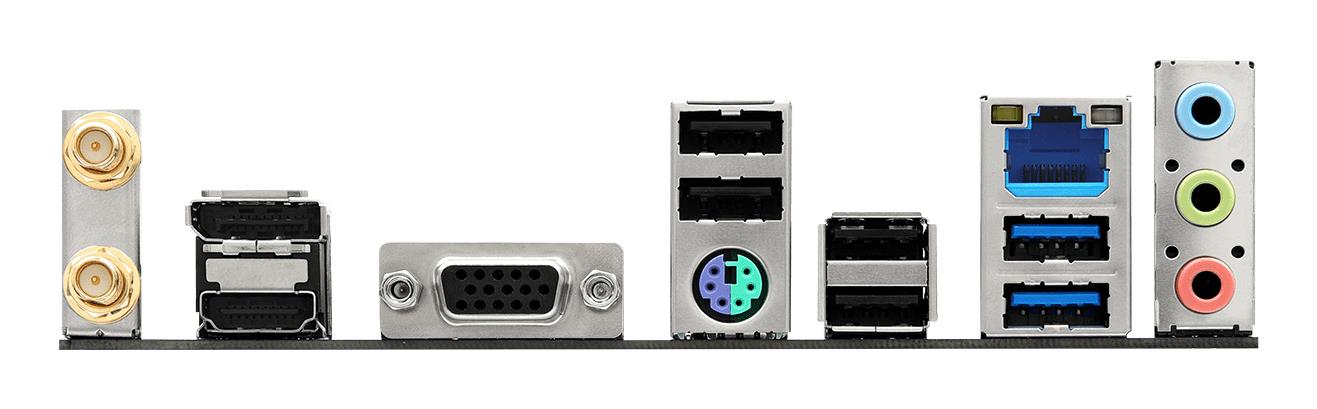

DisplayPort version: 1.4

DisplayPorts quantity: 1

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

Line-in: Yes

Microphone in: Yes

PS/2 ports quantity: 1

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

VGA (D-Sub) ports quantity: 1

Bluetooth: Yes

Bluetooth version: 5.0

Ethernet interface type: 2.5 Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 5 (802.11ac)

Wi-Fi: Yes

Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 4.x) slots: 1

PCI Express x16 (Gen 4.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 193 mm

Width: 220 mm

Units per Pallet: 0

Unit Calculated Volume: 0.004032 cubm

Unit Calculated Weight: 0.92 kg
