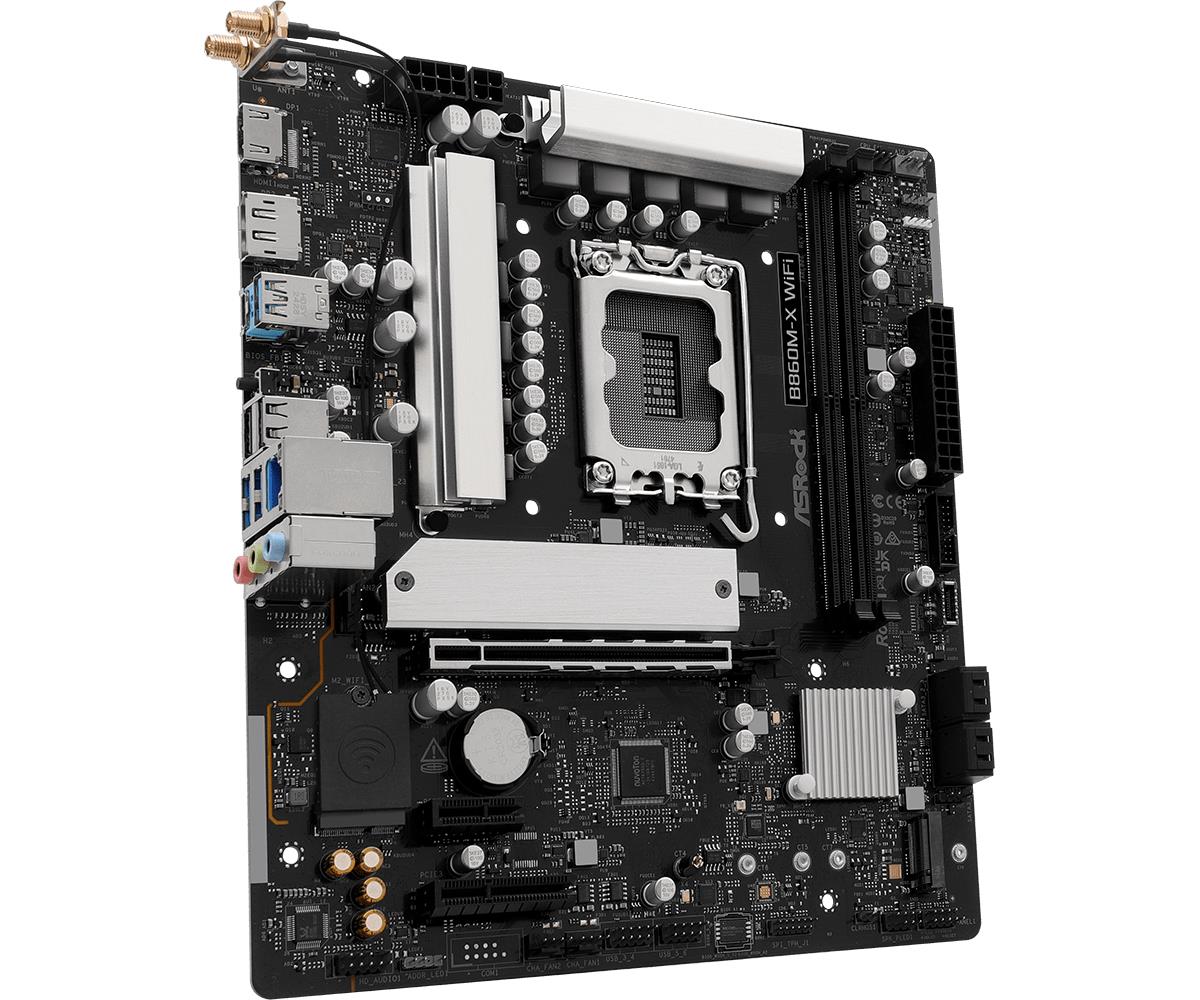

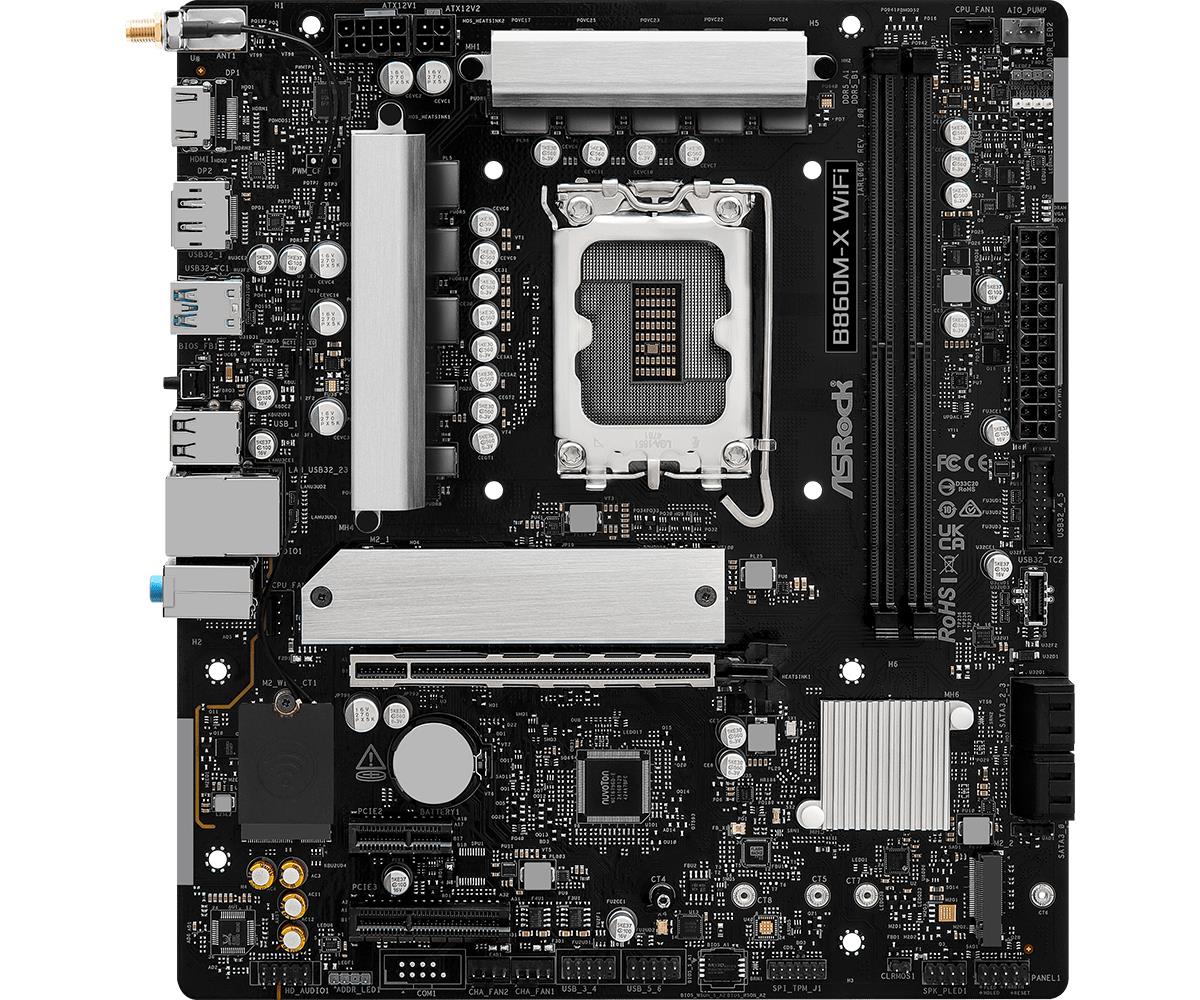

Mainboard|ASROCK|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860M-X_WIFI
SKU: B860M-X_WIFI
€ 127.01
Pieejams : 3 gab.
Intel B860
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1851 (Socket V1)
Series Intel Core Ultra (Series 2)
Supported memory types DDR5-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
On-board graphics card Yes
2xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
-
Category Code: MBI
-
Unit Box Height: 0.06
-
Unit Box Length: 0.3
-
Unit Box Width: 0.265
-
M.2: 1
-
PCI-Express 4.0 16x: 1
-
PCI-Express 4.0 1x: 1
-
PCI-Express 4.0 4x : 1
-

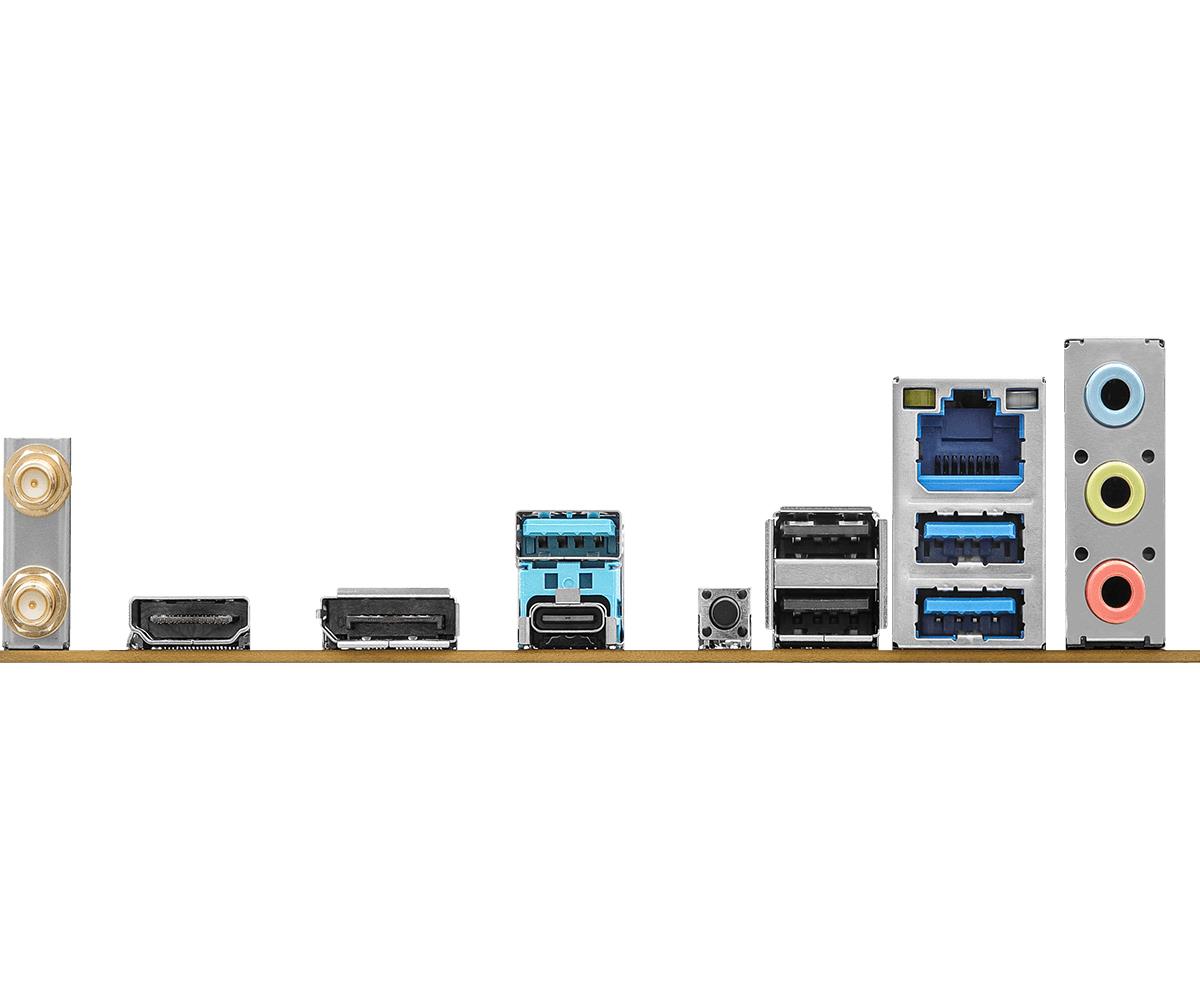

DisplayPort: 1
-
HDMI: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 3
-
USB-C: 1
-
SATA: Yes
-
SATA 3.0: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
USB-C: Yes
-
WiFi: Yes
-
Model: B860M-X WIFI
-
Chipset: Intel B860 Express
-
Socket: LGA1851
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 9066 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
Integrated audio: Realtek ALC897
-
RAID: SATA 0, 1, 5, 10
-
TPM: Header
-
Units per Pallet: 0
-
Unit Calculated Volume: 0.00553 cubm
-
Product Net Weight: 0.8 kg
-
Unit Calculated Weight: 1.22 kg
-
Manufacturer: ASROCK
