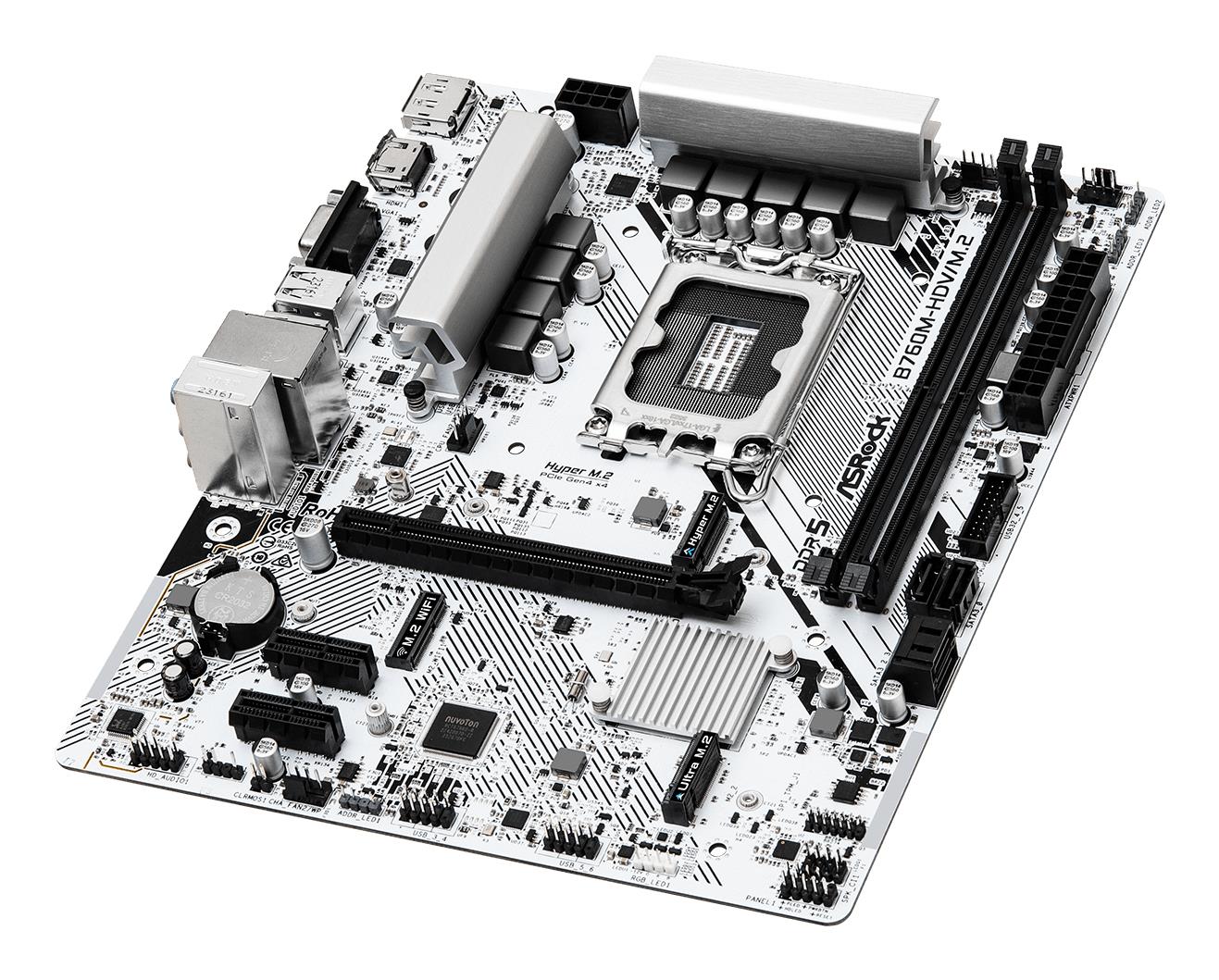

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|1xAV-In|1xAV-out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B760M-HDV/M.2
SKU: B760M-HDV/M.2
€ 97.13
Pieejams : 9 gab.
Intel B760
micro ATX
Audio 7.1 channels
CPU Intel
Socket LGA 1700
Series Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen/Intel Core i9 14th Gen
Supported memory types DDR5-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
2xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
-
Category Code: MBI
-
Unit Box Height: 0.06
-
Unit Box Length: 0.277
-
Unit Box Width: 0.24
-
M.2: 1
-
PCI-Express 3.0 1x: 2
-
PCI-Express 4.0 16x: 1
-
15pin D-sub: 1
-
AV-In: 1
-
AV-out: 1
-
DisplayPort: 1
-
HDMI: 1
-
Microphone: 1
-
RJ45: 1
-
USB 2.0: 2
-
USB 3.2: 3
-
USB-C: 1
-
SATA 3.0: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Model: B760M-HDV/M.2
-
Chipset: Intel B760 Express
-
Socket: LGA1700
-
Form Factor: Micro-ATX
-
Memory type: DDR5
-
Frequency speed: 7200 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated LAN: 2.5 Gigabit
-
Integrated audio: Realtek ALC897
-
RAID: SATA 0, 1, 5, 10
-
TPM: Yes
-
Included Accessories: 1 x User Manual; 1 x I/O Shield; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets
-
Unit Calculated Volume: 0.004511 cubm
-
Product Net Weight: 0.5 kg
-
Unit Calculated Weight: 0.927 kg
-
Manufacturer: ASROCK
