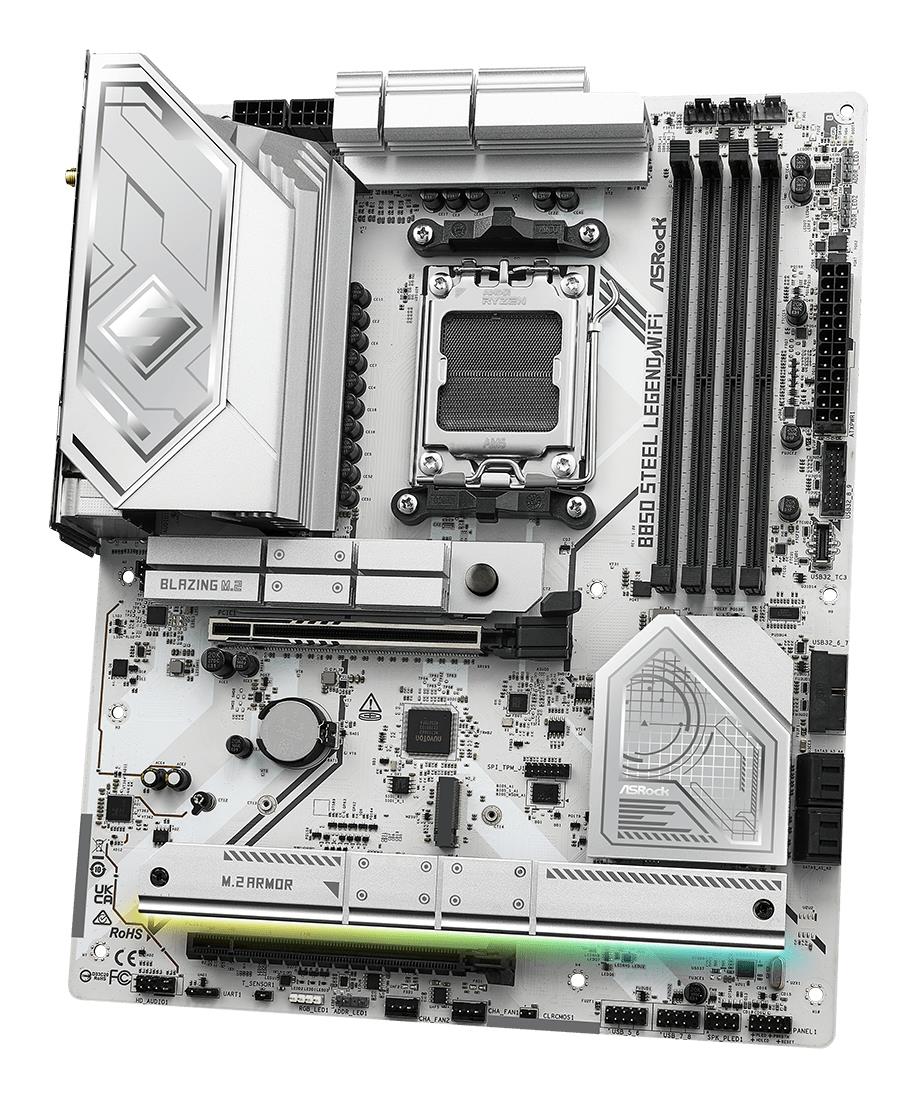

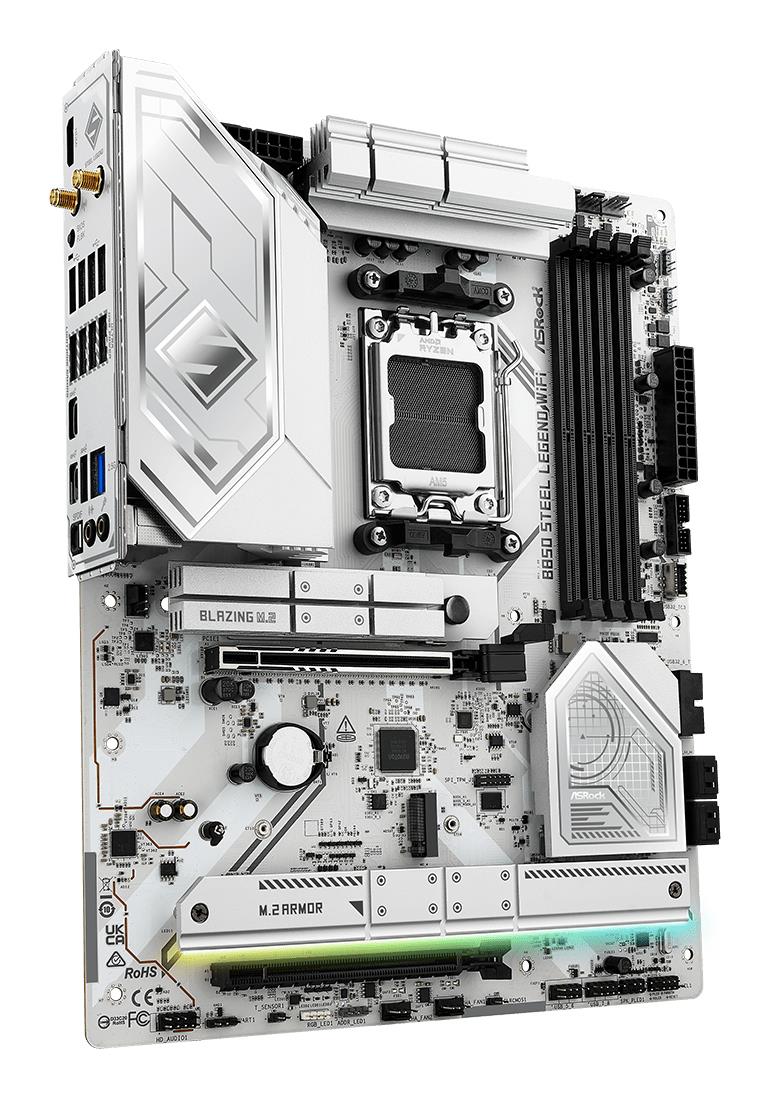

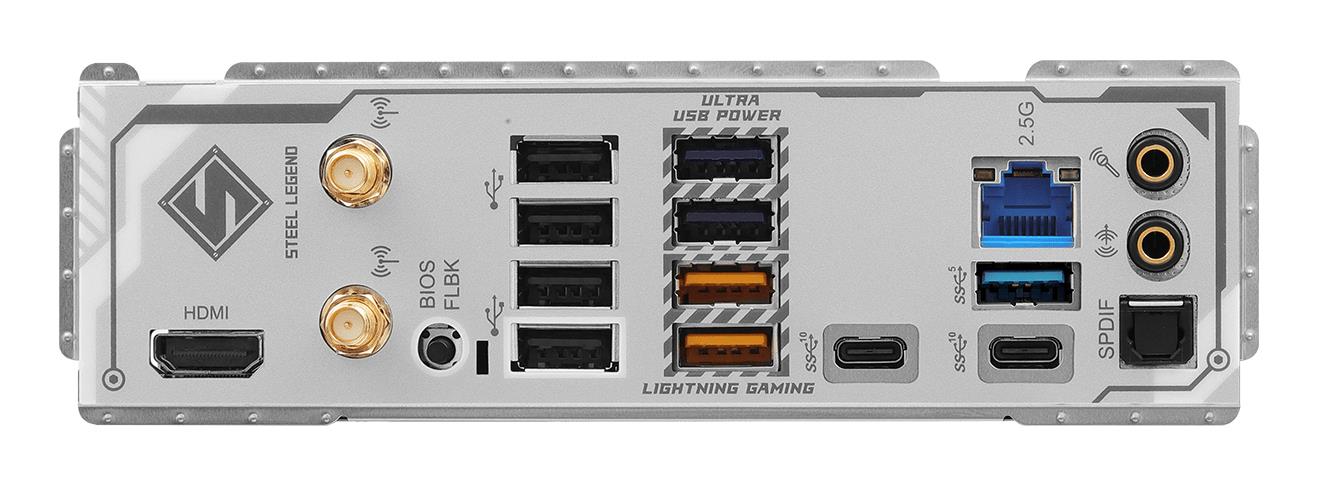

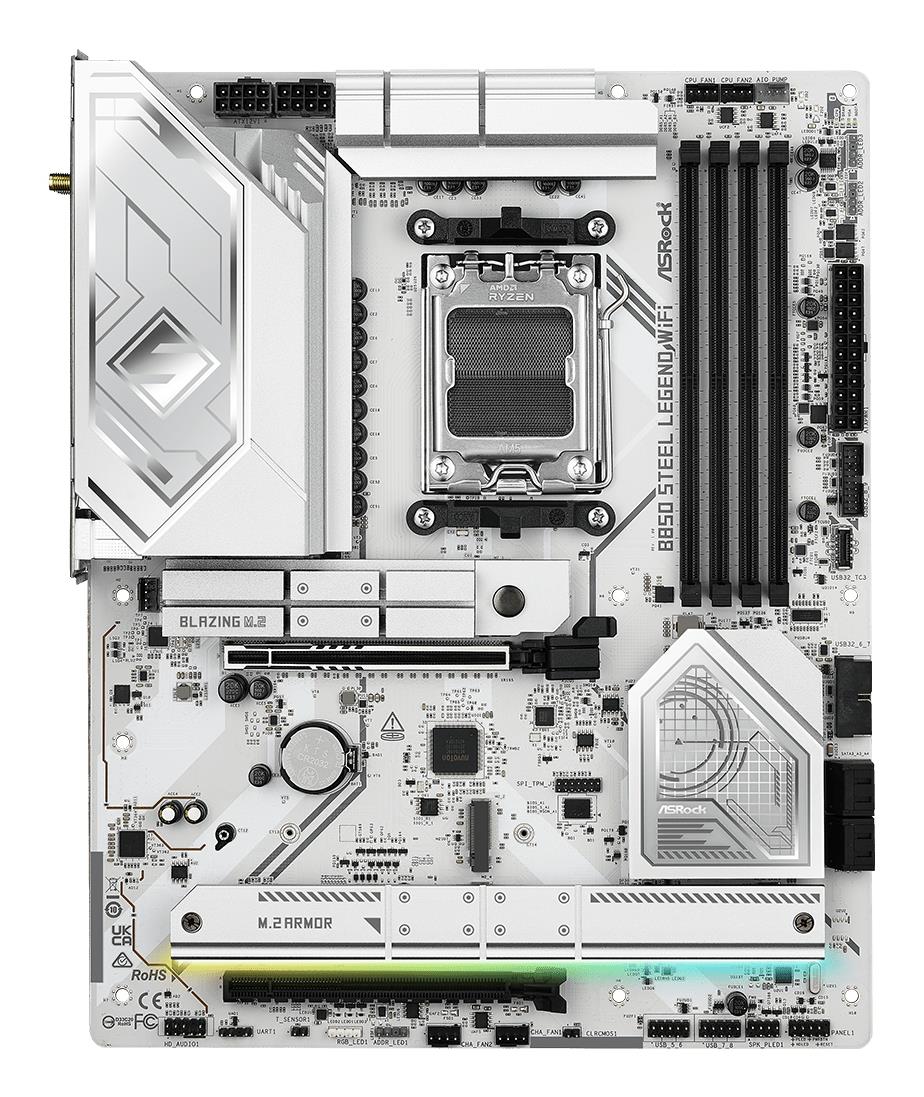

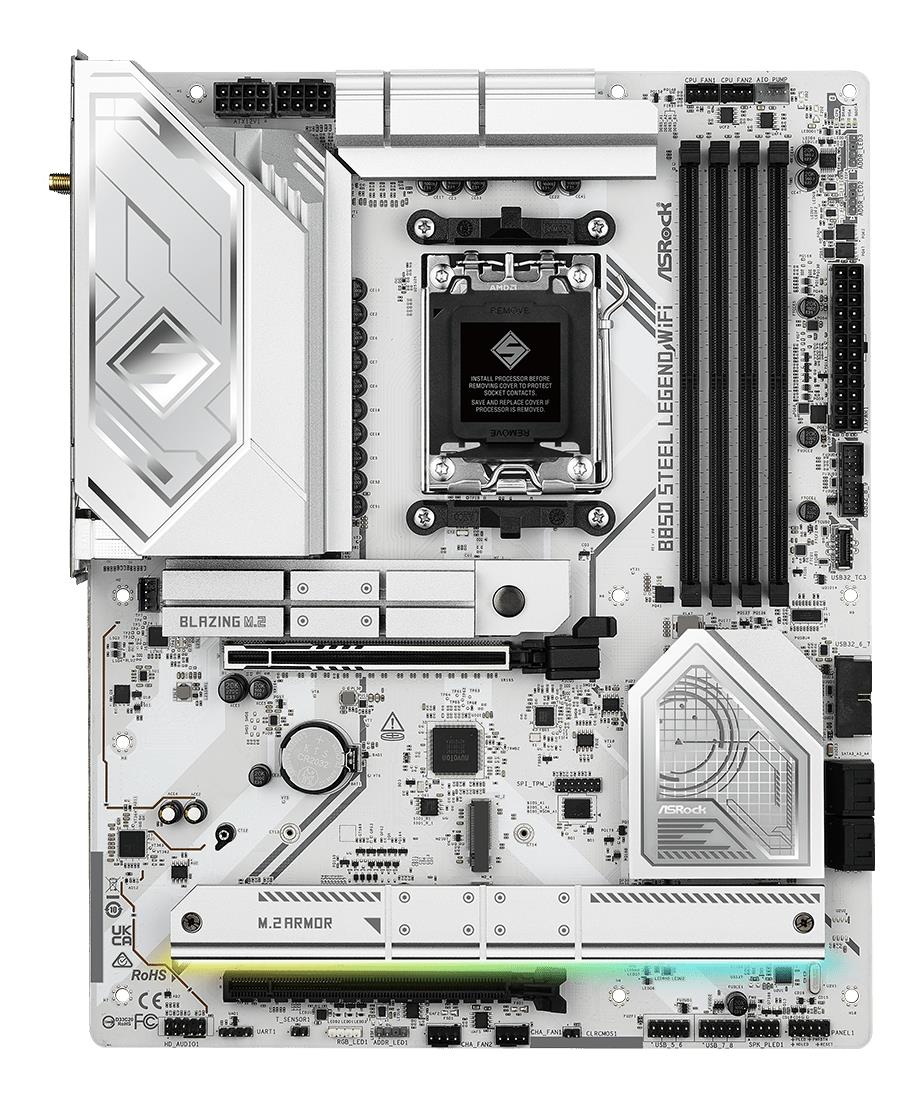

Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-In|1xAudio-Out|4xUSB 2.0|5xUSB 3.2|2xUSB-C|1xOptical S/PDIF|1xRJ45|B850STEELLEGENDWIFI
SKU: B850 STEEL LEGEND WIFI
€ 210.38
Pieejams : 5 gab.
AMD B850
ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM5
Series AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Supported memory types DDR5-SDRAM
4xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces PCI Express 4.0,PCI Express 5.0,SATA III
3840 x 2160 pixels
4xUSB 2.0 ports quantity
3xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1xEthernet LAN (RJ-45) ports
1xHDMI ports quantity
Wi-Fi Yes
Bluetooth Yes
Antenna included Yes
-
Category Code: MBA
-
Unit Box Height: 0.08
-
Unit Box Length: 0.35
-
Unit Box Width: 0.28
-
PCI-Express 4.0 16x: 1
-
PCI-Express 5.0 16x: 1
-
M.2: 1
-
HDMI: 1
-
Audio-In: 1
-
Audio-Out: 1
-
USB 2.0: 4
-
USB 3.2: 5
-
USB-C: 2
-
Optical S/PDIF: 1
-
RJ45: 1
-
SATA: Yes
-
USB-C: Yes
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Bluetooth: Yes
-
WiFi: Yes
-
Model: B850 STEEL LEGEND WIFI
-
Chipset: AMD B850
-
Socket: SAM5
-
Form Factor: ATX
-
Memory type: DDR5
-
Frequency speed: 8000 MHz
-
Memory slots: 4
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC4082
-
Integrated LAN: 2.5 Gigabit
-
RAID: SATA 0, 1, 10; NVMe 0, 1, 10
-
TPM: Header
-
Included Accessories: - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Thermistor Cable
-
Unit Calculated Volume: 0.008784 cubm
-
Product Net Weight: 1 kg
-
Unit Calculated Weight: 2.29 kg
-
Manufacturer: ASROCK
