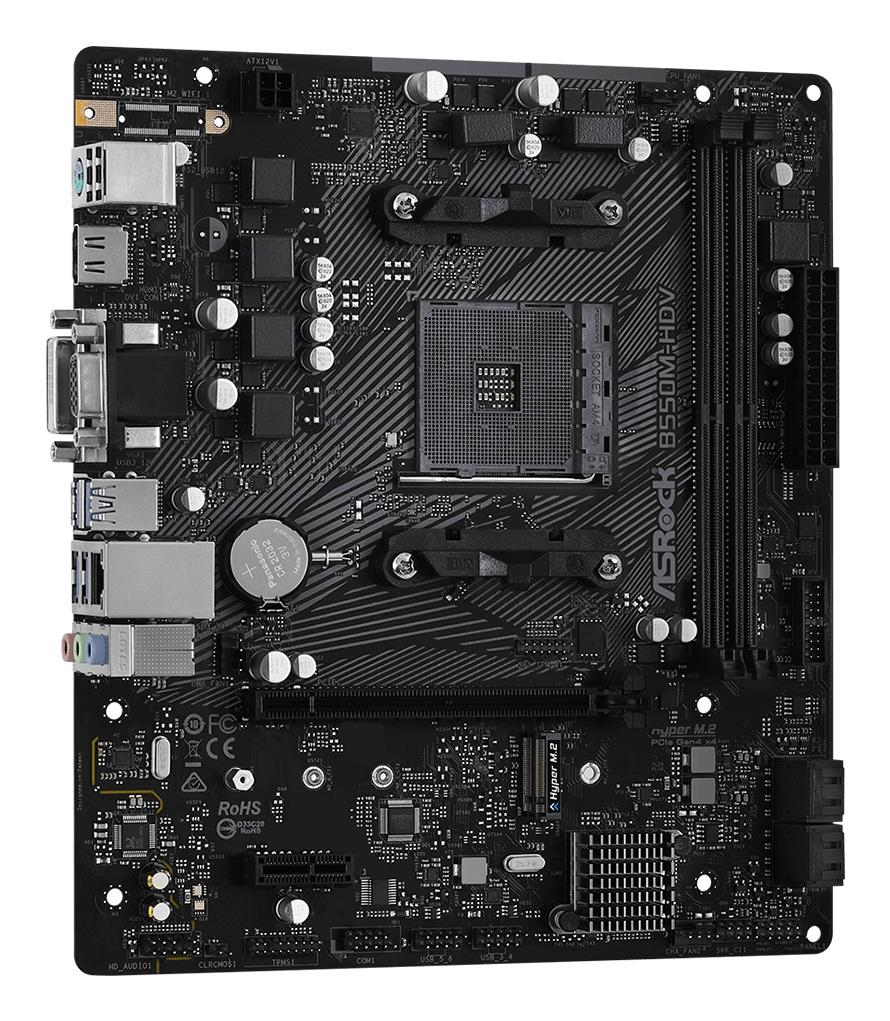

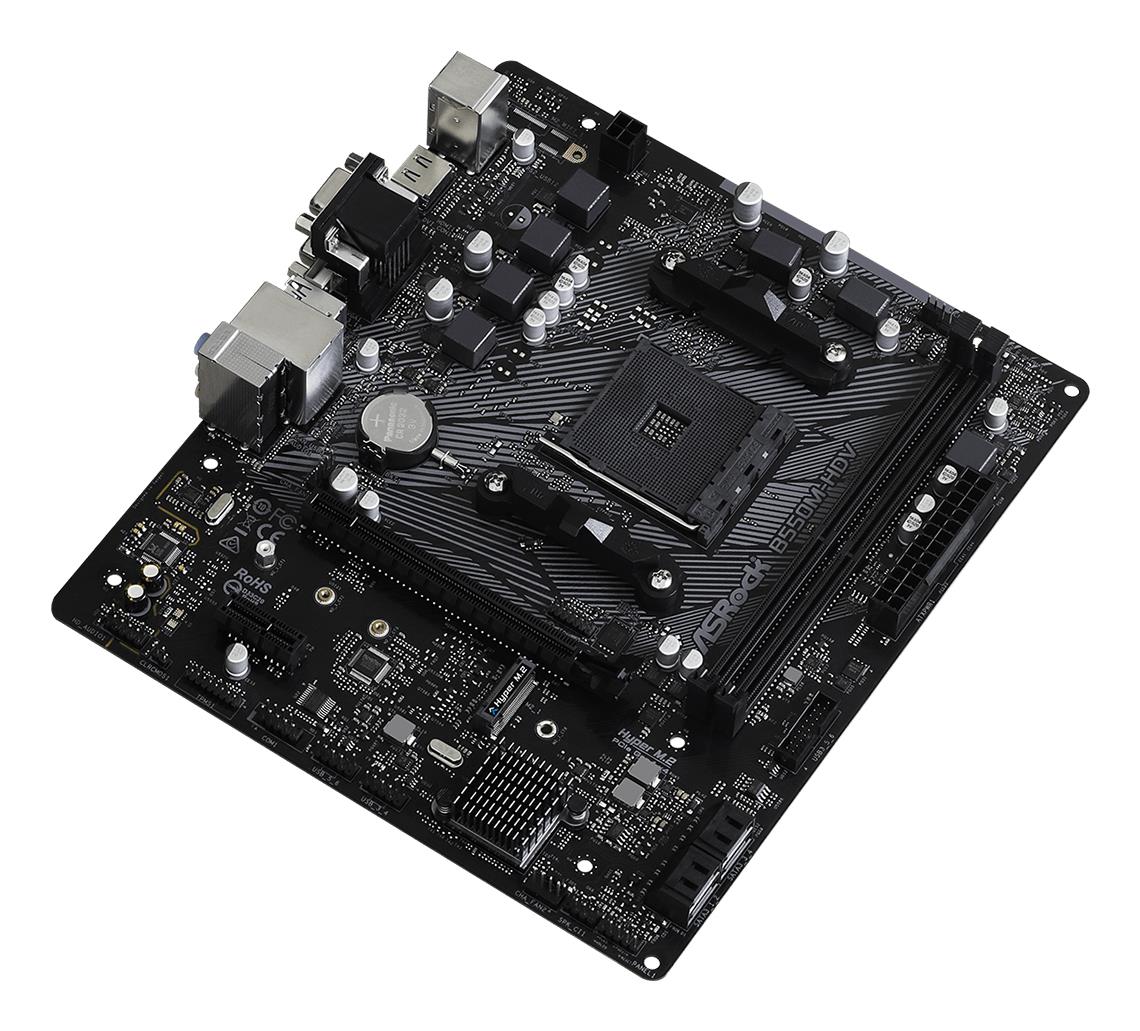

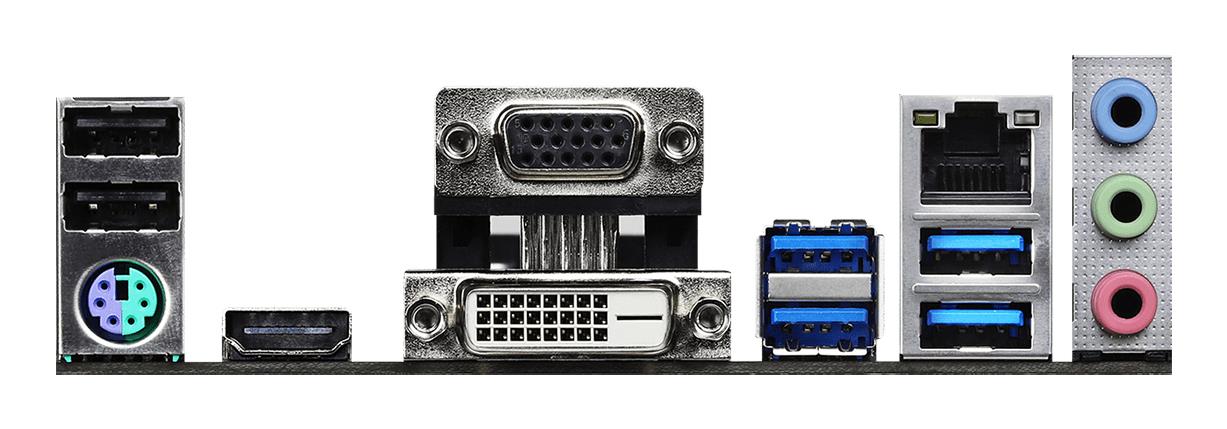

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 2|1x15pin D-sub|1xDVI|1xHDMI|2xUSB 2.0|4xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550M-HDV
SKU: B550M-HDV
€ 74.83
Pieejams : 30 gab.
AMD B550
micro ATX
Audio 7.1 channels
CPU AMD
Socket Socket AM4
Series AMD Ryzen 3000 Series
Supported memory types DDR4-SDRAM
2xNumber of memory slots
Memory slots type DIMM
Supported storage drive interfaces M.2,SATA III
On-board graphics card Yes
Graphics card Radeon Vega
2xUSB 2.0 ports quantity
4xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1xEthernet LAN (RJ-45) ports
1xVGA (D-Sub) ports quantity
1xHDMI ports quantity
1xDVI-D ports quantity
Weight 465 g
-
Category Code: MBA
-
Unit Box Height: 0.21
-
Unit Box Length: 0.06
-
Unit Box Width: 0.27
-
PCI-Express 3.0 1x: 1
-
PCI-Express 4.0 16x: 1
-
M.2: 1
-
15pin D-sub: 1
-
DVI-D: 1
-
HDMI: 1
-
USB 2.0: 2
-
USB 3.2: 4
-
PS/2: 1
-
RJ45: 1
-
Audio port: 3
-
USB 2.0: Yes
-
USB 3.2: Yes
-
Serial: Yes
-
SATA 3.0: Yes
-
Chipset: AMD B550
-
Socket: SAM4
-
Form Factor: Micro-ATX
-
Memory type: DDR4
-
Frequency speed: 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
-
Memory slots: 2
-
Integrated video: Depending on CPU
-
Integrated audio: Realtek ALC887
-
Integrated LAN: Gigabit
-
RAID: SATA 0, 1, 10
-
Included Accessories: - Quick Installation Guide, Support CD, I/O Shield; - 2 x SATA Data Cables; - 1 x Screw for M.2 Socket
-
Unit Calculated Volume: 0.004045 cubm
-
Product Net Weight: 0.8 kg
-
Unit Calculated Weight: 0.92 kg
-
Manufacturer: ASROCK
