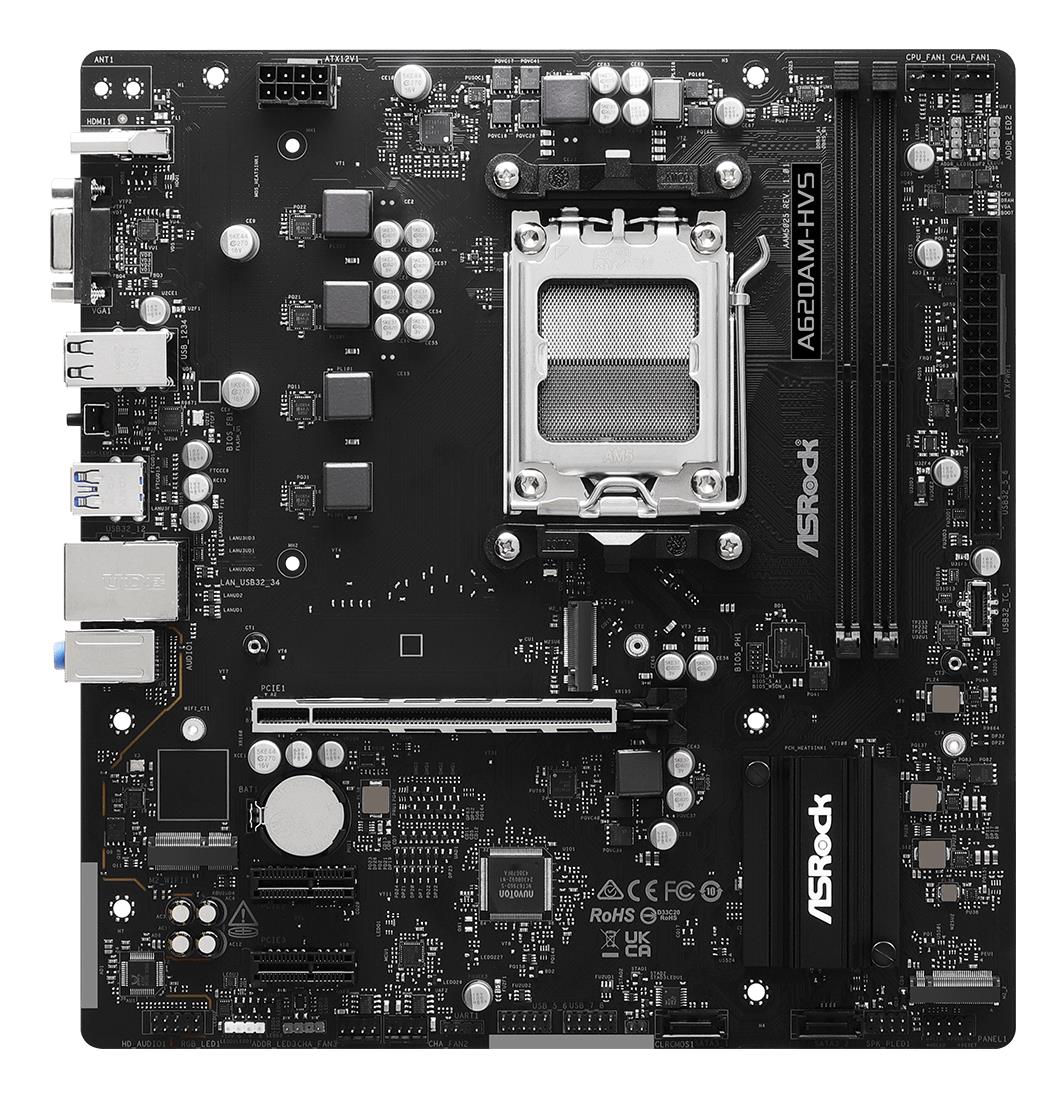

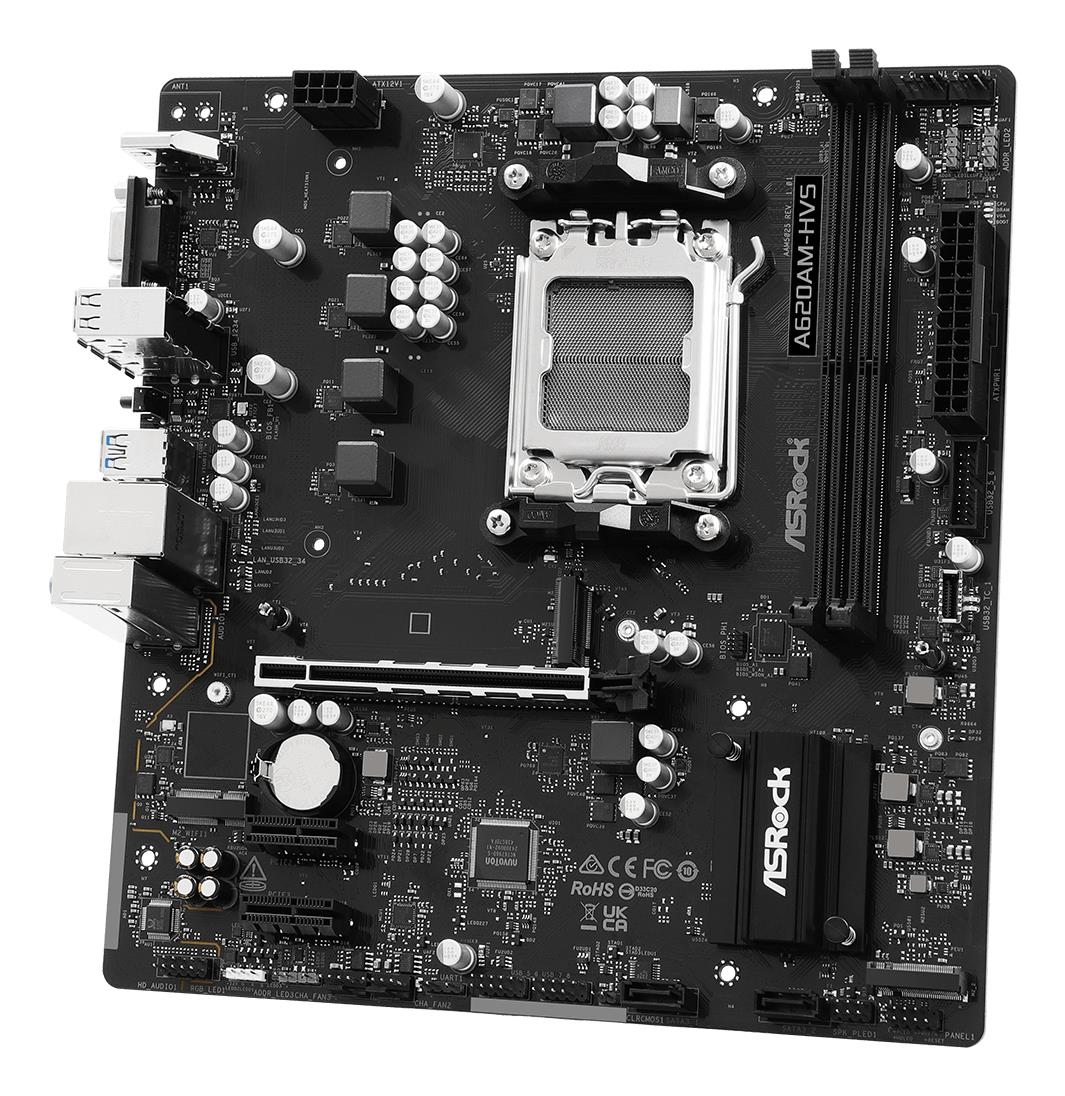

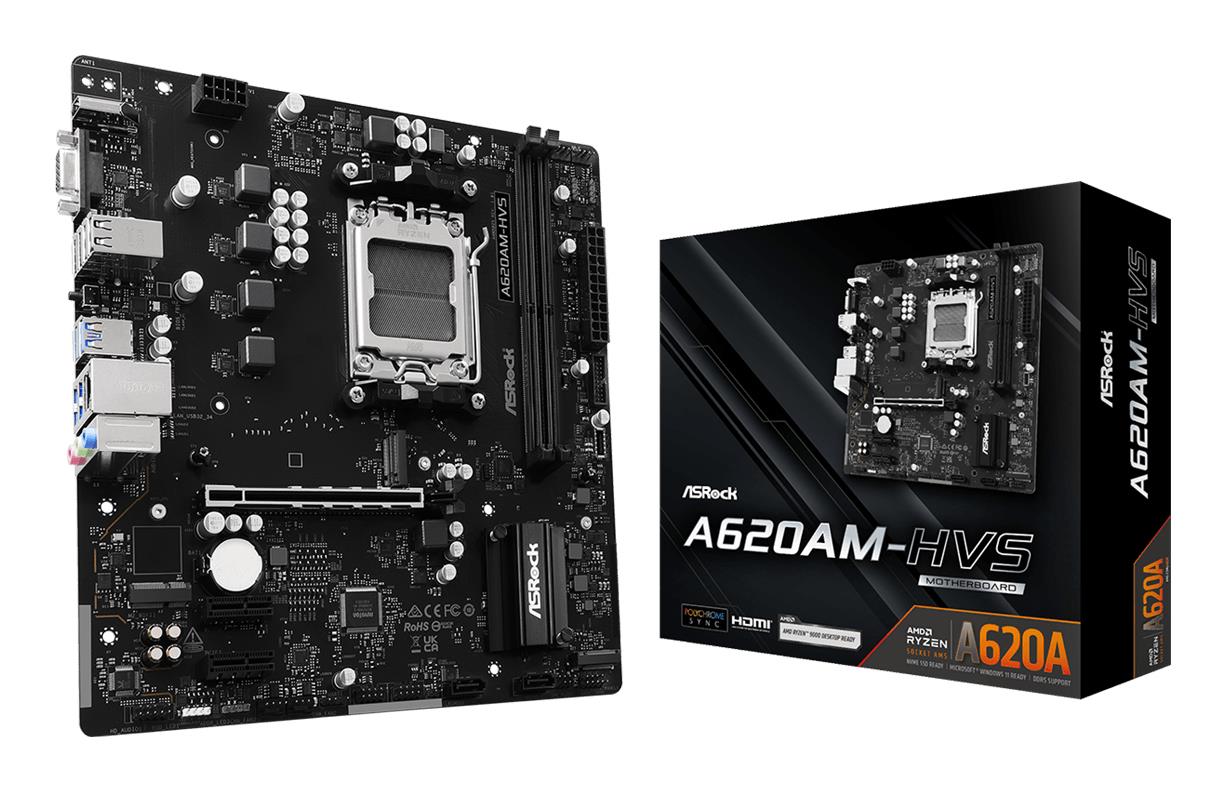

Mainboard|ASROCK|AMD A620A|micro ATX|RAM DDR5-SDRAM|2xSlots|A620AM-HVS

Summary: Asrock A620AM-HVS. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A

Category Code: MBA

Unit Box Height: 0.06

Unit Box Length: 0.3

Unit Box Width: 0.265

Audio chip: Realtek ALC897

Audio output channels: 7.1 channels

Component for: PC

Motherboard chipset: AMD A620A

Motherboard chipset family: AMD

Motherboard form factor: Micro ATX

Product colour: Black

Windows operating systems supported: Windows 10 x64/Windows 11 x64

Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor manufacturer: AMD

Processor socket: Socket AM5

Supported processor sockets: Socket AM5

ECC сompatibility: Non-ECC

Maximum internal memory: 128 GB

Memory channels: Dual-channel

Memory slots type: DIMM

Number of memory slots: 2

Supported memory clock speed (max): 6800 MHz

Supported memory types: DDR5-SDRAM

Unbuffered memory: Yes

Number of storage drives supported: 4

RAID levels: 0/1/10

RAID support: Yes

Supported storage drive interfaces: PCI Express 3.0,PCI Express 4.0,SATA III

Supported storage drive types: HDD & SSD

HDCP: Yes

HDCP version: 2.3

High Dynamic Range (HDR) supported: Yes

Maximum resolution: 3840 x 2160 pixels

Parallel processing technology support: Not supported

12V power connector: Yes

ATX Power connector (24-pin): Yes

CPU fan connector: Yes

Front panel audio connector: Yes

Number of chassis fan connectors: 3

Number of CPU fan connectors: 1

Number of RGB LED pin headers: 1

Number of SATA III connectors: 2

RGB LED pin header: Yes

USB 2.0 connectors: 2

USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2

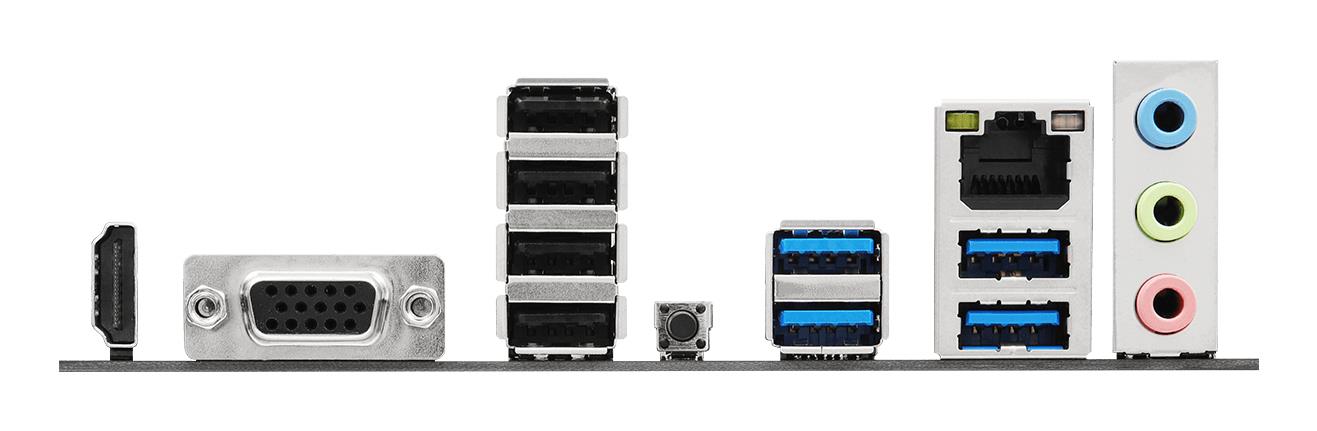

Ethernet LAN (RJ-45) ports: 1

HDMI ports quantity: 1

HDMI version: 2.1

Headphone outputs: 3

Line-in: Yes

Microphone in: Yes

USB 2.0 ports quantity: 4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

USB connector type: USB Type-A

VGA (D-Sub) ports quantity: 1

Ethernet interface type: Fast Ethernet/Gigabit Ethernet

Ethernet LAN: Yes

LAN controller: Realtek RTL8111H

Wi-Fi: No

1st M.2 highest PCI Express generation: 4.0

1st M.2 largest key size: 2280

Number of M.2 (M) slots: 1

PCI Express x1 (Gen 3.x) slots: 2

PCI Express x16 (Gen 4.x) slots: 1

BIOS memory size: 256 Mbit

BIOS type: UEFI AMI

Depth: 229 mm

Width: 244 mm

Cables included: SATA

Screws included: Yes

Compliance certificates: CE/Federal Communications Commission (FCC)

Model: A620AM-HVS

Units per Pallet: 0

Unit Calculated Volume: 0.005632 cubm

Unit Calculated Weight: 1.111 kg

Manufacturer: ASROCK
