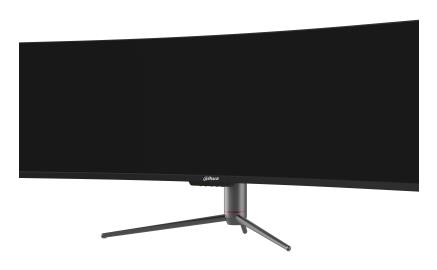

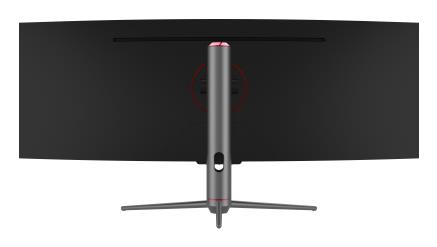

Large Format Display|DAHUA|49 "|5120 x 1440 pixels|Dual QHD|Native aspect ratio 32:9|LCD|Curved|DHI-LM49-EW410CA

Summary: Dahua Technology LM49-EW410CA. Display diagonal: 124.5 cm (49"), Display resolution: 5120 x 1440 pixels, HD type: Dual QHD, Display technology: LCD, Native aspect ratio: 32:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting, Height adjustment. Product colour: Black

Category Code: LC3

Unit Box Height: 0.48

Unit Box Length: 1.3

Unit Box Width: 0.28

Backlight type: Edge LED

Colour depth: 8 bit

Colour gamut standard: NTSC/sRGB

Contrast ratio (typical): 3000:1

Display brightness (peak): 400 cd/m²

Display diagonal: 49 "

Display diagonal (metric): 124 cm

Display resolution: 5120 x 1440 pixels

Display technology: LCD

HD type: Dual QHD

High Dynamic Range (HDR) supported: Yes

LED backlight: Yes

Maximum refresh rate: 120 Hz

Native aspect ratio: 32:9

NTSC coverage (typical): 85 %

Panel type: VA

Pixel density: 108.54 ppi

Pixel pitch: 0.2382 x 0.2382 mm

Response time (MPRT): 1 ms

Screen curvature rating: 1800R

Screen shape: Curved

sRGB coverage (typical): 99 %

Supported graphics resolutions: 5120 x 1440

Supported video modes: 1440p

Surface treatment: Haze 25%, 3H

Touchscreen: No

Viewable size, horizontal: 1191.936 mm

Viewable size, vertical: 335.232 mm

Viewing angle, horizontal: 178 °

Viewing angle, vertical: 178 °

Flicker-free technology: Yes

Low Blue Light technology: Yes

Built-in camera: No

Built-in speaker(s): Yes

Number of speakers: 2

RMS rated power: 6 W

Feet colour: Black

Market positioning: Gaming

Product colour: Black

Refurbished: No

Audio output: Yes

Built-in USB hub: No

DisplayPort version: 1.4

DisplayPorts quantity: 1

HDMI: Yes

HDMI ports quantity: 1

HDMI version: 2.1

Number of USB Type-B upstream ports quantity: 1

Number of USB Type-C upstream ports quantity: 1

USB Type-A downstream ports quantity: 2

USB Type-C DisplayPort Alternate Mode: Yes

Bluetooth: No

Ethernet LAN: Yes

Wi-Fi: No

Adjustable height (max): 95 mm

Height adjustment: Yes

Panel mounting interface: 75 x 75 mm

Plug and Play: Yes

Tilt adjustment: Yes

Tilt angle range: -5 - 15 °

VESA mounting: Yes

Wall mountable: Yes

AC input frequency: 50/60 Hz

AC input voltage: 100 - 240 V

Energy consumption (HDR) per 1000 hours: 63 kWh

Energy consumption (SDR) per 1000 hours: 42 kWh

Energy efficiency class (HDR): G

Energy efficiency class (SDR): F

Energy efficiency scale: A to G

Power consumption (max): 180 W

Power consumption (standby): 0.5 W

Power consumption (typical): 72 W

Power supply type: Internal

Operating relative humidity (H-H): 10 - 85 %

Operating temperature (T-T): 0 - 40 °C

Storage relative humidity (H-H): 5 - 90 %

Storage temperature (T-T): -20 - 60 °C

Depth (with stand): 160.2 mm

Height (with stand): 375.6 mm

Weight (with stand): 11500 g

Width (with stand): 1198.5 mm

Package depth: 284 mm

Package height: 486 mm

Package weight: 15600 g

Package width: 1305 mm

Cables included: DisplayPort/Power/USB Type-C

Quick start guide: Yes

Stand included: Yes

Compliance certificates: CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD)

Display viewable area (HxV): 1191.9 x 335.2 mm

E-manual: Yes

Picture-by-Picture (PbP): Yes

Power consumption: 42 W

RJ-45 ports quantity: 1

Speakers: 2 × 3 W

Data Sheet (Link): https://eprel.ec.europa.eu/api/product/2187117/fiches?language=EN

Energy efficiency class: F

EPREL Registration Number: 2187117

EPREL Version Number: 2

Units per Pallet: 0

Unit Calculated Volume: 0.1747 cubm

Product Net Weight: 11.5 kg

Unit Calculated Weight: 16.6 kg

Manufacturer: DAHUA
