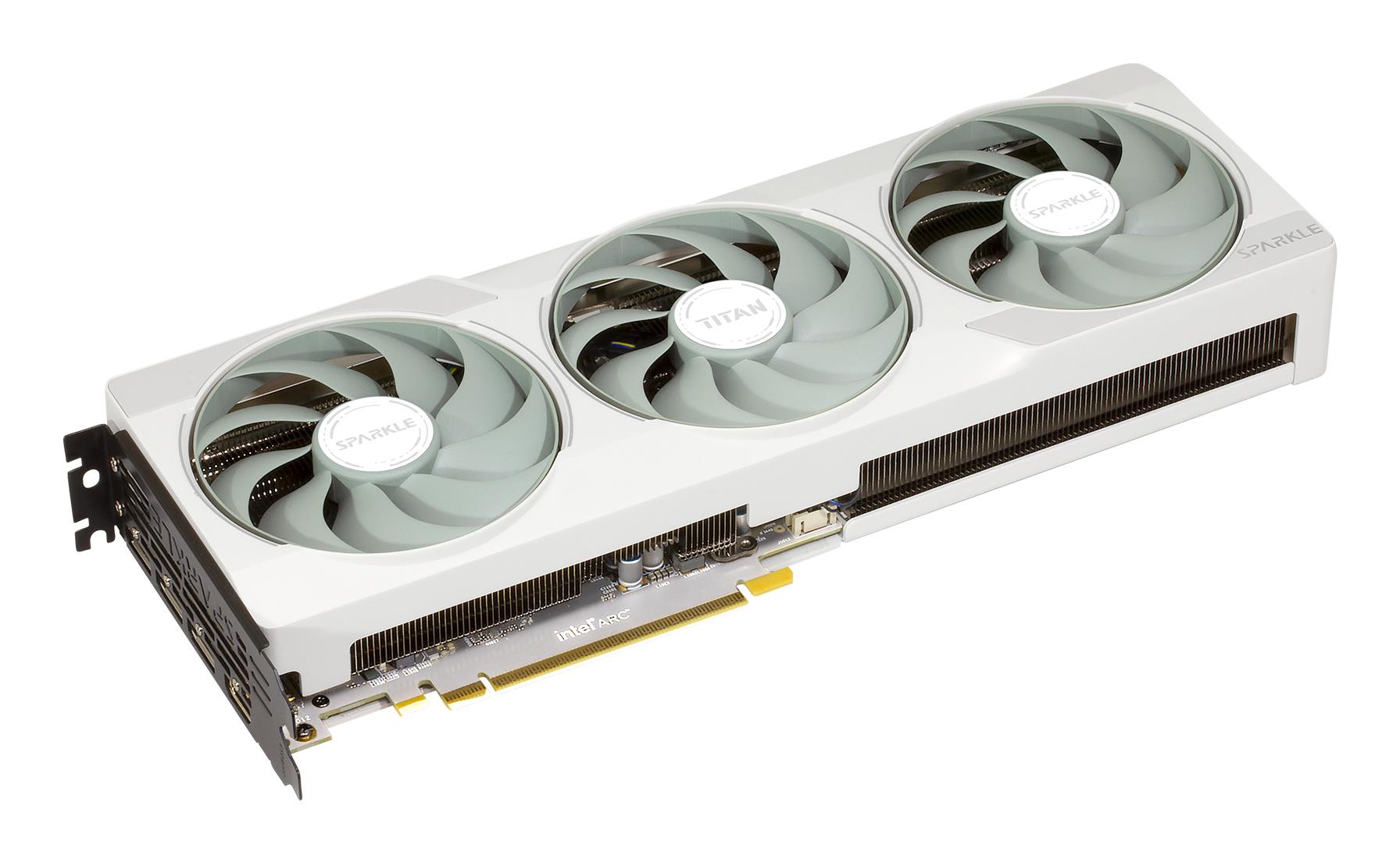

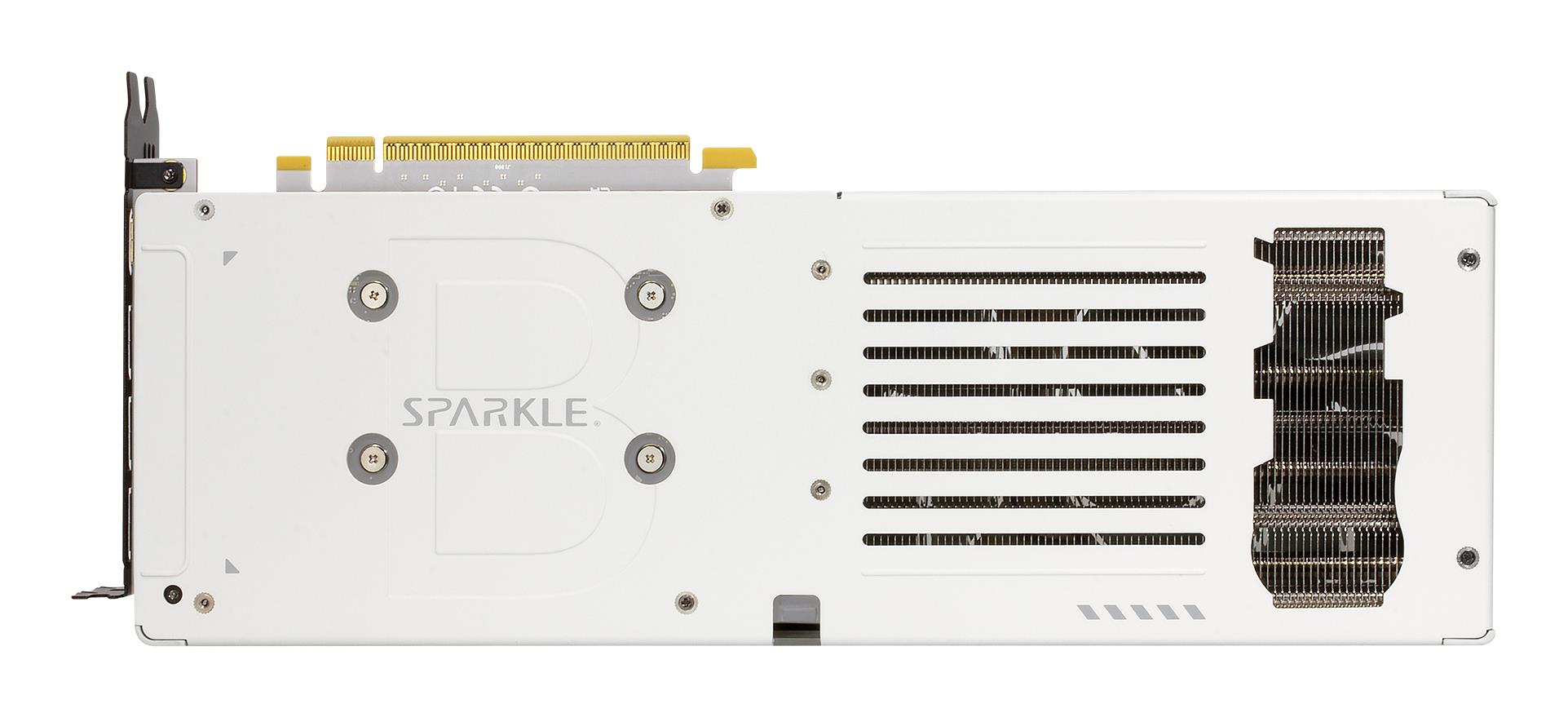

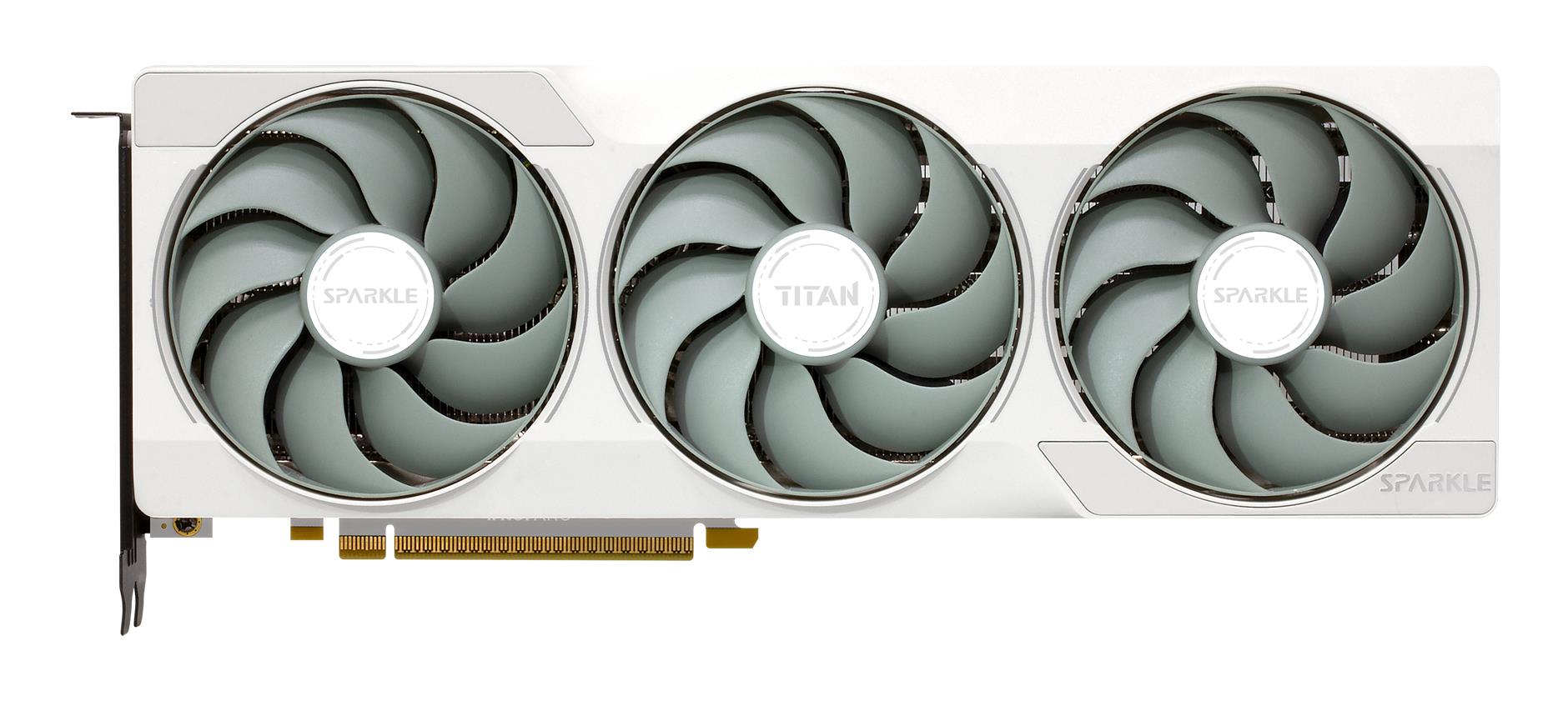

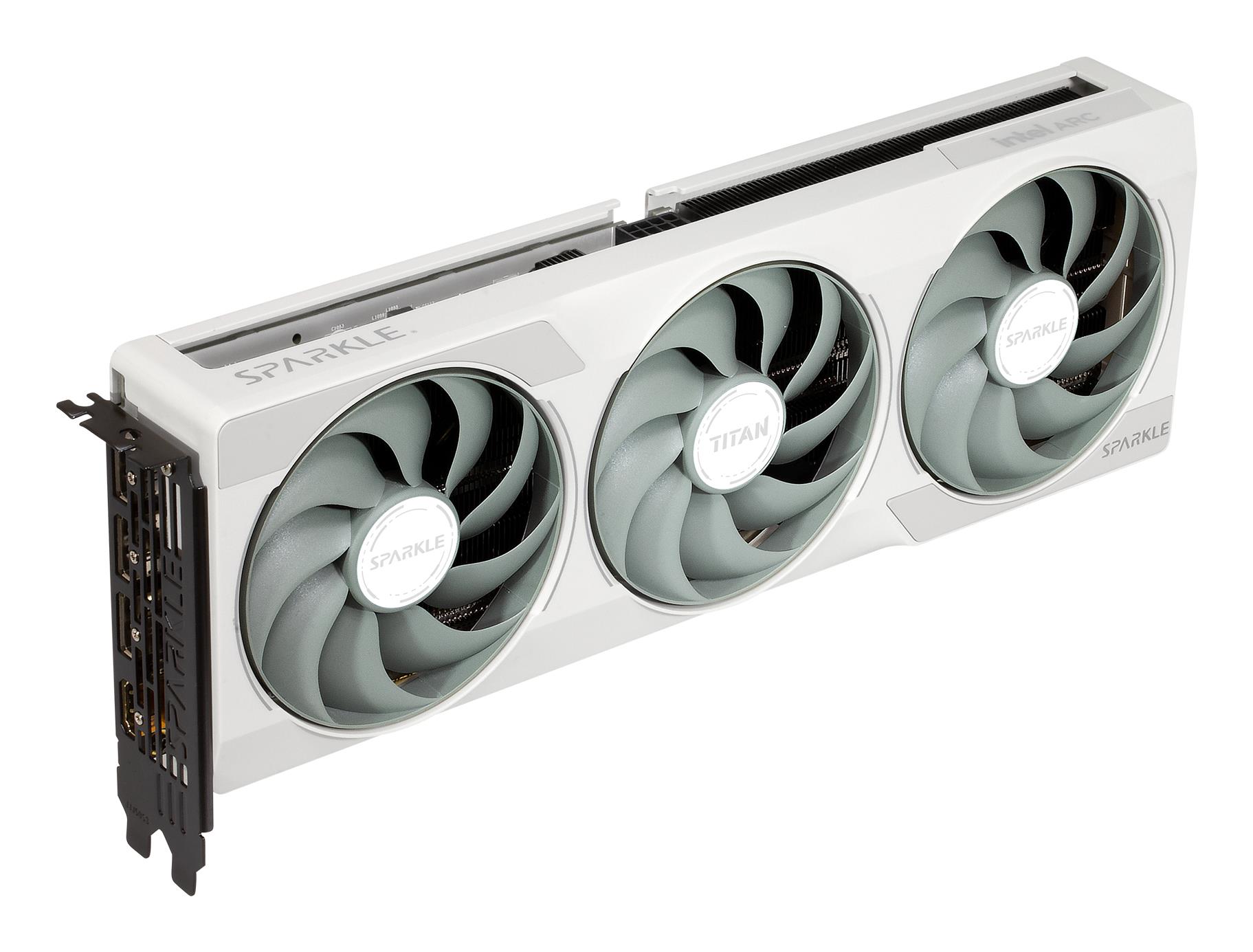

Graphics Card|SPARKLE|Intel Arc B580|12 GB|GDDR6|192 bit|PCIE 4.0 8x|Active|SB580TW-12GOC
SKU: SB580TW-12GOC
€ 320.75
Pieejams : 30 gab.
Intel
Graphics processor Arc B580
2740 MHz
Memory 12 GB
Graphics card memory type GDDR6
192 bit
PCI Express x8 4.0
1xHDMI
3xDisplay ports
Cooling type Active
Power consumption (typical) 200 W
-
Summary: Sparkle Technology Intel Arc B580 Luna OC. Graphics processor family: Intel, Graphics processor: Arc B580, Processor frequency: 2740 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
-
Category Code: VGP
-
Unit Box Height: 0.07
-
Unit Box Length: 0.39
-
Unit Box Width: 0.195
-
CUDA: No
-
Graphics processor: Arc B580
-
Graphics processor family: Intel
-
Maximum displays per videocard: 4
-
Maximum resolution: 7680 x 4320 pixels
-
Parallel processing technology support: Not supported
-
Processor frequency: 2740 MHz
-
Ray accelerators: 20
-
Discrete graphics card memory: 12 GB
-
Graphics card memory type: GDDR6
-
Memory bandwidth (max): 456 GB/s
-
Memory bus: 192 bit
-
DisplayPort version: 2.1
-
DisplayPorts quantity: 3
-
HDMI ports quantity: 1
-
HDMI version: 2.1
-
Interface type: PCI Express x8 4.0
-
DirectX version: 12 Ultimate
-
Dual Link DVI: No
-
Intel® Xe Matrix Extensions (Intel® XMX) Engines: 160
-
NPU performance up to: 233 TOPs
-
OpenCL version: 3.0
-
OpenGL version: 4.6
-
TV tuner integrated: No
-
Xe-cores: 20
-
Cooling type: Active
-
Number of fans: 3 fan(s)
-
Number of slots: 2.2
-
Minimum system power supply: 600 W
-
Power consumption (typical): 200 W
-
Power supply location: Top
-
Supplementary power connectors: 1x 8-pin
-
Minimum processor: 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
-
Minimum RAM: 8000 MB
-
Minimum system requirements: PCI-Express compliant MB with one x16 PCIe slot
-
Windows operating systems supported: Windows 10/Windows 11
-
Depth: 44 mm
-
Height: 117 mm
-
Length: 315 mm
-
Weight: 954 g
-
Package type: Box
-
HDMI: Yes
-
Model: SPARKLE Intel Arc B580 TITAN Luna OC
-
Unit Calculated Volume: 0.00663 cubm
-
Product Net Weight: 0.954 kg
-
Unit Calculated Weight: 1.71 kg
