Graphics Card|GIGABYTE|NVIDIA GeForce RTX 5060|8 GB|GDDR7|128 bit|PCIE 5.0 16x|GPU 2595 MHz|1xHDMI|3xDisplayPort|GV-N5060AEROOC-8GD

Summary: GIGABYTE GeForce RTX 5060 AERO OC 8G Graphics Card - 8GB GDDR7, 128bit, PCI-E 5.0, 2595 MHz Core Clock, 3 x DisplayPort, 1 x HDMI, GV-N5060AERO OC-8GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060, Processor frequency: 2595 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit, Memory clock speed: 28000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

Category Code: VGP

Unit Box Height: 0.081

Unit Box Length: 0.361

Unit Box Width: 0.187

CUDA: Yes

CUDA Cores: 3840

Graphics processor: GeForce RTX 5060

Graphics processor family: NVIDIA

Maximum displays per videocard: 4

Maximum resolution: 7680 x 4320 pixels

Parallel processing technology support: Not supported

Processor frequency: 2595 MHz

Data transfer rate: 28 Gbit/s

Discrete graphics card memory: 8 GB

Graphics card memory type: GDDR7

Memory bus: 128 bit

Memory clock speed: 28000 MHz

DisplayPort version: 2.1b

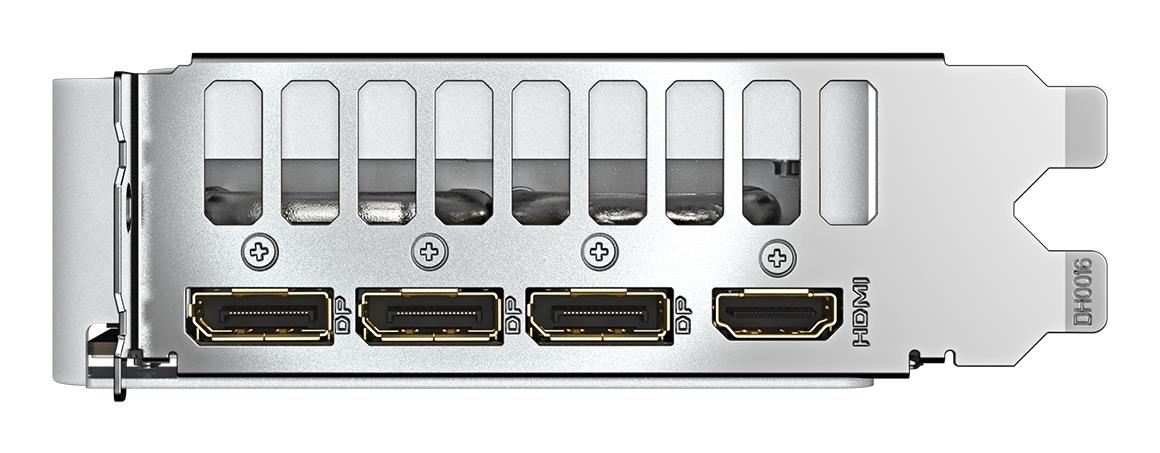

DisplayPorts quantity: 3

HDMI ports quantity: 1

HDMI version: 2.1b

Interface type: PCI Express 5.0

DirectX version: 12.0

Dual Link DVI: No

NVIDIA G-SYNC: Yes

OpenGL version: 4.6

Overclocked (OC) edition: Yes

TV tuner integrated: No

Warranty period: 3 year(s)

Cooling technology: GIGABYTE WINDFORCE 3X

Cooling type: Active

Form Factor: Full-Height/Full-Length (FH/FL)

Illumination: Yes

Illumination colour: Multi

Number of fans: 3 fan(s)

Number of slots: 2

Product colour: White

Minimum system power supply: 500 W

Supplementary power connectors: 1x 8-pin

Thermal Design Power (TDP): 109 W

Depth: 40 mm

Height: 117 mm

Length: 281 mm

Weight: 790 g

Package depth: 354 mm

Package height: 75 mm

Package type: Box

Package weight: 1140 g

Package width: 182.5 mm

Quick installation guide: Yes

Products per shipping (inner) case: 1 pc(s)

Model: GV-N5060AERO OC-8GD

Unit Calculated Volume: 0.0068825 cubm

Product Net Weight: 0.6 kg

Unit Calculated Weight: 1.285 kg
