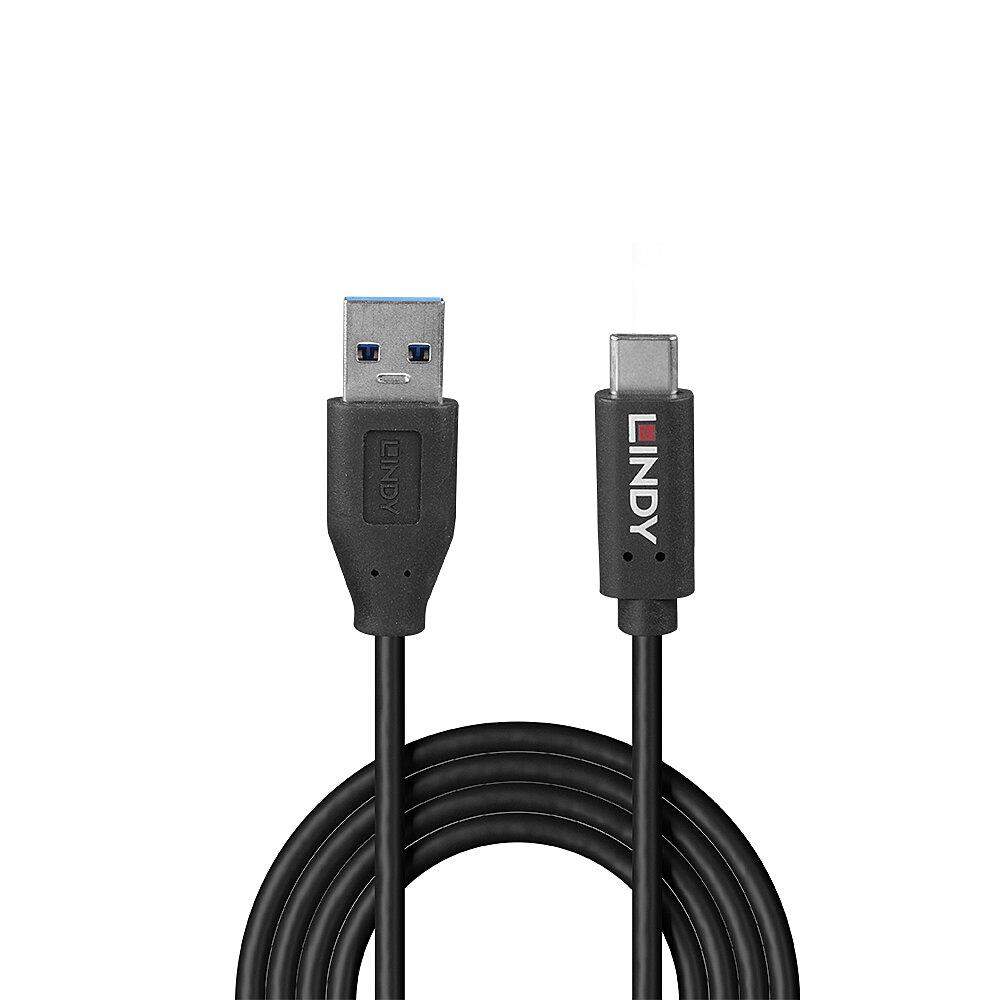

CABLE USB3.2 TYPE A TO C 0.5M/36970 LINDY

Summary: Lindy 36970. Cable length: 0.5 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 3.2 Gen 2 (3.1 Gen 2), Maximum data transfer rate: 10 Gbit/s, Connector contacts plating: Nickel, Product colour: Black

Category Code: UCB

Unit Box Height: 0.01

Unit Box Length: 0.145

Unit Box Width: 0.13

Bend radius (min): 45 mm

Cable diameter: 4.5 mm

Cable length: 0.5 m

Connector 1 dimensions (WxDxH): 28.1 x 16 x 9 mm

Connector 2 dimensions (WxDxH): 24.8 x 12 x 7.25 mm

AWG wire size: 24/32

Cable jacket material: Thermoplastic elastomer (TPE)

Cable type: Round cable

Conductor material: Copper

Connector 1: USB A

Connector 1 form factor: straight

Connector 1 gender: Male

Connector 2: USB C

Connector 2 form factor: straight

Connector 2 gender: Male

Connector contacts plating: Nickel

Connector shielding: Yes

Maximum data transfer rate: 10 Gbit/s

Nominal attenuation: 12. 2dB@5G, -18. 3dB@10G

Plug and Play: Yes

Product colour: Black

USB Power Delivery up to: 15 W

USB version: USB 3.2 Gen 2 (3.1 Gen 2)

Package type: Polybag

Quantity per pack: 1 pc(s)

Sustainability certificates: Global Recycled Standard (GRS)

Operating temperature (T-T): -10 - 60 °C

Storage temperature (T-T): -20 - 80 °C

Compliance certificates: REACH/RoHS/UL

Model: 36970

Model name: 36970

Unit Calculated Volume: 0.0001885 cubm

Unit Calculated Weight: 0.02 kg

Manufacturer: LINDY
